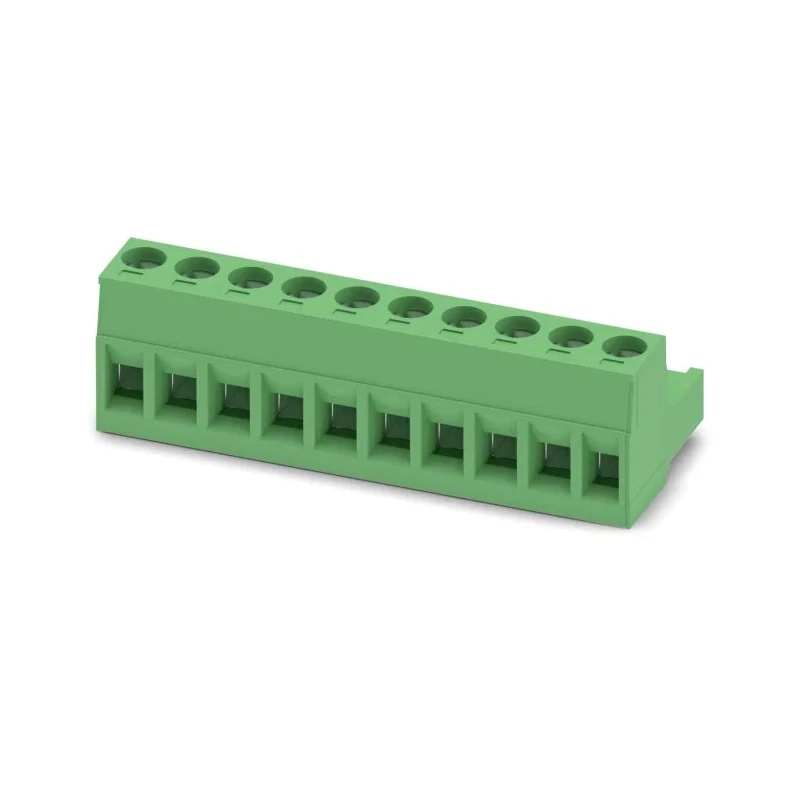

Phoenix Contact MSTB 2.5/10-ST Series Pluggable Terminal Block, 10-Contact, 5 mm Pitch, 12A Current, Polyamide 1754601

Phoenix Contact 1754601 MSTB 2.5/10-ST Series Pluggable Terminal Block is a high-quality electronic component designed to provide reliable screw connection for wires in a 10-contact configuration with a compact 5 mm pitch and single row layout. This component is engineered with a robust polyamide housing providing exceptional insulation and durability in demanding industrial environments.

The terminal block supports wire sizes from 0.2 mm² to 2.5 mm² and AWG sizes from 24 to 12. It is rated to carry a continuous current of up to 12A and withstands voltages as high as 320V, making it ideal for various electronic circuitry and control panels. Its straight orientation facilitates straightforward integration with PCBs and screw terminals.

Built with a unique dual steel spring mechanism, the terminal block ensures maximum contact force which results in superior low-temperature rise and prevents fluctuations in power and temperature, contributing to long term reliability and safe operation. The screw connection combined with the tension sleeve provides maximum wire retention and electrical safety.

This product’s precision design delivers a compact footprint measuring 45mm in width, 18.2mm in length, and 50mm in depth, allowing efficient space management in tight PCB layouts. The MSTB 2.5/10-ST series is part of Phoenix Contact’s renowned COMBICON range known for combining simplicity with excellent performance standards.

Industries such as manufacturing automation, control systems, and electronics production widely use this terminal block for establishing secure and maintainable electrical connections on PCBs, ensuring operational efficiency and system reliability.

The product features a durable polyamide housing for enhanced insulation and mechanical stability. Supports wire connections with a screw connection and tension sleeve method for secure electrical contact. Accepts wire sizes from 0.2 mm² to 2.5 mm² and AWG 24 to AWG 12 for versatile cabling options.

Designed with a straight orientation and single row for easy integration into panel or PCB assemblies. Provides a maximum voltage rating of 320V suitable for a variety of electrical applications. Its compact dimensions of 45mm width, 18.2mm length, and 50mm depth minimize PCB space usage.

Incorporates a high contact force and a dual steel spring for low temperature rise and enhanced electrical stability. Suitable for industrial, manufacturing, electronics, and automation system wiring and PCB terminal block applications.

Manufactured in Germany ensuring high quality and standard compliance. Explore more high-quality terminal blocks and connectors at EnvMart to optimize your electrical and electronic assembly needs.
