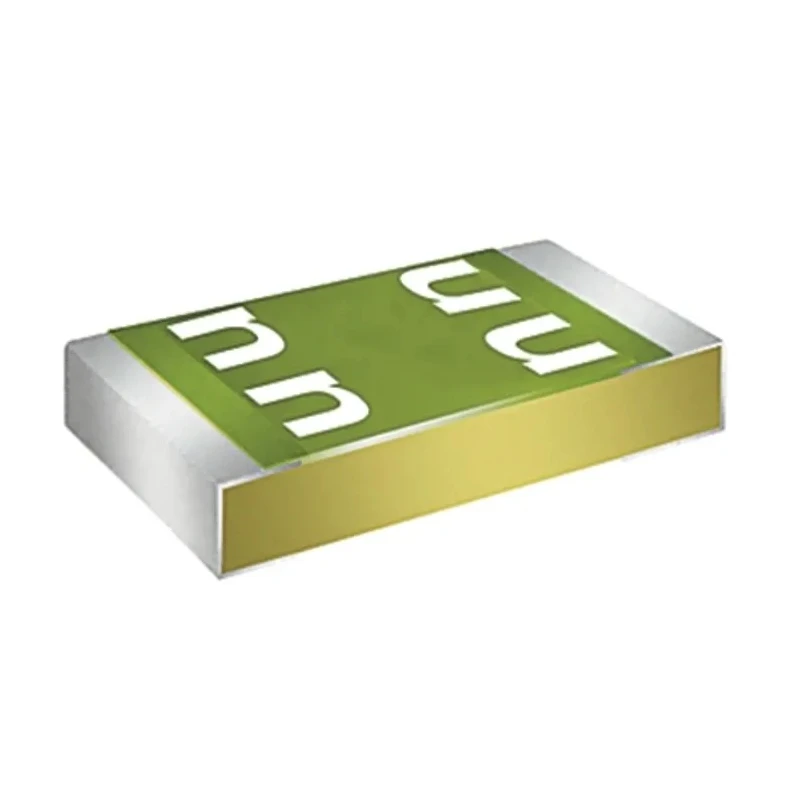

Schurter Non-Resettable Fuse 20A 63V DC Time Delay Epoxy Glass Body UST 1206 3413.0331.22

Schurter 3413.0331.22 Non-Resettable Fuse is a robust component designed for effective circuit protection in both DC and AC applications, rated for 20 amperes and 63 volts DC. The fuse features a time delay (slow blow) characteristic, making it suitable for circuits exposed to inrush currents such as LCD backlights and DC-AC inverters. Its epoxy glass body enhances electrical insulation and mechanical durability, housed in a compact 1206 surface mount package to save space in circuit assemblies.

This fuse meets rigorous industry standards including UL 248-14, CSA, REACH, RoHS, and CE certifications, ensuring compliance and safety in various industrial applications. It offers a high breaking capacity of 600A and can operate reliably within a temperature range from -55°C to 90°C, supporting demanding environmental conditions.

The terminal is constructed from tin plated copper, providing excellent electrical conductivity and solderability required in automated PCB assembly lines. Typical use cases include protection of high-value silicon ICs found in alarm systems, audio and visual equipment, computer boards, portable telephones, power supplies, and medical apparatus.

Packaged in reels of UST 1206 series fuses, this product is optimized for high-volume manufacturing. The fuse's resistance is specified at 2.7 milliohms, contributing to minimal energy loss in circuits. Originating from Switzerland, this Schurter fuse exemplifies reliable performance in electrical and automation industries.

Designed for secondary protection in DC and AC applications. Time delay fuse suitable for circuits with inrush currents. Epoxy glass body ensures durability and electrical insulation. Compact 1206 package size for space-saving surface mount technology.

Maximum operating temperature up to 90°C with minimum operating temperature -55°C. Breaking capacity of 600A for high fault current tolerance. Resistance rated at 2.7 milliohms to minimize power loss. Terminals made of tin plated copper for reliable connectivity.

Complies with UL 248-14, CSA, REACH, RoHS, and CE standards. Package type is reel, ideal for automated assembly processes.

This fuse is widely applicable in electrical, automation, industrial manufacturing, and commercial electronic products. Explore more Schurter fuses and circuit protection components at EnvMart for comprehensive solutions.
