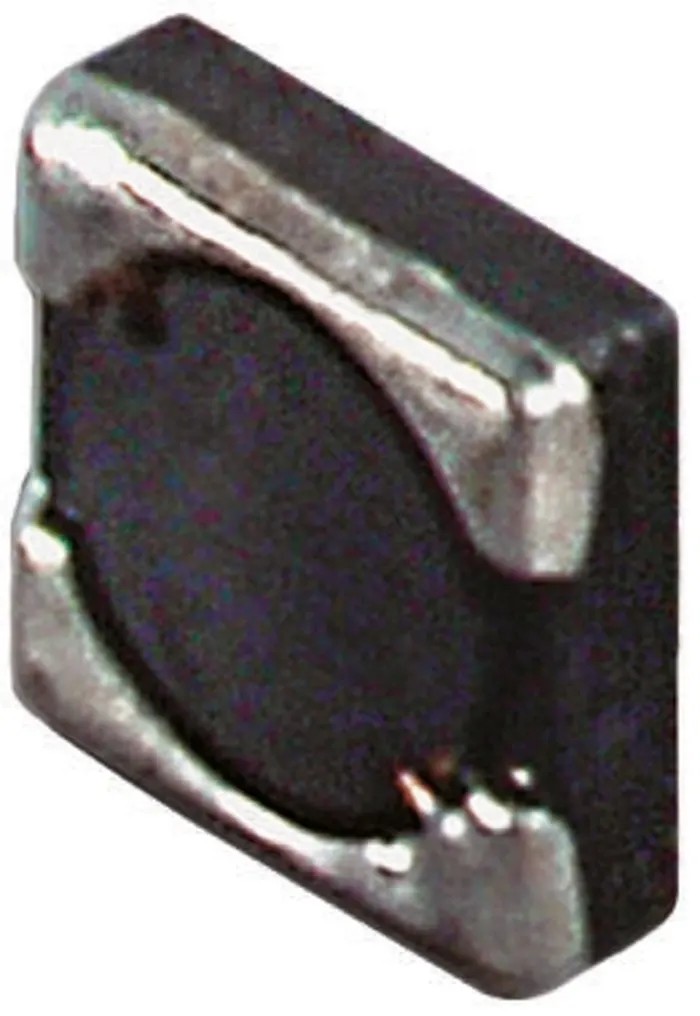

Wurth Elektronik Wirewound Surface Mount Inductor WE-TPC 5828, 8.2 μH ±30 %, 2.1 A IDC, Ferrite Core, Shielded 744053008

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Wirewound Surface Mount Inductor WE-TPC 5828, 8.2 μH ±30 %, 2.1 A IDC, Ferrite Core, Shielded 744053008

Name: Wurth Elektronik Wirewound Surface Mount Inductor WE-TPC 5828, 8.2 μH ±30 %, 2.1 A IDC, Ferrite Core, Shielded 744053008
Brand: Wurth Elektronik
SKU: 373115
Price: 1.14 USD
Availability: InStock



Category Surface Mount Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Operating Temperature	- 40 to +125°C
Height	5.8mm
Length	5.8mm
Depth	2.8mm
Packaging	Tape & Reel
Series	WE-TPC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	8.2μH
Package/Case	5828
Maximum DC Current	2.1A
Maximum DC Resistance	55mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	28MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200
Standards/ApprovalsIEC 60286-3	2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS
IEC 60286-3	2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS

Key Features

The inductor is shielded to reduce magnetic interference and improve circuit stability.
It has a maximum operating temperature of 125°C suitable for demanding applications.

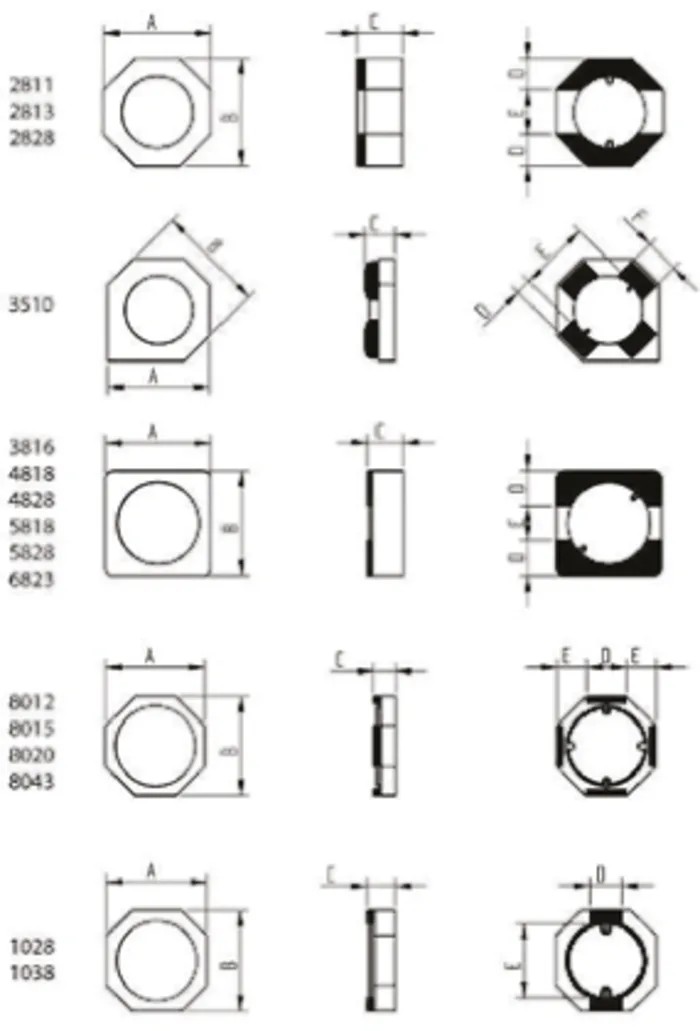

Package case size is 5828, with dimensions 5.8 mm by 5.8 mm by 2.8 mm.
Complies with automotive standard AEC-Q200 for quality assurance.
Offered in tape and reel packaging for efficient assembly.
Maximum DC resistance is 55 mΩ for minimal losses.
Maximum self-resonant frequency is 28 MHz, suitable for high-frequency circuits.
Core material is ferrite, providing reliable inductance and performance.

Product Description

Wurth Elektronik 744053008 WE-TPC 5828 is a high-performance wirewound surface mount inductor with a magnetically shielded ferrite core. It provides an inductance of 8.2 μH with ±30% tolerance and supports a maximum DC current of 2.1 A, making it ideal for portable power and embedded applications such as PDAs, digital cameras, and DC/DC converters.

This inductor features a compact 5.8 mm square footprint with a height of 2.8 mm, designed for surface mount technology with tape and reel packaging to streamline automated assembly processes.

The magnetic shielding lowers leakage fields to minimize interference with sensitive components. Its rated maximum operating temperature is 125°C, allowing use in demanding industrial and automotive environments conforming to AEC-Q200 standards.

With a maximum DC resistance of just 55 mΩ, the inductor delivers efficient current flow and minimal power loss. The maximum self-resonant frequency of 28 MHz ensures suitability for high-frequency electronic circuits commonly found in communication and power management devices.

This product complies with multiple international standards including IEC 60286-3:2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, and RoHS, ensuring reliability and environmental compliance.

The inductor is shielded to reduce magnetic interference and improve circuit stability. Compact package size aids high-density circuit board design. High current capability supports robust power delivery in embedded systems.

Wide operating temperature range from -40°C to 125°C. Standard compliance guarantees quality and performance consistency. Tape and reel packaging improves manufacturing efficiency. Ferrite core ensures stable inductance and low core losses.

Wirewound construction enhances durability and electrical characteristics.

This wirewound surface mount inductor is suitable for various industrial, automotive, laboratory, and commercial electronics applications. Browse the extant selection of inductors on EnvMart for matching and complementary components to support your project designs.
