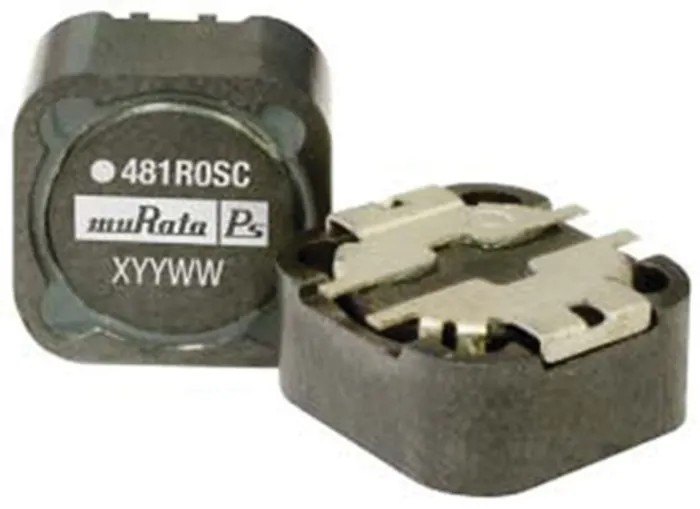

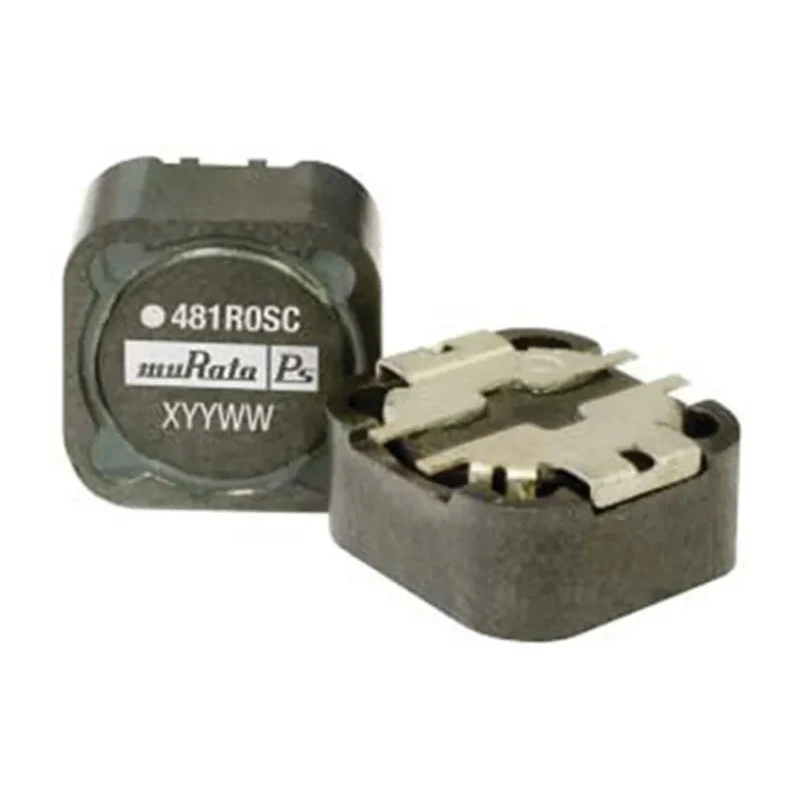

Murata Power Solutions 4800S Shielded Wirewound Surface Mount Inductor 10 μH ±20% 4.5 A Idc 48100SC

Murata Power Solutions 48100SC is a shielded wirewound surface mount inductor from the 4800S series designed for demanding power electronics applications. With an inductance of 10 μH and a tolerance of ±20%, this inductor provides precise inductive filtering and energy storage in switching power supplies and power line filter circuits.

The device supports a high maximum DC current of 4.5 A and is constructed with a ferrite shield to mitigate electromagnetic interference (EMI). Its wirewound, moulded construction ensures durability and stable performance under thermal and electrical stress.

This inductor's compact size, measuring 12.2 mm in length and depth with a 6 mm height, makes it ideal for space-constrained printed circuit boards using surface mount technology. It is terminated with solder for reliable PCB attachment and supplied in tape & reel packaging to optimize automated pick-and-place assembly processes.

Featuring a minimum quality factor (Q) of 32 and a maximum self resonant frequency of 20 MHz, the 48100SC supports efficient performance in high-frequency power electronics and filtering applications. The device operates across a temperature range from -40°C to 85°C, ensuring functionality in diverse industrial and commercial environments.

These inductors are RoHS compliant, facilitating environmentally responsible electronics manufacturing and end-product compliance. Provides 10 μH inductance with ±20% tolerance for precise circuit operation. Supports up to 4.5 A direct current for high load capacity.

Ferrite shielding reduces EMI in sensitive circuits. Compact surface mount package dimensions for space-limited designs. Reliable solder termination style for secure PCB mounting. Wide operating temperature range from -40°C to +85°C.

Low DC resistance of 28 mΩ enhances efficiency. High-quality factor (Q) of minimum 32 ensures low energy loss. Supplied in tape & reel packaging compatible with automated assembly.

Suitable for industrial, commercial, and power supply applications requiring stable inductors with high saturation current and low profile form factor. Explore more from Murata Power Solutions and other Surface Mount Inductors at EnvMart.
