| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Copper Nickel Silicon |
| Series | 56134 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Interfaces | lance system |
| For Use With | MicroClasp Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |

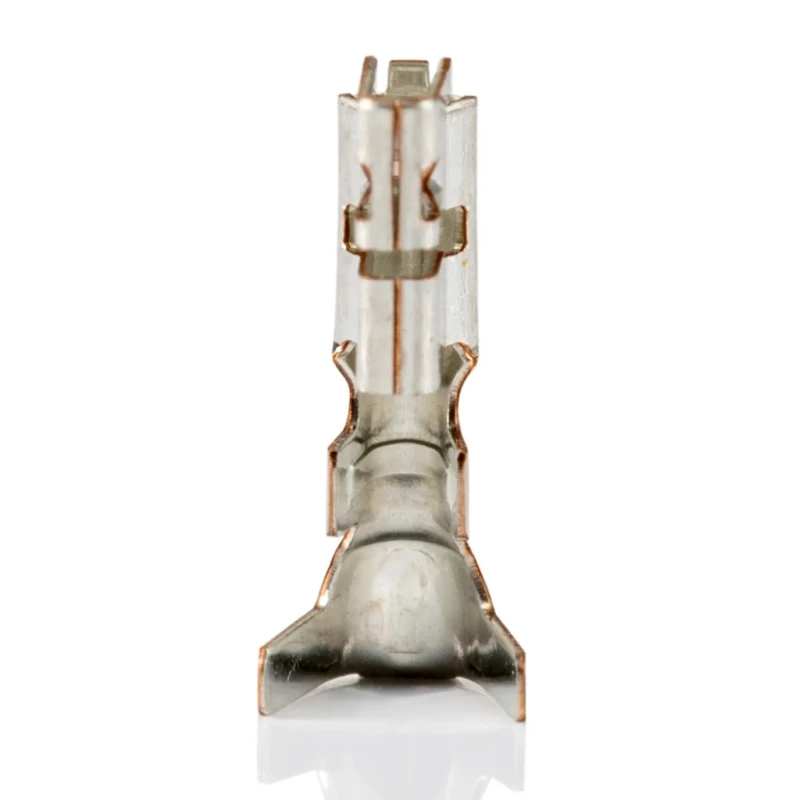

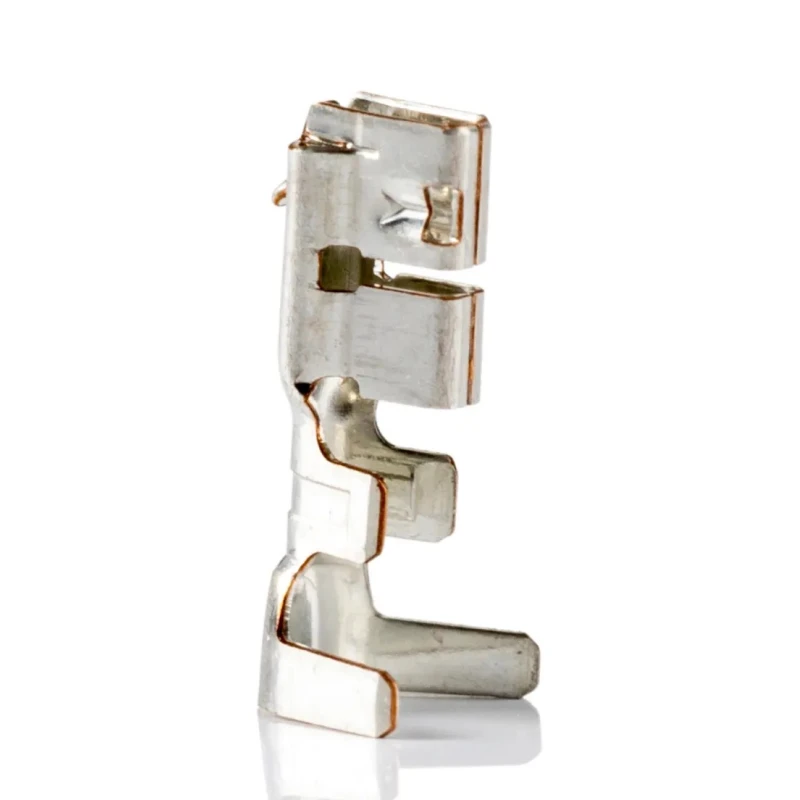

| Molex 56134 Series Female Crimp Terminal, 26 AWG Min Crimp, 22 AWG MaxBrand | Molex |
Molex 56134-9100 Female Crimp Terminal is specifically designed for use with MicroClasp Connector Housing in wire-to-board electronic applications. With a compact 2.00mm pitch and 3A current capacity, it suits dense PCB layouts requiring reliable electrical connections.
The terminal is manufactured using a robust copper nickel silicon alloy that withstands mechanical impact and corrosion, ensuring long-lasting performance even in harsh environments. Tin plating further enhances corrosion resistance, contributing to dependable circuit continuity. Designed for a maximum voltage of 250V AC/DC, this crimp terminal offers flexible application across various industrial electronics sectors.
Operating temperature ranges from -25°C up to 85°C allow this crimp terminal to perform well in diverse HVAC, machine building, and marine engineering applications. Its ultra-light weight of approximately 36mg minimizes stress on PCB substrates, beneficial in sensitive electronics manufacturing. The terminal features a lance system interface that provides secure mechanical retention when mated with MicroClasp series connectors, enhancing assembly integrity.
This product is delivered in packs of 100 pieces, making it an ideal choice for volume production or maintenance spares in automation, robotics, and industrial control systems. Its small pitch and positive lock design enable space-saving and secure mating with audible clicks for assembly verification.
The terminal facilitates machine building tasks requiring compact, durable, and high-quality connector contacts. Its application in robotics automation benefits from its low insertion force terminal design and secure retention features.
Marine engineering uses leverage the corrosion-resistant alloy and tin plating for reliability in corrosive environments. Explore more Crimp Terminals and electronic connectors within the trusted Molex range at EnvMart, your source for professional industrial components.
