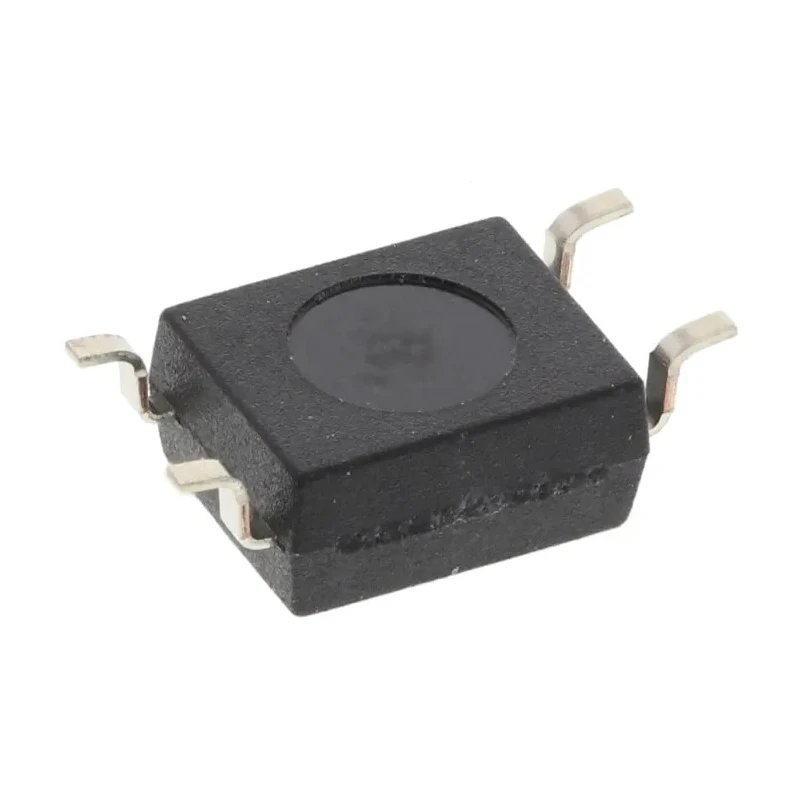

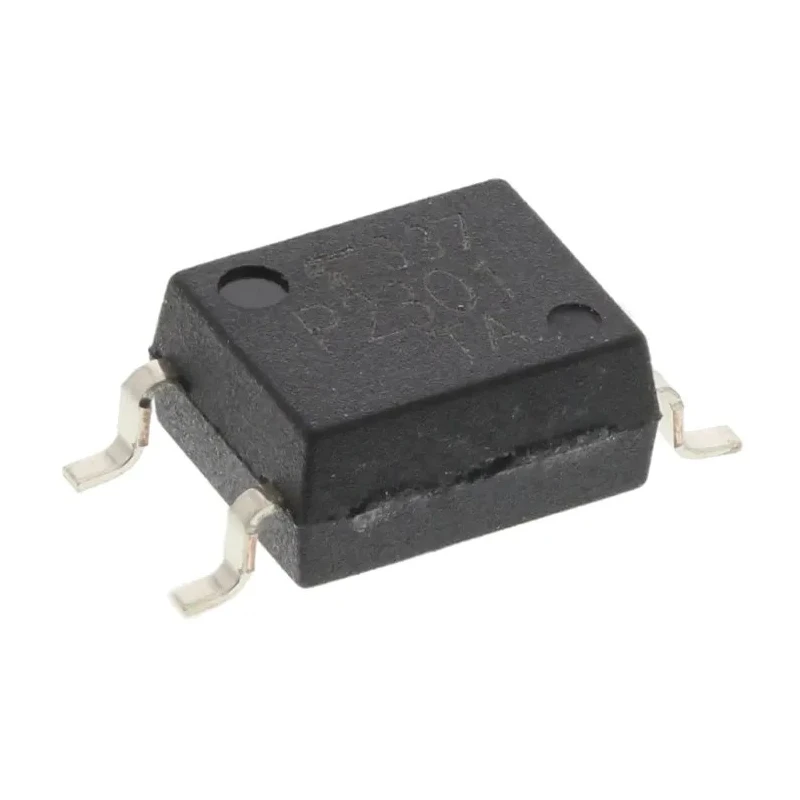

Toshiba DC Input Transistor Output Surface Mount Optocoupler 4-Pin SOIC TLP2301
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TLP2301 |
| Mount Type | Surface |
| Output type | Transistor |
| Series | TLP2301 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 15μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 8μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Surface mount type with a 4-pin SOIC package is suitable for compact PCB designs.
- Transistor output provides reliable signal transfer with high isolation voltage.
- Maximum forward voltage of 1.4V ensures low power loss during operation.
- Typical rise and fall times are 15μs and 8μs respectively, ensuring fast switching.
- Wide operating temperature range from -55°C to 125°C for durable performance in harsh environments.
- High isolation voltage rated at 3750Vrms for electrical safety and noise immunity.
- Maximum input current up to 50mA allows compatibility with various drive circuits.
- Current transfer ratio ranges from 50% minimum to 600% maximum for flexible application use.
Product Description
The Toshiba TLP2301 is a DC input optocoupler featuring a transistor output and surface mount 4-pin SOIC package, ideal for providing robust electrical isolation in electronic circuits. This component ensures reliable signal transmission across electrical barriers with an isolation voltage rated at 3750Vrms.
Operating over a wide temperature range from -55°C to 125°C, the TLP2301 is suitable for industrial, electronic component, and power connector applications exposed to varying environmental conditions. The device supports a maximum input current of 50mA with a typical forward voltage of 1.4V, enabling efficient switching performance.
The typical rise time of 15 microseconds and fall time of 8 microseconds ensure rapid response suitable for signal processing and control tasks. The current transfer ratio ranges from a minimum of 50% to a maximum of 600%, permitting flexible integration in diverse electronic designs.
Certified to meet various international standards - including cUL CSA No.5A, BSI BS EN60065:2002, SEMKO EN60065:2002, UL1577 (pending), and others - this optocoupler combines safety compliance with performance.
This optocoupler is commonly used in industrial machinery control systems, signal isolation in power supplies, and electronic interface circuits, contributing to improved safety and noise reduction in commercial and manufacturing environments.
Surface mount 4-pin SOIC package facilitates easy PCB assembly and compact design. High isolation voltage ensures efficient protection against electrical interference. Wide operating temperature range supports harsh industrial environments.
Fast switching speeds enable precise signal control and timing. Compliance with international safety standards ensures quality and reliability. Robust current transfer capability offers versatile application potential. Suitable for electronic, industrial, and power control systems.
Explore more Optocouplers and electronic components at EnvMart for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 50mA, allowing compatibility with various drive circuits.
The typical rise time of the TLP2301 is 15 microseconds, ensuring fast switching performance.
It has an isolation voltage rated at 3750Vrms, providing electrical safety and noise immunity.
The operating temperature range for this model is from -55°C to 125°C, making it suitable for harsh environments.
The TLP2301 features a 4-pin configuration, suitable for surface mount applications.
The current transfer ratio ranges from a minimum of 50% to a maximum of 600%, allowing flexible application use.
This model provides a transistor output, ensuring reliable signal transfer across electrical barriers.
The TLP2301 comes in a surface mount 4-pin SOIC package, facilitating compact PCB designs.
The typical fall time for this model is 8 microseconds, contributing to its fast switching capabilities.
This optocoupler is commonly used in industrial machinery control systems, signal isolation in power supplies, and electronic interface circuits.
The TLP2301 is certified to meet various international standards, including cUL CSA No.5A and UL1577 (pending).
The typical forward voltage for this model is 1.4V, ensuring low power loss during operation.
