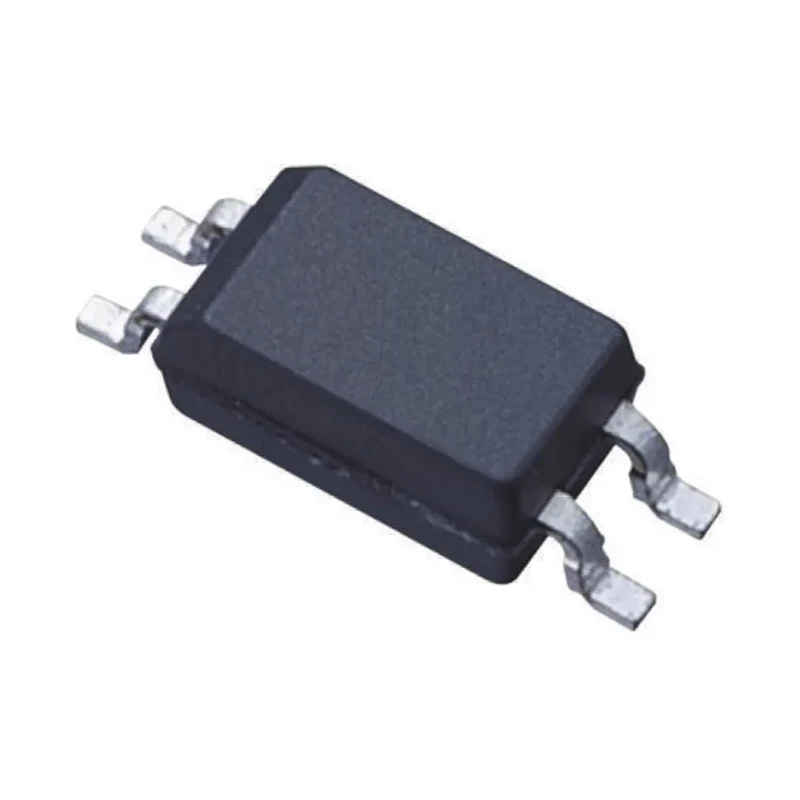

Toshiba AC Input Optocoupler, Surface Mount, 4-Pin SOIC Package TLP292(BL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TLP292(BL |
| Mount Type | Surface |
| Series | TLP |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, UL, EN |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | AC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 6% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 200% |
Key Features
- Designed for AC input current with maximum 50mA input rating.
- High isolation voltage of 3750 Vrms ensures safety in industrial applications.
- Standard SOIC package with 4 pins for easy surface mounting and integration.
- Maximum forward voltage of 1.4 volts for efficient operation.
- Operating temperature range from -55°C up to 125°C for robustness.
- Typical rise time of 2 microseconds allows quick response in switching.
- Current transfer ratio ranging from 6% minimum to 200% maximum ensures flexibility in signal transmission.
- Certified to CSA, UL, and EN standards for industrial safety compliance.
Product Description
Toshiba TLP292(BL AC Input Optocoupler is engineered to provide high-performance optical isolation using a Darlington transistor output within a 4-pin SOIC surface mount package. Operating efficiently with AC input currents up to 50mA, this optocoupler guarantees robust electrical isolation with an isolation voltage of 3750 Vrms, making it ideal for use in industrial electronic circuits requiring reliable signal transmission without electrical interference.
Designed for surface mounting, the compact SOIC package simplifies PCB layout and mass production processes, enhancing manufacturing efficiency. The device supports a wide operating temperature range from -55°C to 125°C, ensuring dependable operation in harsh environments including industrial automation, power supply isolation, and measurement instrumentation.
With a maximum forward voltage of 1.4 volts and fast switching speeds characterized by typical rise and fall times of 2μs and 3μs respectively, it maintains signal integrity during rapid switching cycles. The current transfer ratio varies between 6% and 200%, allowing flexibility in interfacing different circuit requirements.
Safety and reliability are underscored by compliance with international standards such as CSA, UL, and EN, affirming its suitability for demanding electronic component applications though it is not designed for automotive use.
AC input optocoupler with Darlington transistor output enhances signal isolation. High isolation voltage of 3750 Vrms for excellent electrical safety. Compact 4-pin SOIC package facilitates surface mounting and automated assembly.
Wide operating temperature range from -55°C to 125°C supports various application environments. Fast response times with 2μs rise and 3μs fall times enable efficient switching. Certified by CSA, UL, and EN standards ensuring industrial compliance.
This optocoupler is suited for industrial automation systems, power supply isolation, electronic instrumentation, and other electronics requiring effective electrical isolation with AC input compatibility.
Explore more Toshiba electronic components and Optocouplers at EnvMart for advanced circuit design solutions.
