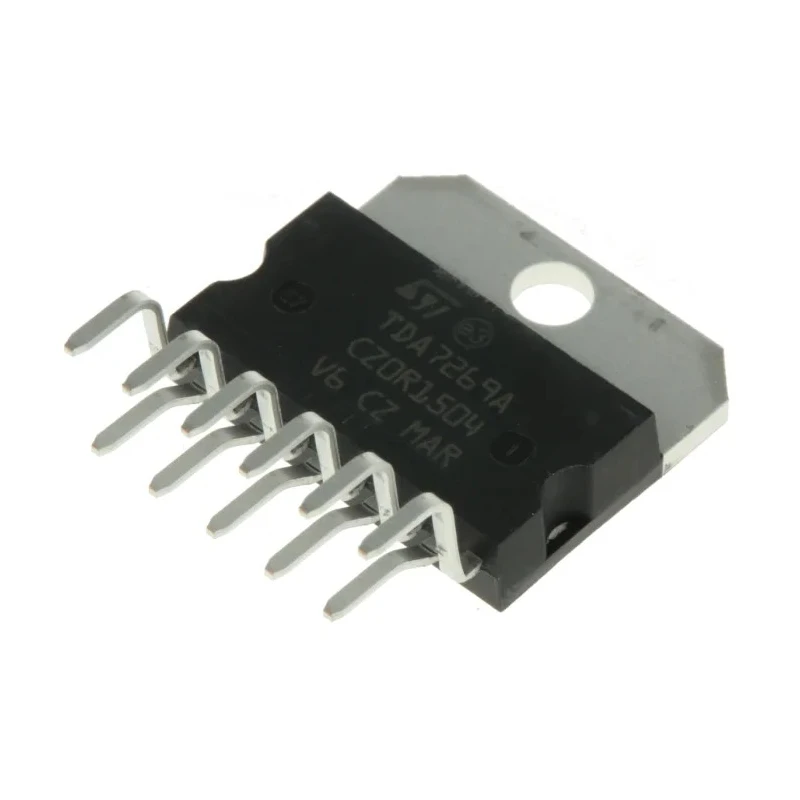

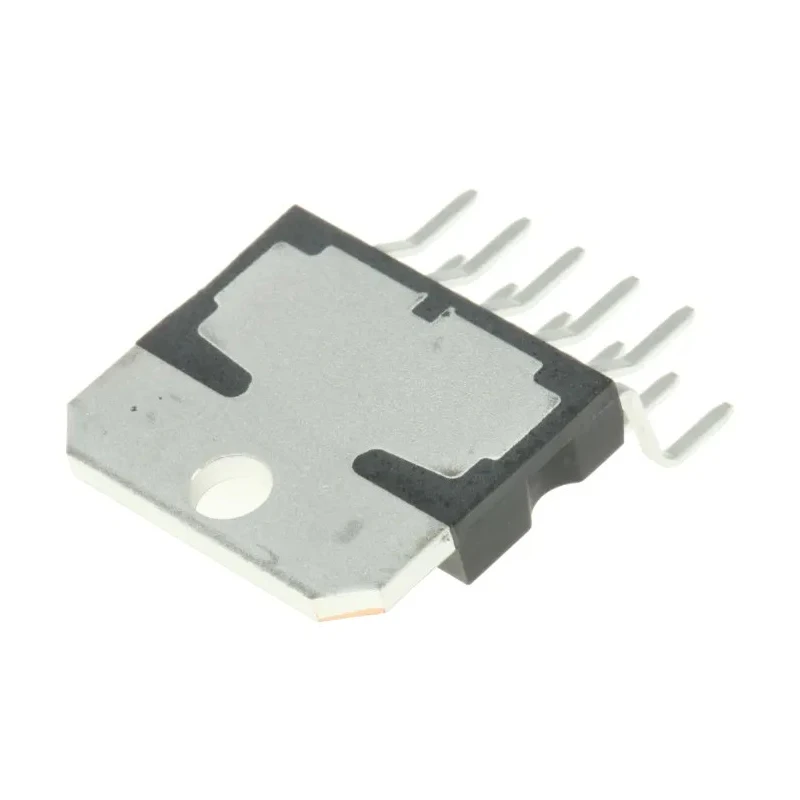

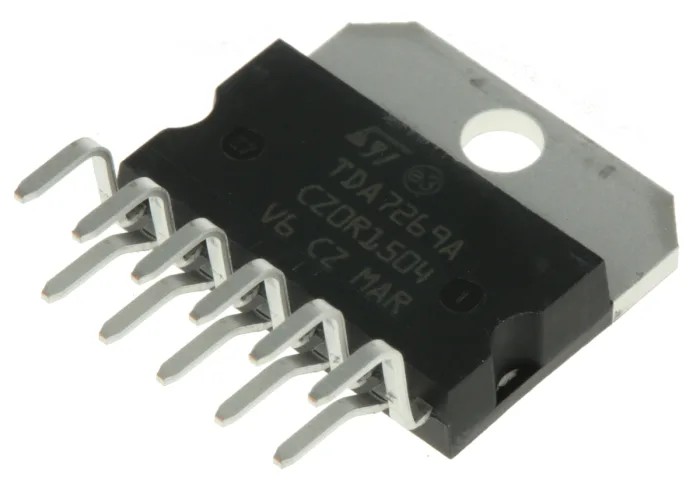

STMicroelectronics 2-Channel Audio Amplifier IC, 11-Pin Multiwatt, 14W Output, Class A-B, TDA7269A

The STMicroelectronics TDA7269A is a versatile 2-channel audio amplifier IC delivering 14 watts per channel in a compact 11-pin Multiwatt package. Designed as a Class A-B amplifier, it provides excellent audio performance with reduced distortion and high efficiency.

This device is well suited for applications including television audio systems, home speaker setups, and other audio amplification needs where reliable power and sound clarity are required. Its through-hole mounting package supports easy integration on printed circuit boards.

Operating over a supply voltage range of 9V to 18V and an industrial temperature range of 0°C to 70°C, the TDA7269A offers durability and stability in diverse operating conditions.

The amplifier’s compact size - measuring 19.7mm in length, 10.7mm in height, and 5mm in width - makes it ideal for consumer electronics and industrial audio applications where board space is limited.

This audio amplifier operates as a Class A-B amplifier, providing efficient and clear audio output. Suitable for use in televisions, speakers, and other audio electronic devices. Features a pin count of 11 pins and a Multiwatt package for through-hole mounting.

Accepts supply voltage between 9V minimum and 18V maximum, operating temperature range from 0°C to 70°C. Compact dimensions of 19.7mm length, 10.7mm height, and 5mm width for space-saving design. Designed for stereo and multi-channel audio applications requiring 14W output power.

Ideal for improving audio performance in consumer and industrial sound systems.

This product is part of STMicroelectronics’ range of audio Class-AB power amplifiers, known for their quality and reliability in sound amplification. It supports advanced industrial, consumer, and commercial audio electronics manufacturing requirements.
