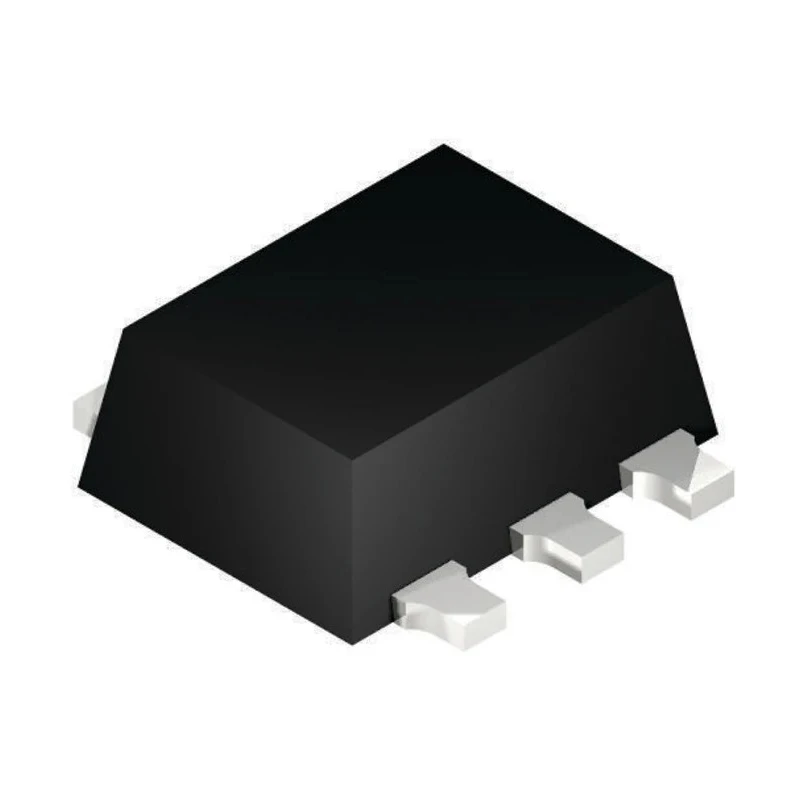

STMicroelectronics 5-Element Uni-Directional TVS Diode 30W 6-Pin SOT-666 ESDALC6V1-5P6

STMicroelectronics ESDALC6V1-5P6 is a high-performance 5-element uni-directional TVS diode array designed to protect electronic circuits from transient voltage spikes and electrostatic discharge (ESD) events. This device is engineered for surface mount applications in compact electronic assemblies with its 6-pin SOT-666 package, offering space-saving integration on PCBs.

With a peak pulse power dissipation rating of 30 W, it effectively clamps voltage surges to safe levels, protecting sensitive components. The diode array features a common anode configuration and uni-directional operation, making it suitable for circuits that require single-polarity surge protection.

The device sustains reliable performance across a wide temperature range, from -40°C to 125°C, supporting robust operation in harsh environments. Its electrical characteristics include a minimum breakdown voltage of 6.1 V, a clamping voltage of 14 V, and a maximum peak pulse current of 2.5 A, delivering solid transient suppression capabilities.

Dimensionally compact with a length of 1.7 mm, width of 1.3 mm, and height of 0.6 mm, this diode array fits well into dense electronic layouts. The maximum reverse stand-off voltage is 5 V, with a minimal reverse leakage current of 70 nA to ensure low standby power loss.

This diode array finds applications in industrial, automotive, communication, and consumer electronics sectors where efficient and reliable ESD protection is essential. It is ideal for protecting interfaces, data lines, and power lines from sudden voltage spikes caused by electrostatic discharge or switching transients.

Peak pulse power dissipation of 30 watts ensures strong surge handling. Common anode diode configuration with uni-directional transient voltage suppression. Operating temperature defined from -40°C to 125°C for wide environmental tolerance.

Compact SOT-666 surface-mount package with 6 pins suitable for space-constrained assemblies. Low leakage current of 70 nanoamps reduces power loss during normal operation. Clamping voltage of 14 volts protects downstream components effectively.

Maximum peak pulse current rated at 2.5 amperes enhancing reliability under transient stress. Suitable for industrial, automotive, communication, and consumer electronic designs. Explore the TVS Diode category on EnvMart for more high-quality transient voltage suppression components tailored to a multitude of industrial and electronic applications.
