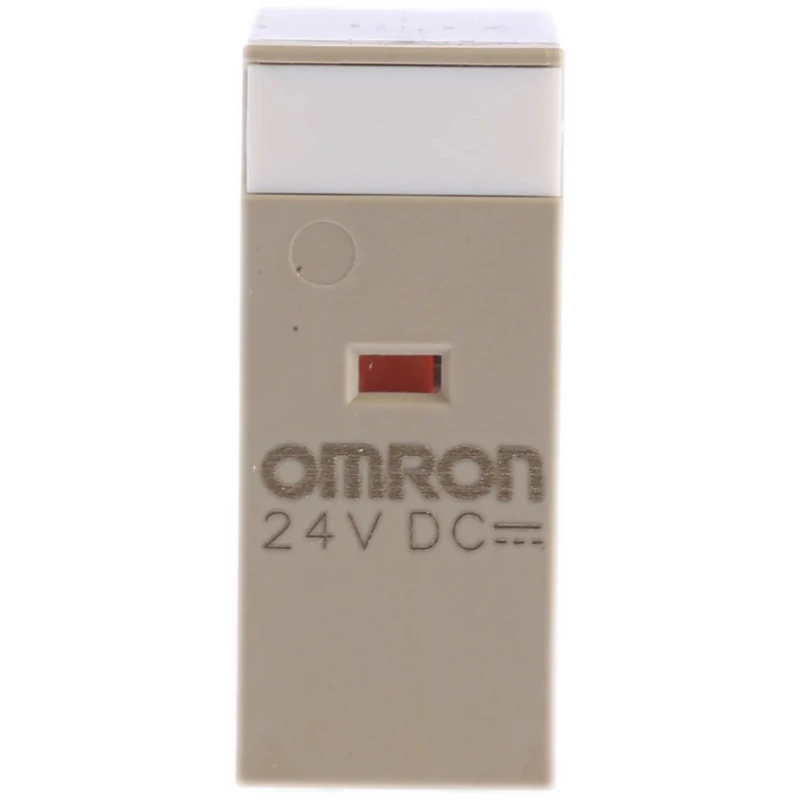

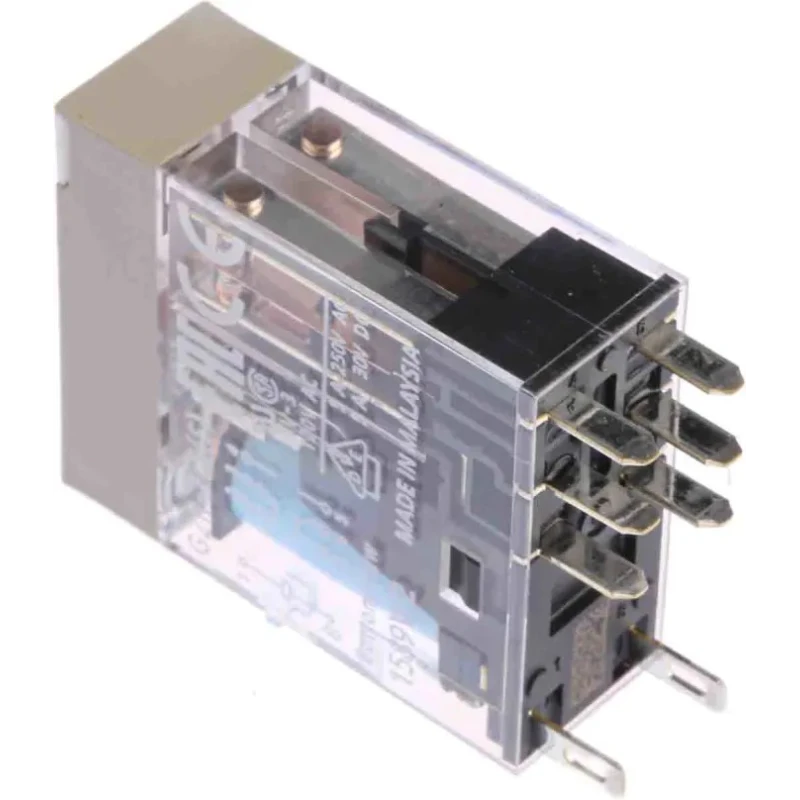

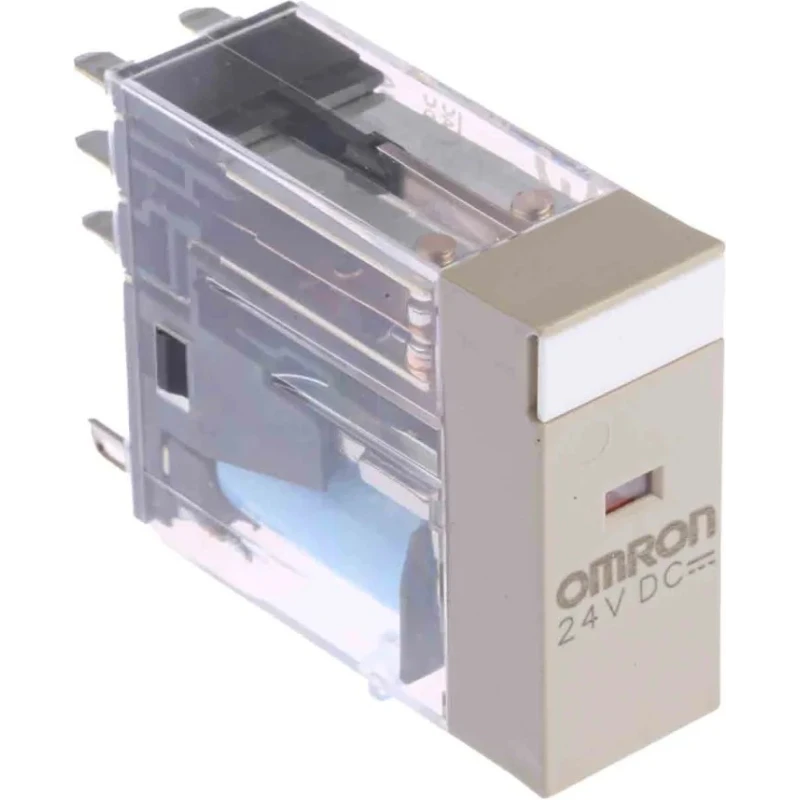

Omron PCB Power Relay, DPDT Contact Configuration, 24V DC Coil Voltage, 5A Switching Current, Silver Alloy G2R-2-S 24VDC (S)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 30.5mm |
| Model | G2R-2-S 24VDC (S) |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 43.5Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 300mW |
| Switching Power | 600mW |
Key Features
- DPDT contact configuration provides versatile switching capability.
- 24V DC coil voltage ensures efficient relay operation.
- Silver alloy contacts enhance durability and electrical conductivity.
- Plug-in mounting type allows easy PCB installation.
- Capable of switching 5A current suitable for a variety of applications.
- Operates reliably in temperatures ranging from -40°C to 55°C.
- Low coil power of 300mW for energy-efficient use.
- Ideal for PLC, electrical control panels, and industrial machinery applications.
Product Description
Omron G2R-2-S 24VDC (S) PCB Power Relay is designed to deliver reliable switching performance in demanding industrial, automation, and electrical control applications. This relay offers a double-pole double-throw (DPDT) contact configuration with a 24V DC coil voltage and a 5A switching current capacity.
The relay contacts are made with a silver alloy material, ensuring excellent durability and electrical conductivity for longer operational life. Its plug-in mounting type enables straightforward and secure installation on PCBs, streamlining the assembly process.
With a compact form factor measuring 30.5mm in length, 13mm in width, and 5.2mm in height, it fits easily into densely packed control panels or electronic devices. The coil power rating of only 300mW and coil resistance of 43.5Ω contribute to efficient power consumption.
The G2R series power relay is suitable for use over an extensive temperature range from -40°C minimum to 55°C maximum, making it robust against varying environmental conditions found in industrial and manufacturing settings.
Applications include programmable logic controllers (PLCs), automation systems, electrical control panels, and general industrial machinery. The relay supports switching voltages up to 125V DC and 440V AC with a switching power rating of 600mW, meeting industry standards including UL and CSA certifications.
DPDT contact configuration for flexible switching. 24V DC coil voltage for consistent actuation. Silver alloy contacts for superior reliability. Plug-in mounting design for easy integration. 5A switching current capacity for varied loads.
Wide operational temperature range (-40°C to 55°C). Energy efficient with 300mW coil power consumption. Compact dimensions suited for tight spaces. Complies with UL and CSA standards for safety assurance.
This product is manufactured in Malaysia, assuring quality and manufacturing standards. The Omron G2R-2-S 24VDC (S) power relay is a dependable component for electrical and automation engineers seeking a high-performance relay for their control system projects.
Explore further Omron relays and Power Relays in the Electronics & Electricals category on EnvMart to find complementary components and solutions for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double-pole double-throw (DPDT) contact configuration, providing versatile switching capabilities.
The coil voltage for the G2R-2-S 24VDC (S) is 24V DC, ensuring efficient relay operation.
It is capable of switching a current of up to 5A, suitable for a variety of applications.
This relay has a compact form factor with dimensions of 30.5mm in length, 13mm in width, and 5.2mm in height.
It supports a plug-in mounting type, allowing for easy installation on PCBs.
The G2R-2-S 24VDC (S) operates reliably within a temperature range of -40°C to 55°C.
The coil power rating is 300mW, contributing to its energy-efficient operation.
The contacts are made of silver alloy, which enhances durability and electrical conductivity.
It supports switching voltages up to 125V DC and 440V AC.
The relay complies with UL and CSA standards, ensuring safety and reliability in applications.
This model is suitable for use in programmable logic controllers (PLCs), automation systems, and electrical control panels.
The contact resistance is rated at 50mΩ, ensuring low power loss during operation.
