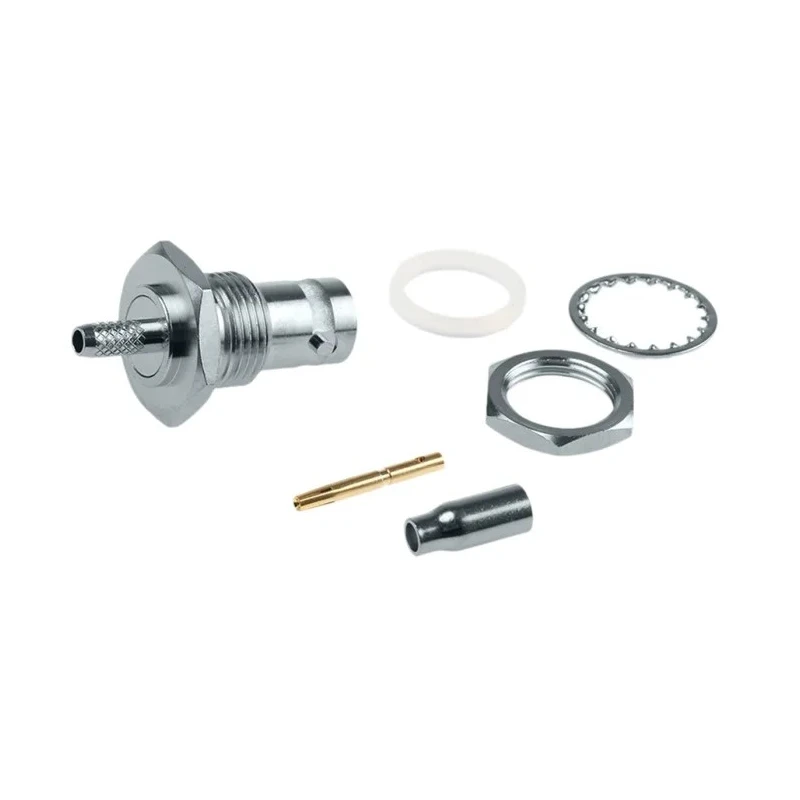

RS PRO Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Crimp 793-3594
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 793-3594 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 80°C |
| Cable Type | RG-174U |
| Minimum Operating Temperature | -20°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| RS PRO Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body CrimpBrand | RS PRO |
Key Features
- The connector features a nickel plated brass body and gold plated brass contact for reliable conductivity.
- It supports RG-174U coaxial cable and operates up to 4 GHz frequency.
- IP68 waterproof rating provides protection against gas and moisture ingress.
- Operating temperature range is from -20°C up to 80°C suitable for diverse environments.
- The crimp termination with normal polarity ensures secure and stable cable connection.
- Designed as a bulkhead mount for easy panel integration.
- Suitable for video signaling, RF applications, test equipment, and other electronic components.
- Manufactured with a Teflon insulator, rubber O-rings, and silicone gasket for environmental sealing.
Product Description
RS PRO 793-3594 Coaxial Connector Panel Mount Female BNC is a 50 Ohm impedance RF coaxial bulkhead crimp jack, engineered for robust and secure panel mounting.
It features a straight body design with a nickel plated brass connector body and gold plated brass contact, ensuring excellent conductivity and corrosion resistance. The connector is suitable for RG-174U type cables and supports a frequency range up to 4 GHz, making it ideal for a wide range of electronic and industrial RF communication applications.
This RS PRO BNC connector has been designed to meet IP68 waterproof standards. Its sealing system includes Teflon insulators, rubber O-rings, and silicone gaskets that protect the internal components against moisture, dust, and gas ingress, enhancing reliability even in harsh environments.
The operating temperature from -20°C to 80°C ensures functional stability in various climatic conditions. The crimp termination type and normal polarity contact provide a secure and permanent cable attachment for consistent signal performance.
Common applications include video signaling, test equipment connections, and general RF coaxial use in industrial, laboratory, and commercial environments. The bulkhead mount allows convenient integration into panels with a neat and flush finish.
The nickel plated brass body delivers durable corrosion resistance and strength. Gold plated brass contacts provide high conductivity and minimal signal loss. Teflon insulators and environmental seals ensure IP68 waterproof protection.
Compatible with RG-174U coaxial cable for high-frequency signal transmission. Straight body orientation for easy cable routing and panel mounting. Wide operating temperature range from -20°C up to 80°C suitable for industrial applications.
Crimp termination provides reliable and secure cable connection. Manufactured in Taiwan, Province Of China with RS PRO quality assurance. Explore the Electronics & Electricals category at EnvMart for more RS PRO connectors and coaxial components tailored for demanding industrial and technological applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, making it suitable for high-frequency applications.
This coaxial connector is compatible with RG-174U type cables, which are commonly used in RF applications.
The operating temperature range for this model is from -20°C to 80°C, allowing it to function in various environmental conditions.
The connector features a crimp termination type, ensuring a secure and stable cable connection.
The connector has a nickel plated brass body and gold plated brass contacts, providing excellent conductivity and corrosion resistance.
This connector has an IP68 waterproof rating, which protects against moisture, dust, and gas ingress.
This model is designed for panel mount installation, allowing for easy integration into panels.
The contact gender of this connector is female, which is standard for BNC connectors in RF applications.
The body orientation of this connector is straight, facilitating easy cable routing and panel mounting.
This connector is manufactured in Taiwan, Province Of China, ensuring quality assurance from RS PRO.
This connector is suitable for video signaling, RF applications, and connections in test equipment and other electronic components.
The impedance of this coaxial connector is 50Ω, which is typical for RF communication applications.
