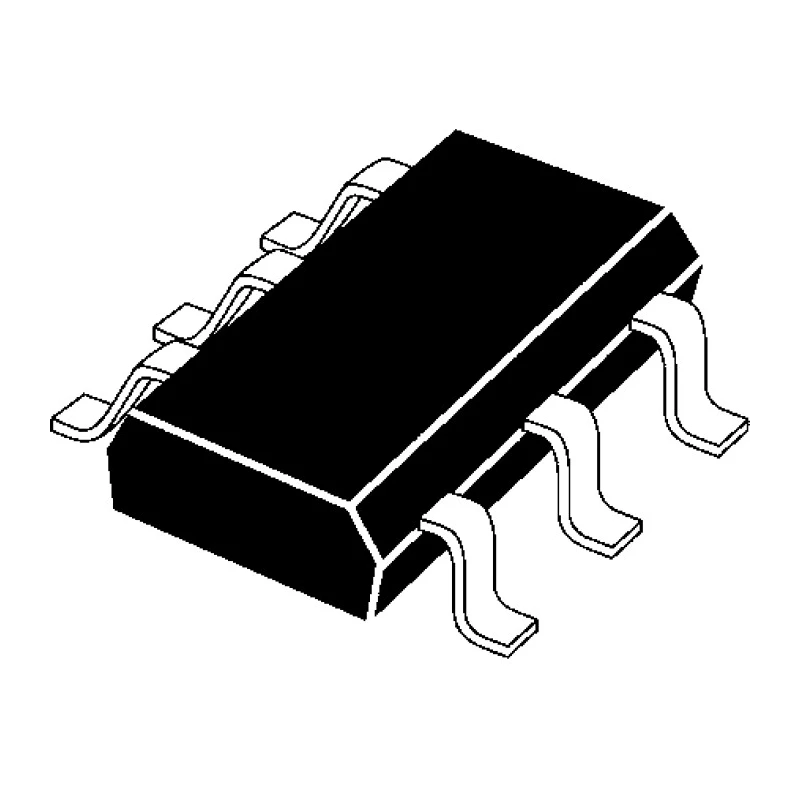

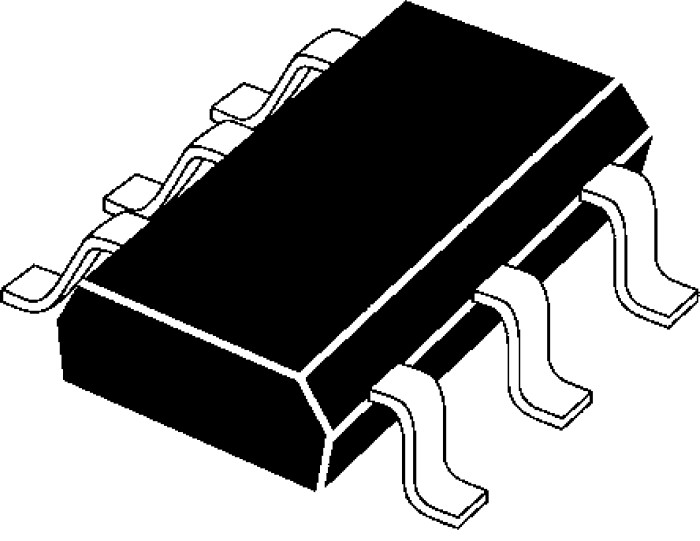

onsemi CAN Bus Terminator, 2-Bits, 6-Pin SC-88 Surface Mount, 5.25V, 10nA Supply Current NUF2221W1T2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.2mm |
| Model | NUF2221W1T2G |
| Mount Type | Surface |
| Termination Type | USB |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-88 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Minimum Supply Voltage | 5.25V |
| Supply Current | 10nA |
| Number of Bits | 2 |
Key Features
- Provides integrated EMI filtering and ESD protection in a compact SMT device.
- Designed for CAN bus line termination with 2 bits functionality.
- Surface mount package type SC-88 ensures easy PCB assembly.
- Wide operating temperature range from -55°C to 125°C for harsh environments.
- Low supply current of 10 nanoamps suitable for power-sensitive applications.
- 6 pins for reliable CAN bus termination connectivity.
- No automotive standard certification, suitable for general CAN bus applications.
Product Description
onsemi NUF2221W1T2G is a CAN Bus Terminator with 2-Bits functionality, housed in a 6-Pin SC-88 surface mount package. It operates at a supply voltage of 5.25V and features an ultra-low supply current of 10nA, making it highly efficient for low power embedded systems.
This device integrates EMI filtering and ESD protection with line termination, ideal for bus systems requiring stable signal integrity. The compact size of 2.2mm length and 1mm height allows minimal PCB footprint, making it suitable for dense electronic assemblies.
The product supports a wide temperature range from -55°C to 125°C, suitable for industrial, automotive, and commercial electronics environments requiring robust performance over varied conditions.
The surface mount SC-88 package with 6 pins ensures reliable connectivity and easy manufacturing integration. While it does not meet specific automotive standards, it is well-suited for general CAN bus network termination and line stabilization.
Provides integrated EMI filtering and ESD protection in a compact SMT device. Designed for CAN bus line termination with 2 bits functionality. Surface mount package type SC-88 ensures easy PCB assembly. Wide operating temperature range from -55°C to 125°C for harsh environments.
Compact physical dimensions: 2.2mm length and 1mm height. Low supply current of 10 nanoamps suitable for power-sensitive applications. 6 pins for reliable CAN bus termination connectivity. No automotive standard certification, suitable for general CAN bus applications.
This CAN Bus Terminator is widely used in industrial control systems, automotive electronics, data communication networks, and embedded system applications to ensure proper signal termination and reduce interference.
Explore more on CAN Bus Terminators and related semiconductor interface ICs on EnvMart to find compatible components for your design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a minimum supply voltage of 5.25V.
It features an ultra-low supply current of 10 nanoamps, making it suitable for power-sensitive applications.
The device supports a wide operating temperature range from -55°C to 125°C, suitable for harsh environments.
The SC-88 package contains 6 pins for reliable CAN bus termination connectivity.
It has a length of 2.2mm and a height of 1mm, allowing for a minimal PCB footprint.
This model is housed in a surface mount SC-88 package, which facilitates easy PCB assembly.
It is designed for CAN bus line termination with 2 bits functionality and integrates EMI filtering and ESD protection.
No, it does not meet specific automotive standards but is suitable for general CAN bus applications.
It is widely used in industrial control systems, automotive electronics, data communication networks, and embedded systems.
The termination type is USB, ensuring compatibility with various bus systems.
The integrated EMI filtering helps maintain stable signal integrity in bus systems, reducing interference.
The country of origin for this product is India.
