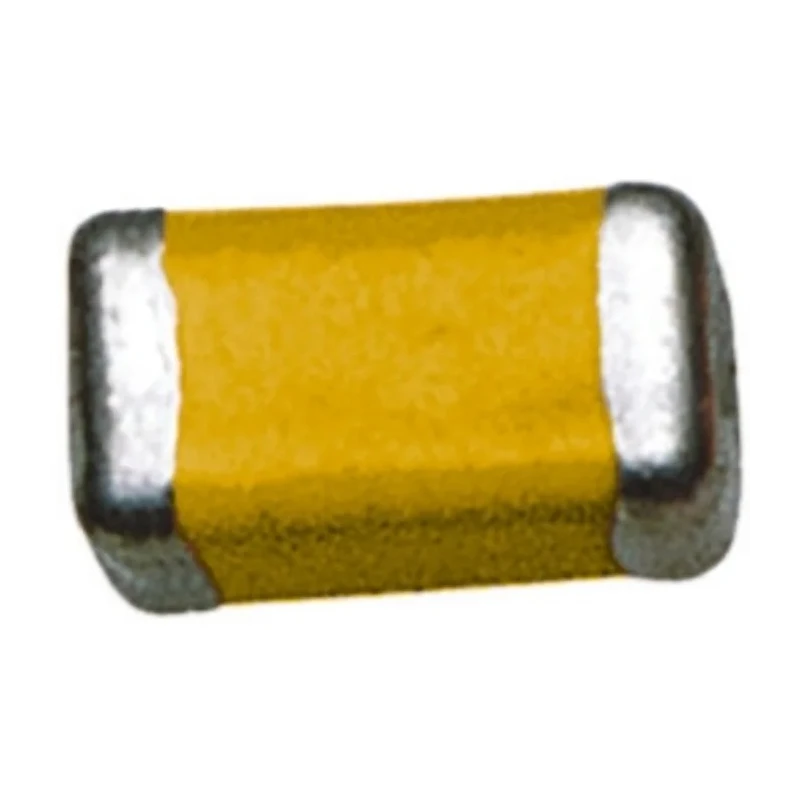

TDK Multilayer Ceramic Capacitor 220nF 50V DC ±10% Surface Mount 0603 Package CGA3E3X7R1H224K080AB

Free Delivery in India | Lowest Global Shipping Charges

TDK Multilayer Ceramic Capacitor 220nF 50V DC ±10% Surface Mount 0603 Package CGA3E3X7R1H224K080AB



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E3X7R1H224K080AB
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	220nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0603
Dielectric	X7R
Automotive Standard	AEC-Q200

Key Features

Constructed with X7R dielectric for reliable temperature stability.
Package size is 0603, designed for surface-mount applications.
Features low Equivalent Series Inductance (ESL) for improved performance.
Qualified to automotive standard AEC-Q200 ensuring high reliability.
Designed for operation between -55°C and 125°C temperature range.
Termination is surface mount type suitable for automated assembly.
RoHS compliant ensuring environmental safety standards.
Ideal for automotive electronics including sensor modules and engine control units.

Product Description

TDK CGA3E3X7R1H224K080AB is a high-quality multilayer ceramic capacitor, offering 220nF capacitance with a 50V DC voltage rating and ±10% tolerance. It features the X7R dielectric material which provides excellent temperature stability, supporting a wide operating temperature range of -55°C to 125°C. This capacitor is designed with a compact 0603 package size measuring 1.6mm length, 0.8mm width and height, optimized for surface mount technology (SMT) on printed circuit boards.

Engineered to meet the stringent automotive standard AEC-Q200, these capacitors deliver high reliability and performance in demanding environments. The design incorporates low Equivalent Series Inductance (ESL) and low Equivalent Series Resistance (ESR) to minimize self-heating and enable high ripple current resistance. The surface mount termination allows for efficient, precise placement and soldering in automated manufacturing processes.

This capacitor is RoHS compliant and suitable for various industrial applications, especially in automotive electronics such as battery line smoothing, sensor modules, engine control units, anti-lock brake systems, infotainment, smart meters, smart grids, solar inverters, and AC-DC battery chargers. The tape and reel packaging facilitates high-volume assembly and production efficiency.

Constructed with high-reliability X7R dielectric for stable performance. Compact 0603 package ideal for space-constrained PCBs. Adheres to automotive AEC-Q200 standard for durability. Designed for surface mount with low ESR and low ESL characteristics.

Wide operating temperature suited for automotive and industrial applications. RoHS compliant meeting environmental regulations. Applications include automotive electronics, smart meters, and power conversion devices. Tape and reel packaging supports automated assembly lines.
