TDK 2.2 nF Multilayer Ceramic Capacitor, 50V DC, ±5 % Tolerance, Surface Mount 0603 Case C Series C1608C0G1H222J080AA

Free Delivery in India | Lowest Global Shipping Charges

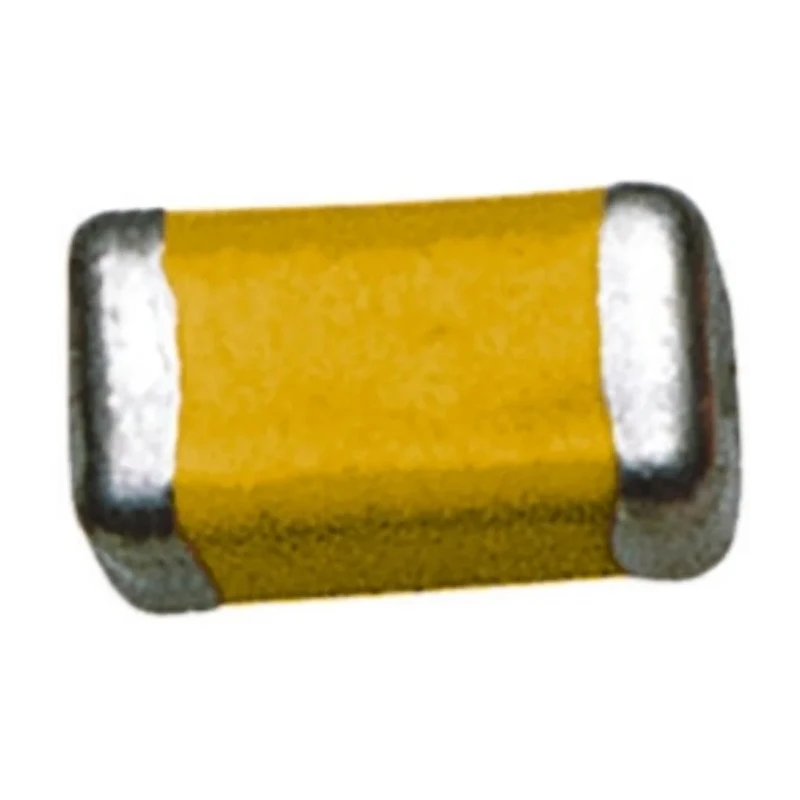

TDK 2.2 nF Multilayer Ceramic Capacitor, 50V DC, ±5 % Tolerance, Surface Mount 0603 Case C Series C1608C0G1H222J080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	C1608C0G1H222J080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	C
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	2.2nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0603
Dielectric	C0G
KEMET 2.2 nF Multilayer Ceramic Capacitor, 50V dc, ±5 %, SurfaceBrand	KEMET
Murata 2.2 nF Multilayer Ceramic Capacitor, 50V dc, ±5 %, SurfaceBrand	Murata

Key Features

High capacitance enabled by precision multiple thin ceramic dielectric layers.
Monolithic structure ensures superior mechanical strength and reliability.
Low Equivalent Series Inductance (ESL) with excellent frequency characteristics.
Low self-heating with high ripple resistance due to low ESR.
Surface mount 0603 package suitable for automated assembly.
Operating temperature range from -55°C to 125°C for versatile usage.
RoHS compliant and professional grade suitable for commercial applications.
Ideal for power supply circuits, mobile communication, and general electronic equipment.

Product Description

TDK C1608C0G1H222J080AA Multilayer Ceramic Capacitor is a surface mount passive component designed with a 0603 package size and capacitance of 2.2 nF. Rated for 50 volts DC with a tolerance of ±5 %, it belongs to the C series with a C0G dielectric known for its stability and low loss characteristics.

This capacitor utilizes precision technologies that allow the use of multiple thinner ceramic dielectric layers, resulting in high capacitance in a compact form factor. The monolithic construction ensures exceptional mechanical strength and reliable performance under mechanical stress.

Low Equivalent Series Inductance (ESL) and Equivalent Series Resistance (ESR) contribute to excellent frequency response and low self-heating, making this capacitor suitable for high-frequency circuits and power supply applications. Its operating temperature range from -55°C to 125°C broadens its usability in various industrial, commercial, and electronic systems.

The product is supplied in tape and reel packaging for compatibility with automated surface mount technology (SMT) assembly lines, enhancing manufacturing efficiency.

Typical applications include mobile communication equipment, power supply circuits, office automation devices, TVs, LED displays, servers, PCs, notebooks, and tablets. The capacitor meets RoHS requirements ensuring it is environmentally compliant.

High capacitance through multiple thin ceramic dielectric layers. Superior mechanical strength due to monolithic construction. Low ESL and ESR support high frequency and ripple current applications. Wide operating temperature range of -55°C to 125°C.

Compact 0603 surface mount package with 0.8mm height and width. Suitable for automated assembly with tape and reel packaging. RoHS compliant product ensuring environmental safety. Used in commercial-grade electronic equipment and communication devices.

Choose TDK capacitors for reliable performance in demanding electronic designs. Explore more products and technical support in the Electronics Components category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a capacitance value of 2.2 nF.

It is rated for a voltage of 50V DC.

The capacitor has a length of 1.6 mm, a width of 0.8 mm, and a height of 0.8 mm.

The operating temperature range is from -55°C to 125°C.

It uses a C0G dielectric, known for its stability and low loss characteristics.

It is supplied in tape and reel packaging, which is suitable for automated surface mount technology (SMT) assembly lines.

The tolerance of this model is ±5 %.

Key features include low Equivalent Series Inductance (ESL), low Equivalent Series Resistance (ESR), and a monolithic structure for superior mechanical strength.

Yes, this capacitor meets RoHS requirements, ensuring it is environmentally compliant.

Typical applications include mobile communication equipment, power supply circuits, and general electronic equipment.

The termination type is surface mount, making it suitable for various electronic applications.

The country of origin for this capacitor is India.
