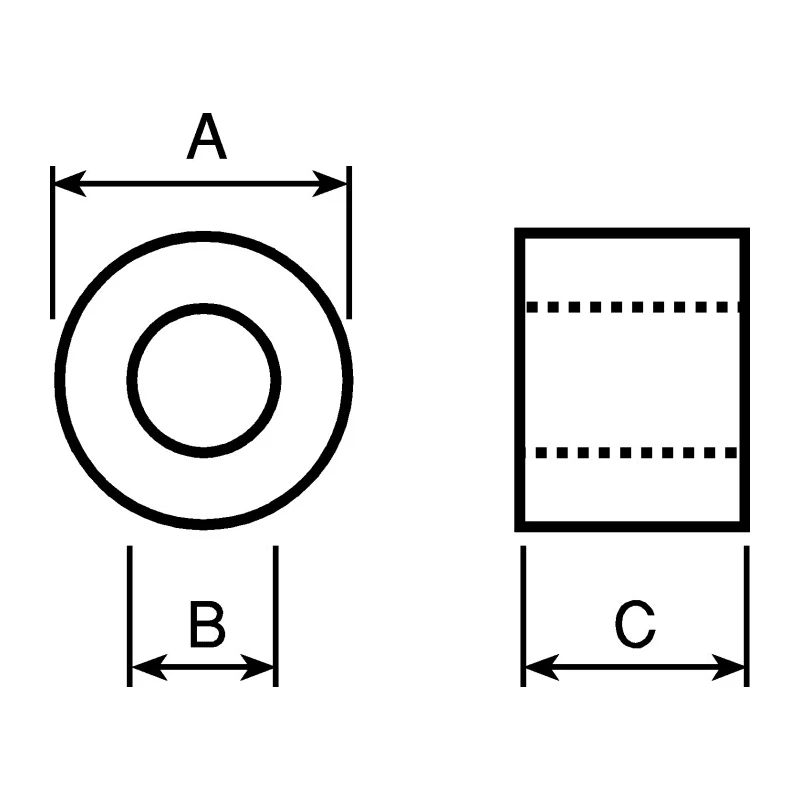

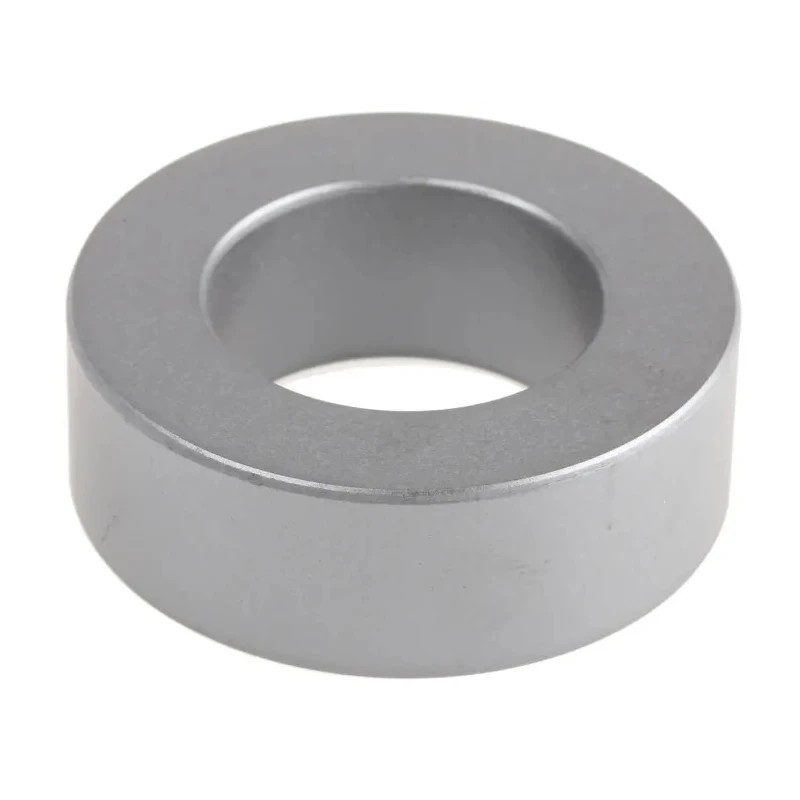

Wurth Elektronik Ferrite Ring Toroid Core 20 mm Height, 35.5 mm Inside Diameter, EMI Suppression 25-100 MHz 74270191
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Material | 4W620 |
| Height | 20mm |
| Model | 74270191 |
| Series | WE-TOF |
| Outside diameter | 20mm |
| Sub Type | Toroid Core |
| Inside Diameter | 35.5mm |
| Standards/Approvals | RoHS, REACH |
| Maximum Frequency | 100MHz |
| Minimum Frequency | 25MHz |
| KEMET Ferrite Ring Toroid Core, For | Consumer Electronics, 61 x 32.4 x 24mmBrand: KEMET |
| TDK Ferrite Ring Ferrite Core 18.8 mm, For | Transformer, Choke, Broadband Transformer, Pulse, Mixer 39.2 mm ID 60.1 mmBrand: TDK |
| FERROXCUBE Ferrite Ring Ring Core, For | Interference Suppression Coil, Pulse and Wide Band Transformers, 51.05 x 31.5 xBrand: FERROXCUBE |
| Wurth Elektronik Ferrite Ring Toroid Core 12.7 mm, For | EMI Suppression 35.5 mm ID 61 mm ODBrand: Wurth Elektronik |
| Wurth Elektronik Ferrite Ring Toroid Core 20 mm, For | EMI Suppression 35.5 mm ID 20 mm OD |
Key Features
- The ferrite ring core operates effectively within the 25 MHz to 100 MHz frequency range.
- Made of high-permeability 4W620 ferrite material that reduces electromagnetic interference.
- Toroid geometry allows efficient choke formation for EMI filtering.
- Ideal for through-hole mounting where conductors pass through the toroidal aperture.
- Complies with RoHS and REACH standards ensuring environmentally safe materials.
- Suitable for use in consumer electronics, cable harnesses, and high-frequency signal lines.
- Manufactured under the WE-TOF series for reliable performance.
Product Description
Wurth Elektronik 74270191 Ferrite Ring Toroid Core, measuring 20 mm in height and 35.5 mm inside diameter, is engineered specifically for electromagnetic interference (EMI) suppression across the 25 MHz to 100 MHz frequency band. Constructed from high-quality 4W620 ferrite material, this toroidal core efficiently reduces common-mode noise and improves signal integrity.
The toroid design facilitates a choke formation that is both compact and effective in multiple circuit board applications. Its through-hole mounting format allows conductors to be threaded through the aperture, making it suitable for cable harnesses and various EMI filtering use cases in consumer electronics and industrial equipment.
This component complies with RoHS and REACH standards, ensuring it meets rigorous environmental and material safety regulations. As part of the WE-TOF series, it is a trusted choice for designers requiring reliable EMI suppression in high-frequency circuits.
Operates across 25 MHz to 100 MHz frequency range for effective EMI attenuation. Fabricated from 4W620 ferrite material providing high permeability and EMI damping. Toroid core geometry enables efficient choke components for signal lines.
Through-hole mounting ideal for axial placements in cable assemblies or PCBs. Compliant with RoHS and REACH for universal environmental safety. Applications include EMI filters, choke components, and interference reduction in consumer electronics.
This Wurth Elektronik Ferrite Ring toroid core is suited for use in various industrial, manufacturing, and electronic assembly contexts where EMI control is critical, including telecommunications, automotive electronics, and high-frequency board designs.
Explore the Electronics Components section to find comprehensive EMI filtering solutions by Wurth Elektronik and related products to enhance your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ferrite ring operates effectively within the 25 MHz to 100 MHz frequency range, making it suitable for EMI suppression applications.
It is constructed from high-permeability 4W620 ferrite material, which helps in reducing electromagnetic interference.
The ferrite ring has a height of 20 mm and an inside diameter of 35.5 mm.
Yes, it complies with RoHS and REACH standards, ensuring it meets environmental safety regulations.
It features a through-hole mounting design, allowing conductors to pass through the toroidal aperture for easy installation.
This model is suitable for use in consumer electronics, cable harnesses, and high-frequency signal lines for EMI filtering.
It is part of the WE-TOF series, known for reliable performance in EMI suppression.
The outside diameter of this ferrite ring is 20 mm.
It efficiently reduces common-mode noise, improving signal integrity in various applications.
The ferrite ring is manufactured in Taiwan.
Yes, it is suitable for various industrial, manufacturing, and electronic assembly contexts where EMI control is critical.
The model number for this ferrite ring is 74270191.
