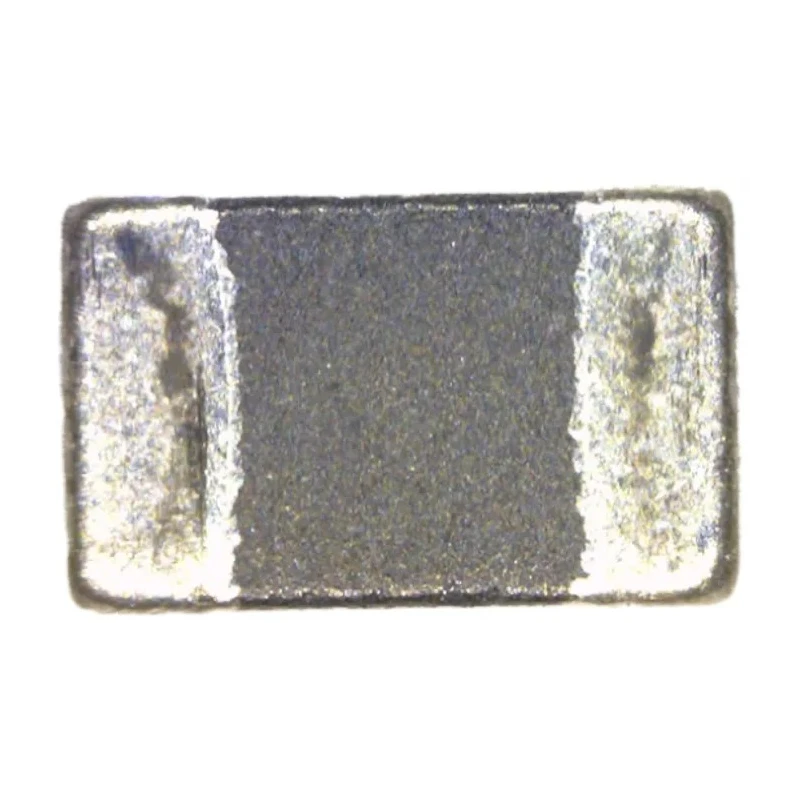

Murata Shielded Multilayer Surface Mount Inductor 1 μH 1.3 A Idc 0805 Package LQM21PN1R0NGRD

Free Delivery in India | Lowest Global Shipping Charges

Murata Shielded Multilayer Surface Mount Inductor 1 μH 1.3 A Idc 0805 Package LQM21PN1R0NGRD

Name: Murata Shielded Multilayer Surface Mount Inductor 1 μH 1.3 A Idc 0805 Package LQM21PN1R0NGRD
Brand: Murata
SKU: 370292
Price: 0.1 USD
Availability: InStock



Category Surface Mount Inductors Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	0.9mm
Length	2mm
Model	LQM21PN1R0NGRD
Depth	1.25mm
Packaging	Embossed Tape
Series	LQM
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Inductance	1μH
Standards/Approvals	RoHS
Package/Case	0805
Maximum DC Current	1.3A
Pin Count	2
Maximum DC Resistance	82.5mΩ
Inductance Tolerance	±30 %
Termination Style	Solder
Maximum Self Resonant Frequency	50MHz
Inductor Construction	Multilayer

Key Features

This 0805 package inductor supports a maximum DC current of 1.3 A.
It features a ferrite core with a multilayer construction and ±30% inductance tolerance.
The component is magnetically shielded to minimize electromagnetic interference.
Operating temperature range is from -55°C to 125°C, ensuring reliability in diverse environments.
Maximum DC resistance is 82.5 milliohm, contributing to low power loss.
It has a maximum self-resonant frequency of 50 MHz for high-frequency applications.
The inductor is supplied in embossed tape packaging for automated assembly processes.

Product Description

Murata LQM21PN1R0NGRD is a shielded multilayer surface mount inductor designed for electronic applications requiring compact size and reliable performance.

This 0805 package component features a ferrite core and multilayer construction technology that enhances inductance stability and reduces electromagnetic interference through magnetic shielding.

With a nominal inductance of 1 μH and an inductance tolerance of ±30%, it supports a maximum DC current rating of 1.3 A, making it suitable for signal filtering and power management applications.

The inductor operates effectively within a temperature range of -55°C to 125°C, assuring durability across automotive, industrial, and consumer electronics environments.

Its electrical characteristics include a maximum DC resistance of 82.5 milli-ohms and a maximum self-resonant frequency of 50 MHz, which supports high-frequency circuit operations.

The compact 2.0 x 1.25 x 0.9 mm dimensions allow integration into densely packed printed circuit boards, especially useful in space-constrained designs. The product is supplied in embossed tape packaging, compatible with automated surface mount technology assembly lines, enhancing manufacturing efficiency.

This multilayer inductor construction is molded and solder terminated for reliable mechanical stability. The ferrite core material provides excellent magnetic properties to support inductor performance. Compliant with RoHS standards, ensuring environmental safety compliance.

Typical industrial use cases include power supply regulation, signal conditioning, noise filtering, telecommunications, consumer electronics, and automotive systems. Explore our range of Surface Mount Inductors from Murata and other reliable brands for high-quality electronic components at EnvMart.
