| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN91NG00D |
| Depth | 0.5mm |
| Series | LQW |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Ferrite |
| Inductance | 91nH |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 125mA |
| Maximum DC Resistance | 2.38Ω |
| Inductance Tolerance | ±2 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.1GHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |

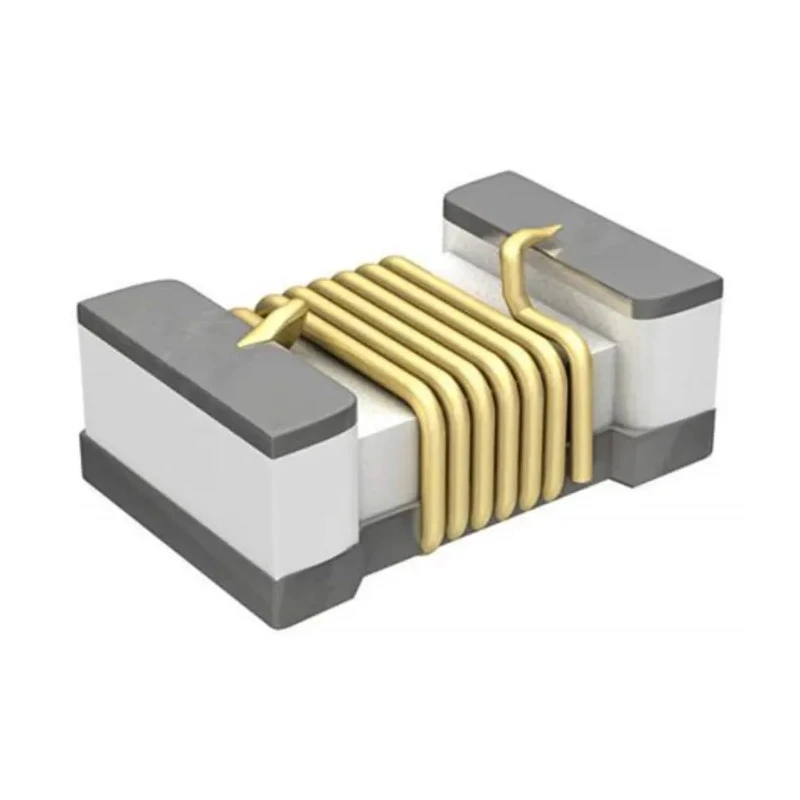

Murata LQW15AN91NG00D is a 0402 size unshielded wirewound surface mount inductor featuring a ferrite core that provides an inductance of 91 nH with a tight tolerance of ±2%. This inductor supports a maximum DC current of 125 mA and offers a quality factor (Q) of 20, making it well suited for high frequency VHF and UHF wireless telecommunications circuits, including Bluetooth, GSM, and WLAN devices.
The component's compact dimensions of 1 mm length, 0.5 mm height, and 0.5 mm depth allow efficient PCB space usage. Its maximum DC resistance of 2.38 Ω helps reduce losses and heat generation, ensuring optimal performance even in compact electronic assemblies.
Designed for surface mount technology, this inductor has a termination style optimized for automated insertion machines, increasing manufacturing efficiency. The ferrite core material provides excellent magnetic properties, contributing to its high resonant frequency of 2.1 GHz.
This product is RoHS compliant and manufactured in Japan, indicating strict adherence to quality and environmental standards. It reliably operates within a temperature range from -55°C to 125°C, suitable for various industrial and commercial electronic applications.
Typical use cases include high frequency circuits in telecommunications equipment such as Bluetooth modules, GSM phones, WLAN systems, and other wireless communication devices. The robust construction and quality components ensure performance in demanding industrial, laboratory, and commercial settings.
Compact 0402 wirewound surface mount inductor with ferrite core. High frequency performance with 91 nH inductance and ±2% tolerance. Maximum DC current 125 mA with low DC resistance of 2.38 Ω. Operating temperature range from -55°C to 125°C with RoHS compliance.
Ideal for wireless communication equipment and VHF/UHF circuits. Explore more Surface Mount Inductors and ensure the right components for your electronic design projects here at EnvMart.
