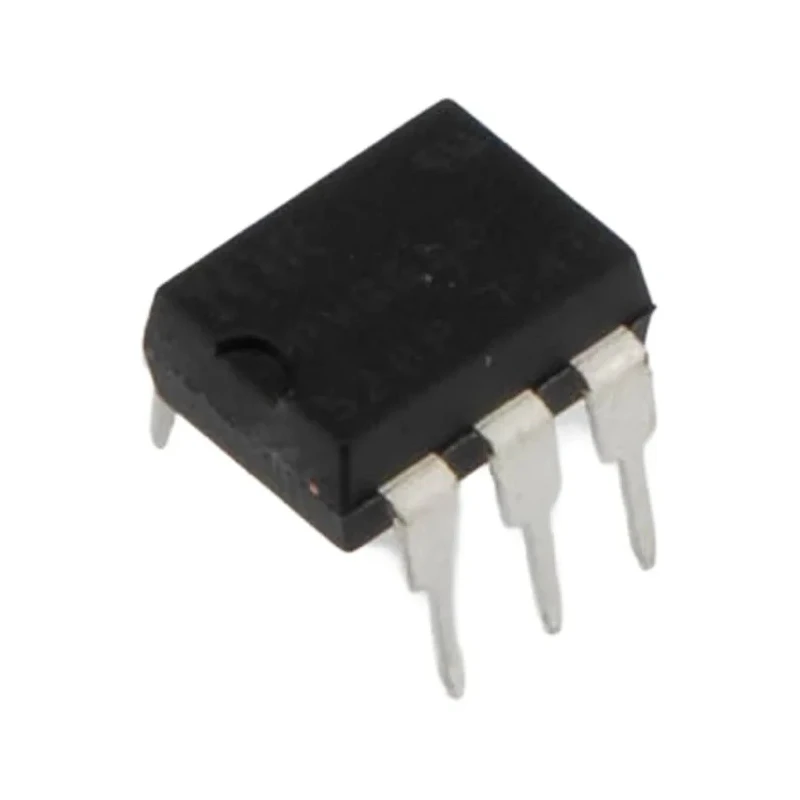

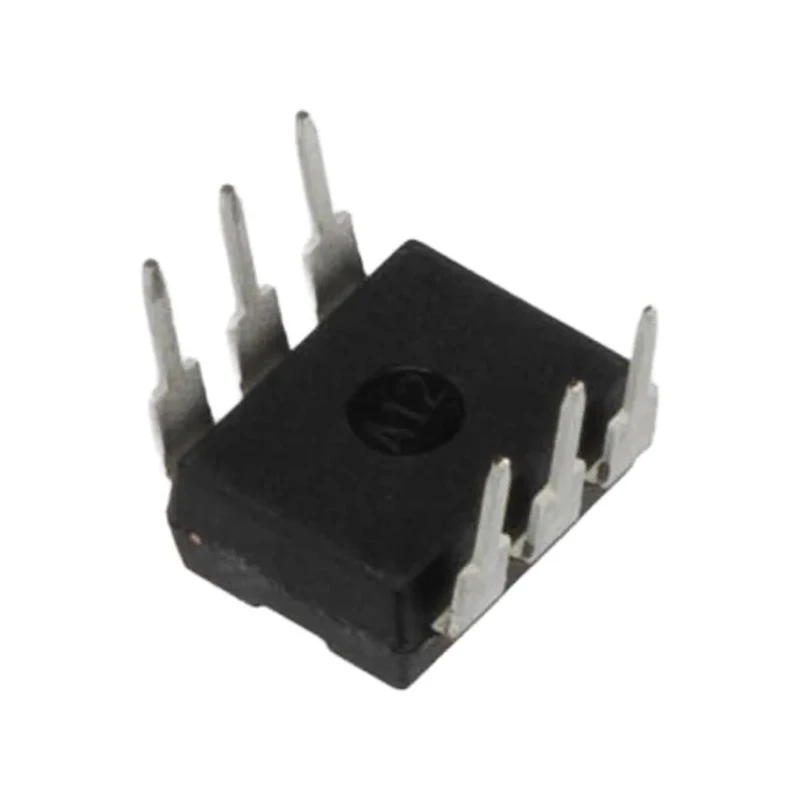

Infineon PVG612 Series Solid State Relay, 2 A Load Current, PCB Mount, 60 V Load Voltage PVG612

Infineon PVG612 Series Solid State Relay, model PVG612, offers a reliable solution for switching analogue signals with a maximum load current of 2 A and load voltage up to 60 V. This PCB mountable relay is designed to replace traditional electromechanical relays to provide enhanced reliability and performance in various industrial and electronic applications.

The relay utilizes Infineon's HEXFET power MOSFETs as the output switch, driven by an integrated circuit photovoltaic generator. This design ensures bounce-free operation, low off-state leakage, and high immunity to transient voltages (dv/dt rating of 1000 V/μsec).

Its input sensitivity of 5 mA allows efficient drive from low current control signals, while its 4000 VRMS input/output isolation protects sensitive circuits. The PDIP package measures 8.6 mm in length, 6.5 mm in width, and 3.4 mm in height, making it ideal for compact PCB layouts. It functions reliably in harsh environments spanning -40°C to +85°C operating temperatures and is RoHS compliant.

This solid state relay is suited for use in industrial automation, electrical control, signal conditioning, and other applications requiring durable and maintenance-free relay performance on printed circuit boards.

Utilizes transistor output incorporating FET and MOSFET technologies for switching. Provides bounce-free switching for precision control tasks. High off-state resistance reduces power loss and leakage currents. High dv/dt rating protects against voltage transients.

Low input current required for effective operation. 4000 VRMS input/output isolation enhances safety and signal integrity. Compact PDIP package with standardized PCB mounting. Wide operating temperature range suitable for industrial conditions.

Compliant with RoHS environmental regulation. Explore the Infineon Solid State Relay series on EnvMart for precise, reliable relay solutions in electrical and automation systems.
