TE Connectivity PCB Slide Switch DPDT Momentary 300mA Nylon ASE6204

Free Delivery in India | Lowest Global Shipping Charges

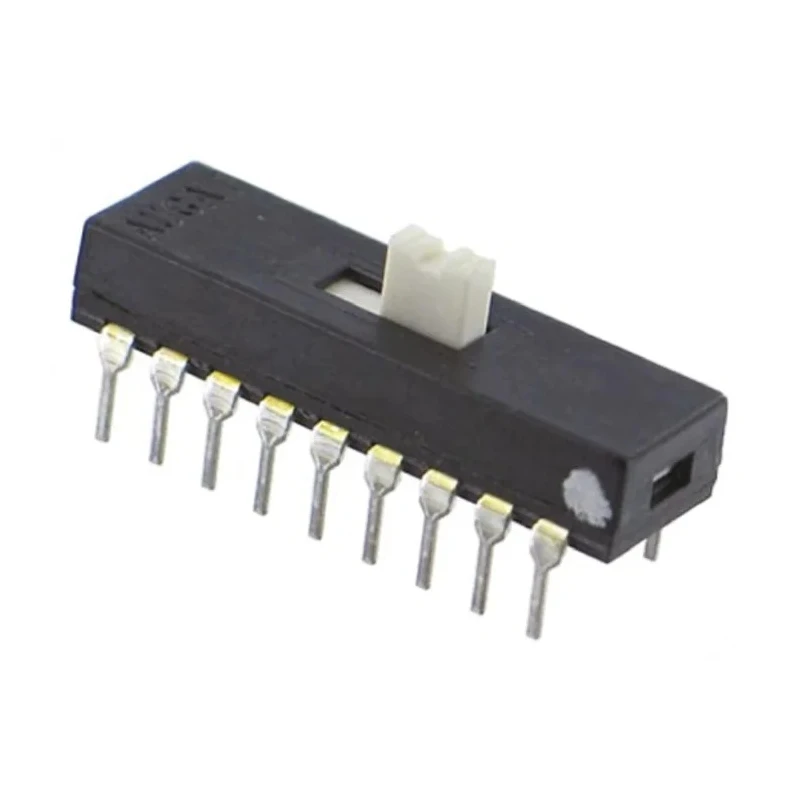

TE Connectivity PCB Slide Switch DPDT Momentary 300mA Nylon ASE6204

Name: TE Connectivity PCB Slide Switch DPDT Momentary 300mA Nylon ASE6204
Brand: TE Connectivity
SKU: 369727
Price: 20.22 USD
Availability: InStock



Category Slide Switch Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Operating Temperature Range	-40°C +80°C, making them particularly suited to harsh environments
Length	25.4mm
Model	ASE6204
Depth	7.36mm
Width	7.37mm
Mount Type	PCB
Series	ASE
Maximum Operating Temperature	80°C
Contact Configuration	DPDT
Switch Configuration	On-On-On
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Standards/Approvals	RoHS, UL
Switch Operation	Momentary
Switch Contact Current	300mA
Mechanical Life	15000Cycles
Contact AC Voltage	115V ac
Electrical Life	10000 operations
Actuator Material	Nylon

Key Features

This DPDT switch provides double pole, double throw functionality for controlling two separate circuits simultaneously.
The switch operates momentarily with a break-before-make configuration enhancing circuit protection.
It has a robust nylon actuator material ensuring durability and reliability in operation.
The device supports a contact AC voltage rating of 115V AC and maximum operating temperature of 80°C.
Compact dimensions with length 25.4mm, width 7.37mm, and depth 7.36mm fit standard PCB layouts.
Mechanical life is rated at 15,000 cycles with electrical life of 10,000 operations for long service usability.
This slide switch is RoHS and UL approved, assuring compliance with international safety standards.
Operating temperature ranges from -40°C to +80°C, suitable for harsh environments in industrial and electronic applications.

Product Description

TE Connectivity ASE6204 is a high-quality PCB slide switch featuring DPDT (Double Pole Double Throw) momentary operation, designed specifically for use in various electronic and industrial applications. It operates at a contact current of 300mA with a nylon actuator providing reliable switching and a professional-grade feel.

This switch is optimized for PCB mounting with a compact footprint measuring 25.4mm in length, 7.37mm width, and 7.36mm depth, allowing easy integration into electronic circuit boards. The On-On-On switch configuration along with momentary operation and break-before-make feature ensures safe and precise switching action across two circuits simultaneously.

Designed to withstand harsh environments, the ASE6204 supports operating temperatures from -40°C up to 80°C. It boasts a mechanical life of 15,000 cycles and an electrical life of 10,000 operations, making it suitable for instrumentation, test and measurement equipment, and computer servers. The nylon actuator enhances durability, and the switch complies with RoHS and UL standards for safety and sustainability.

This slide switch is typically employed in electronics manufacturing, telecommunications equipment, and industrial automation, offering reliable performance where precise, momentary switching is required.

This DPDT slide switch supports momentary operation with break-before-make configuration. Compact design fits easily onto PCBs with standard terminal types. Durable nylon actuator ensures longevity under frequent use. Electrical and mechanical life cycles support extended operational reliability.

Compliance with RoHS and UL standards provides safety assurance. Wide operating temperature range suits harsh industrial and laboratory settings. Suitable for instrumentation, test equipment, and telecommunications applications.

High-quality contacts support 115V AC at 300mA for varied electronic use cases. Explore more from the TE Connectivity range of Slide Switches for reliable and efficient switching solutions in your electronic design and industrial applications.
