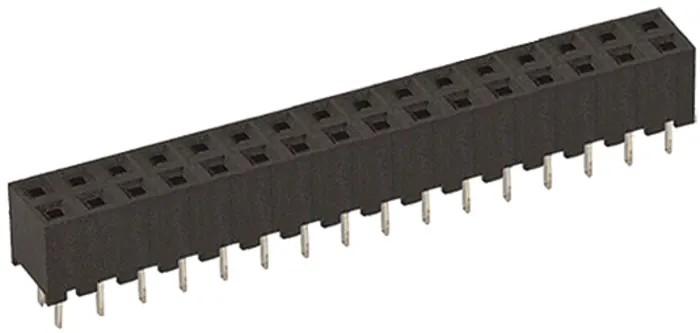

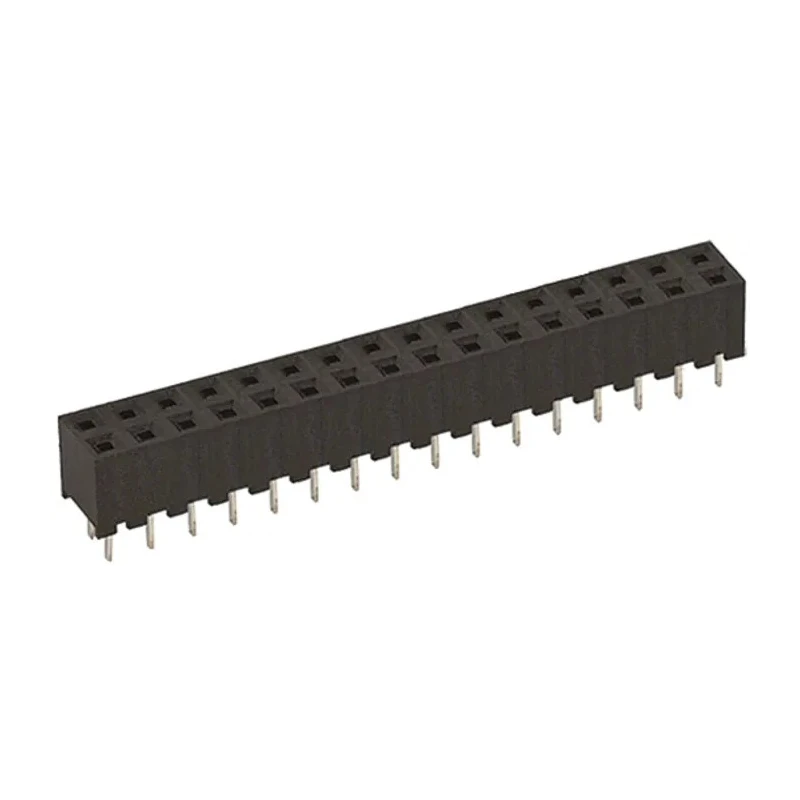

Hirose A3C Series Straight Through Hole PCB Socket, 32-Contact, 2 Row, 2 mm Pitch, Solder Termination A3C-32DA-2DSA(71)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12A |
| Model | A3C-32DA-2DSA(71) |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | A3C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Stacking Height | 5.1mm |
Key Features
- The socket features solder termination suitable for through-hole mounting.
- Its contact rating supports 12A current and a maximum voltage of 200V.
- The connector housing is made from Polybutylene Terephthalate for durability and insulation.
- Designed to operate in temperatures ranging from -55°C to 85°C.
- Contacts are female, made of bronze with gold plating for reliable conductivity.
- Compact stacking height of 5.1 mm enables space-saving on PCBs.
- Ideal for use in video equipment, communications, test rigs, and other electronic applications.
- Manufactured in Japan, ensuring high-quality standards.
Product Description
Hirose A3C-32DA-2DSA(71) PCB Socket is a miniature straight through hole connector designed with 32 female contacts arranged in 2 rows at a 2 mm pitch spacing. It features solder termination suitable for through-hole mounting to printed circuit boards, providing secure and reliable connections for wire-to-board applications. This PCB socket supports a current rating of 12A and voltage rating of 200V, delivering robust electrical performance for demanding industrial and electronic environments.
The housing is constructed from Polybutylene Terephthalate (PBT), ensuring excellent mechanical strength and resistance to heat and chemicals. Contact materials include bronze contacts with gold plating, guaranteeing high conductivity and corrosion resistance. The connector is rated to operate within a temperature range of -55°C to +85°C, suitable for use in harsh or varying thermal conditions.
Its compact stacking height of 5.1 mm allows for high-density PCB layouts while maintaining ease of assembly and maintenance. The part is manufactured in Japan, reflecting precision engineering and quality assurance standards expected in electronics manufacturing.
Applications include use in video and communications equipment, test rigs, instrumentation, and a wide range of industrial electronics where compact, durable, and high-performance PCB connectors are required. This connector is part of the Hirose A3C Series, known for its miniature connectors offering space-saving and reliable wire-to-board connections.
The socket features solder termination suitable for through-hole mounting. Supports a current rating of 12A and voltage of 200V. Housing made from durable Polybutylene Terephthalate material. Operating temperature ranges from -55°C to 85°C for broad environment compatibility.
Bronze contact material with gold plating ensures excellent conductivity. Compact 5.1 mm stacking height supports tight PCB spacing. Ideal for electronic equipment such as video and communication devices, test rigs, and instrumentation.
Made in Japan with high manufacturing standards. Explore our extensive catalog of Hirose connectors and PCB Sockets on EnvMart for reliable and industrial-grade components suited for diverse electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12A and a maximum voltage of 200V, making it suitable for various electronic applications.
The Hirose A3C-32DA-2DSA(71) operates within a temperature range of -55°C to +85°C, allowing it to function in harsh thermal conditions.
The housing of this connector is made from Polybutylene Terephthalate (PBT), while the contacts are made of bronze with gold plating for enhanced conductivity.
This model features 32 female contacts arranged in 2 rows at a 2 mm pitch spacing.
The compact stacking height of the Hirose A3C-32DA-2DSA(71) is 5.1 mm, allowing for space-saving on PCBs.
The Hirose A3C-32DA-2DSA(71) features solder termination, making it suitable for through-hole mounting on printed circuit boards.
This PCB socket is ideal for use in video equipment, communications, test rigs, and other electronic applications requiring reliable connections.
The connector is designed with a straight orientation, facilitating straightforward installation on PCBs.
This model is manufactured in Japan, ensuring adherence to high-quality standards in electronics manufacturing.
The contacts of the Hirose A3C-32DA-2DSA(71) are plated with gold, which enhances conductivity and corrosion resistance.
The contact pitch spacing for the Hirose A3C-32DA-2DSA(71) is 2 mm, allowing for compact PCB layouts.
It is a wire-to-board PCB socket designed for through-hole mounting, suitable for secure connections in various electronic applications.
