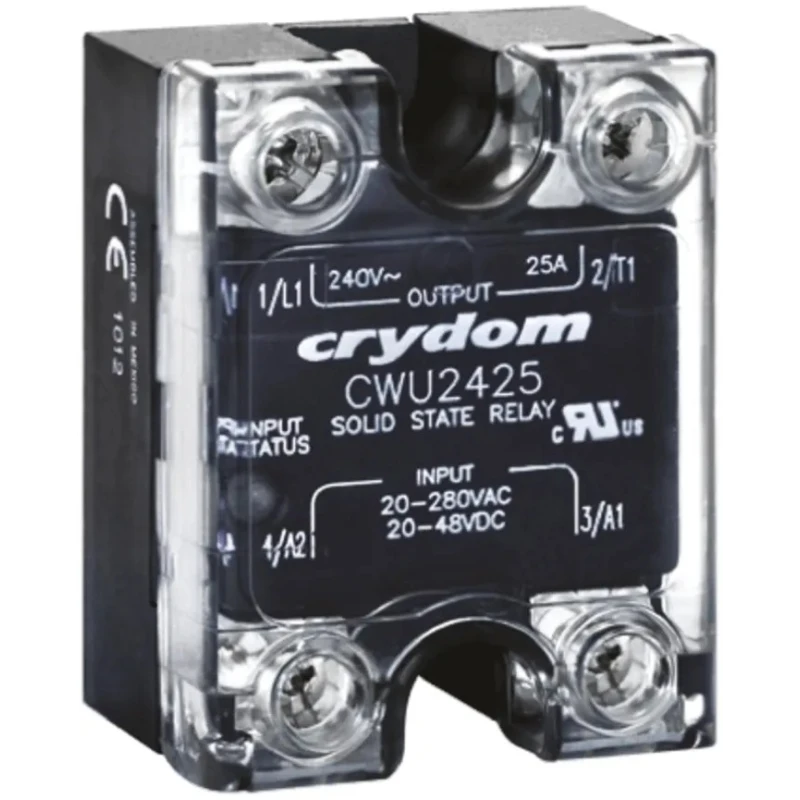

Crydom Panel Mount Solid State Relay 25 A Load, 280V AC Load, 280V AC Control CW24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 58.4mm |
| Length | 45.7mm |
| Model | CW24 |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW24 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 25A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 20V ac/dc |
| Off State Leakage Current | 1mA |
Key Features
- Designed for panel mounting applications with screw terminal type.
- Maximum load current rating of 25 amperes for heavy industrial use.
- Supports maximum load voltage of 280 V AC and minimum load voltage of 24 V AC.
- Control voltage range supports 20 V AC/DC minimum up to 280 V AC maximum.
- SCR output type ensures high reliability and zero-cross switching.
- Operating temperature range from -30°C to 80°C for varied environments.
- Compact size with length 45.7 mm and height 58.4 mm.
- Equipped with LED input status indicator and removable IP20 touch-safe cover.
Product Description
The Crydom CW24 series is a high-performance solid state relay designed for panel mounting in industrial electrical control systems. With a maximum load current of 25 amperes and load voltage capability of 280 V AC, this relay is suitable for heavy industrial loads requiring reliable switching.
Featuring SCR output and zero-cross switching function, the relay ensures minimal electrical noise and enhanced longevity. The panel mount format with screw terminals facilitates easy and secure installation in control panels.
The device operates efficiently over a wide temperature range from -30°C to 80°C, making it suitable for various industrial environments. Compact physical dimensions of 45.7 mm length and 58.4 mm height allow installation in space-constrained panels.
The CW24 relay includes a removable IP20 touch-safe cover to protect users from accidental touch during operation and incorporates an LED input status indicator for simple visual confirmation of relay status.
Designed with a dielectric barrier capacitor (DBC) substrate to improve thermal performance, this relay complies with RoHS standards ensuring environmental compliance. Designed for panel mounting applications with screw terminal type.
Maximum load current rating of 25 amperes for heavy industrial use. Supports maximum load voltage of 280 V AC and minimum load voltage of 24 V AC. Control voltage range supports 20 V AC/DC minimum up to 280 V AC maximum.
SCR output type ensures high reliability and zero-cross switching. Operating temperature range from -30°C to 80°C for varied environments. Compact size with length 45.7 mm and height 58.4 mm. Equipped with LED input status indicator and removable IP20 touch-safe cover.
Complies with RoHS environmental standards.
This solid state relay is commonly used across industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and heavy load switching applications requiring robust and silent operation.
Explore more Crydom Solid State Relays and related components at EnvMart for comprehensive industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current rating of this solid state relay is 25 amperes, making it suitable for heavy industrial use.
This model operates efficiently over a temperature range from -30°C to 80°C, allowing it to function in varied industrial environments.
The maximum load voltage supported by this relay is 280 V AC.
The CW24 relay utilizes SCR output type, ensuring high reliability and zero-cross switching for minimal electrical noise.
The minimum control voltage for this solid state relay is 20 V AC/DC.
The dimensions of the Crydom CW24 relay are 45.7 mm in length and 58.4 mm in height.
This relay features screw terminal type, which facilitates easy and secure installation in control panels.
Yes, it is equipped with a removable IP20 touch-safe cover to protect users from accidental touch during operation.
This relay is commonly used in industrial automation, electrical control panels, HVAC systems, and heavy load switching applications.
The CW24 relay complies with RoHS environmental standards, ensuring it meets specific environmental compliance requirements.
The off state leakage current for this solid state relay is 1 mA.
The mounting type for this relay is panel mount, designed for easy installation in control panels.
