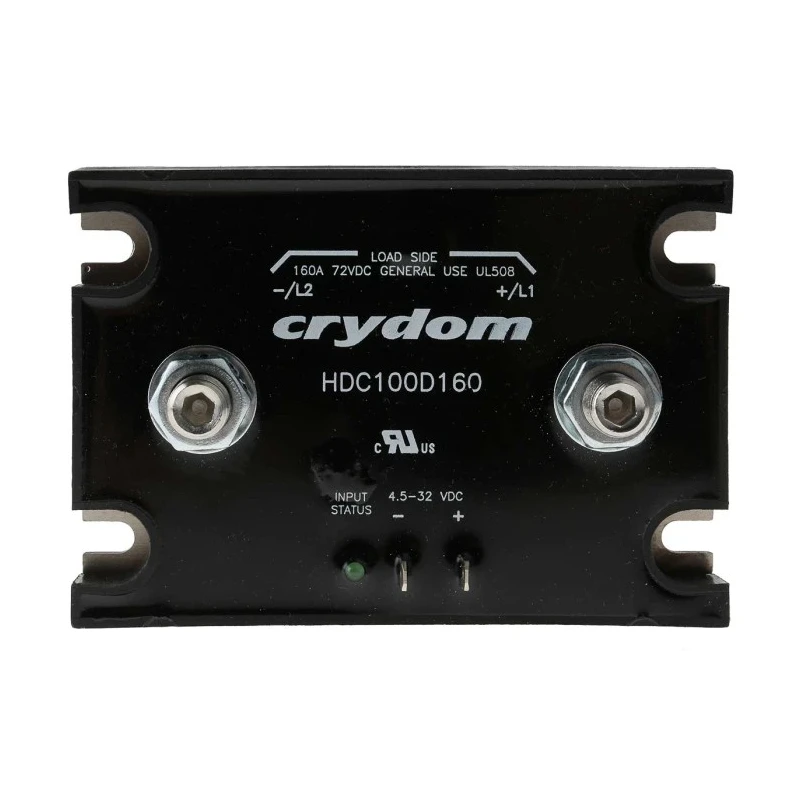

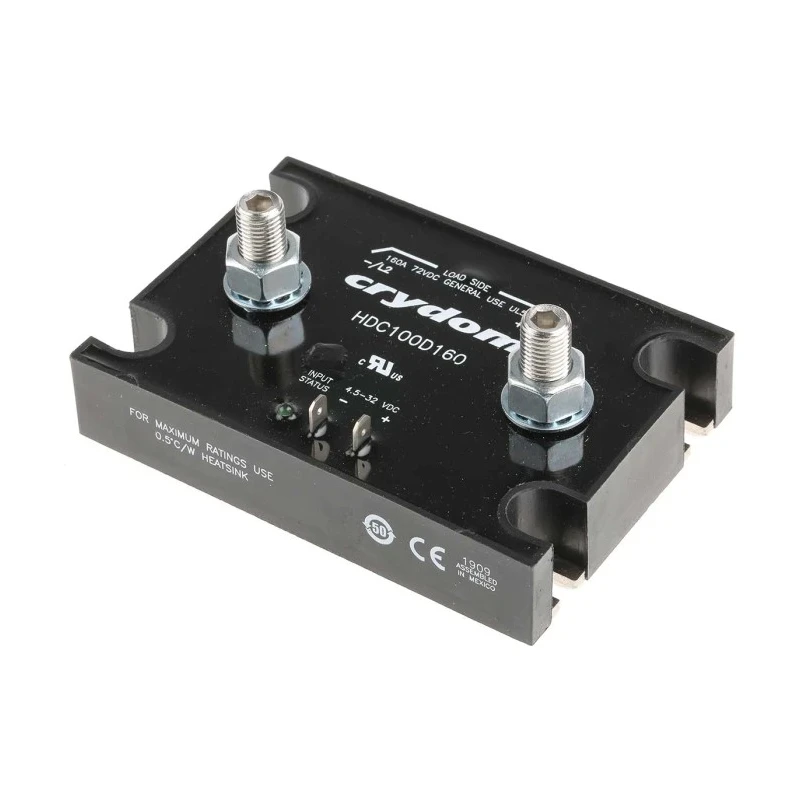

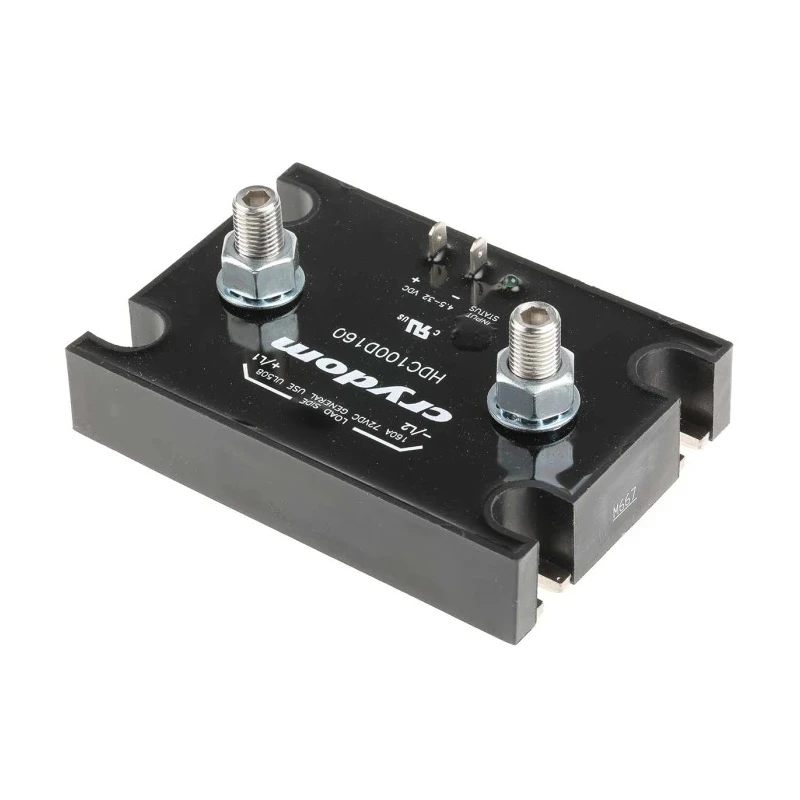

Crydom Solid State Relay, Panel Mount, 160 A Load, 72 V dc Load, 32 V dc Control HDC100D160
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 73.5mm |
| Length | 104mm |
| Model | HDC100D160 |
| Mount Type | Panel |
| Series | HDC |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| Terminal type | Quick Connect |
| Maximum Load Current | 160A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 72V dc |
| Minimum Load Voltage | 7V dc |
| Minimum Control Voltage | 4.5V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.15mA |
Key Features
- This relay features a quick connect terminal type for ease of installation.
- It supports DC switching with a minimum load voltage of 7 V dc and maximum load voltage of 72 V dc.
- The control voltage range is from 4.5 V dc to 32 V dc.
- Designed to operate reliably in temperatures ranging from -30°C to 80°C.
- The product includes an LED status indicator for operational monitoring.
- Heavy duty stud terminals ensure secure and durable connections.
- Constructed in a compact 75x105 mm panel mount housing, suitable for harsh environments.
- Off-state leakage current is low at 0.15 mA, minimizing power loss.
Product Description
Crydom HDC100D160 is a high-performance solid state relay designed for panel mounting applications, supporting a maximum load current of 160 A and a maximum load voltage of 72 V dc. Its robust construction in a compact 75x105 mm package allows use in demanding industrial environments such as packaging machinery, power supplies, process controls, and automation systems.
Equipped with quick connect terminals and heavy duty stud terminals, this relay ensures easy installation and secure electrical connections. The device incorporates an LED status indicator to visually confirm operation status, enhancing reliability and maintenance efficiency.
The relay supports control voltages between 4.5 V dc and 32 V dc and can switch DC loads with voltages as low as 7 V dc. Its low off-state leakage current of 0.15 mA reduces power wastage during inactive states.
Operating temperature range from -30°C to 80°C guarantees stable performance across varied industrial conditions. The Crydom HDC Series is ideal for controlling coils, clutches, motors, and solenoids in industrial automation setups.
This product suits industrial, automation, manufacturing, and process control applications requiring reliable DC load switching. Panel mount design minimizes installation footprint in electrical cabinets. Heavy duty ratings accommodate demanding power requirements safely.
LED indication and quick connect terminals improve monitoring and maintenance. Compact and rugged enclosure enables use in harsh environments.
EnvMart recommends the Crydom HDC100D160 solid state relay for industrial and electrical applications needing efficient and reliable DC load switching solutions. Browse the Electronics & Electricals category for related control and relay products.
Explore more products in our Solid State Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 160 A.
The control voltage range for this relay is from 4.5 V dc to 32 V dc.
It supports a minimum load voltage of 7 V dc and a maximum load voltage of 72 V dc.
The dimensions of this model are 75 mm in height and 105 mm in length.
This solid state relay operates reliably in temperatures ranging from -30°C to 80°C.
It features quick connect terminals for ease of installation.
The off-state leakage current is low at 0.15 mA.
This relay complies with RoHS standards.
It is suitable for industrial automation, manufacturing, and process control applications requiring reliable DC load switching.
The LED status indicator visually confirms the operational status, enhancing reliability and maintenance efficiency.
The mount type for this model is panel mount, which minimizes installation footprint in electrical cabinets.
This solid state relay is manufactured in India.
