Wurth Elektronik WE-PD2 5820 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20 % 1.7 A Idc 7447745100

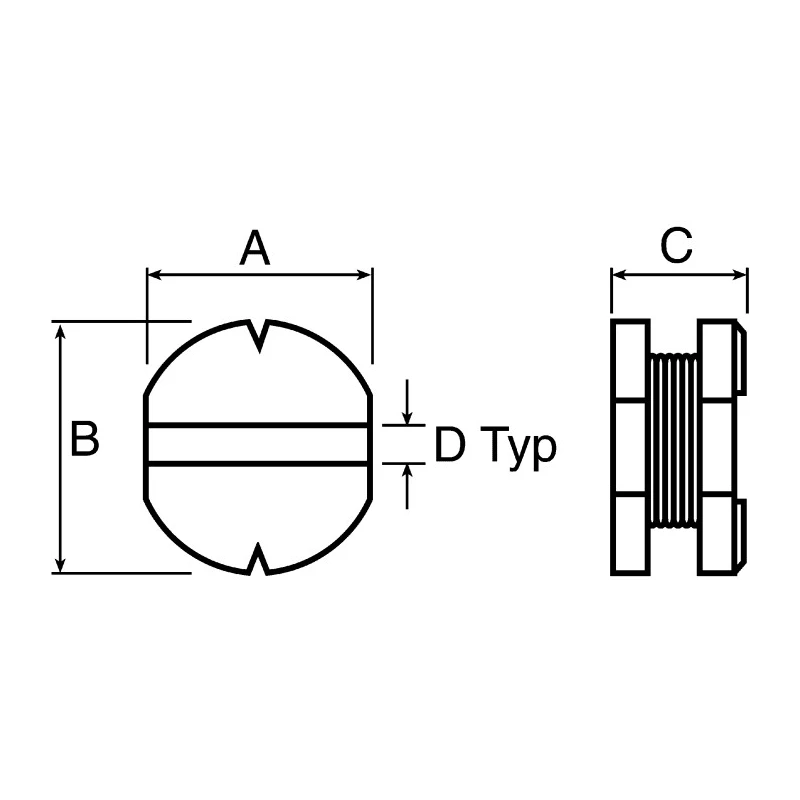

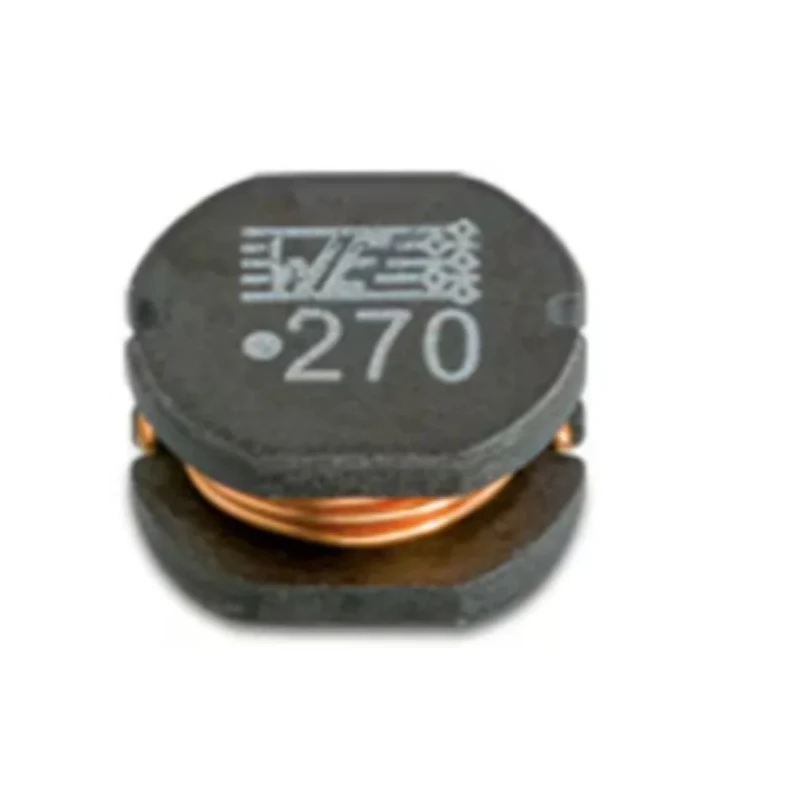

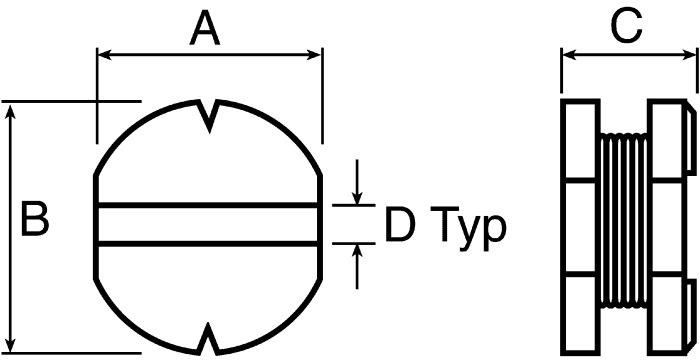

Wurth Elektronik model 7447745100 is a wirewound surface mount inductor from the WE-PD2 series, featuring a 5820 package size with dimensions of 5.8 mm length, 5.2 mm depth, and 2 mm height. It uses a ferrite core and presents an unshielded design to optimize inductance and minimize electromagnetic interference in compact PCB layouts.

This inductor offers a nominal inductance of 10 μH with a tolerance of ±20 % and can handle continuous direct current (Idc) up to 1.7 Amps. It exhibits a maximum DC resistance of 130 milliohms, balancing low power dissipation with compact size.

Its operating temperature range spans from -40°C to 125°C, making it suitable for industrial, automotive, and consumer electronic applications. The product complies with JEDEC JS709B, REACH, and RoHS standards, and meets the AEC-Q200 automotive qualification for robust durability and performance under automotive conditions.

The inductor’s maximum self-resonant frequency reaches 28 MHz, making it ideal for high-frequency switching regulator circuits, integrated DC/DC converters, and power management systems in laptops, computers, and mobile devices.

The surface mount termination style with two pins facilitates automated assembly processes such as reflow soldering, enhancing production efficiency in high-volume manufacturing environments.

Unshielded design with ferrite core optimizes magnetic performance. Compact 5820 package for space-saving surface mount applications. Rated for 1.7 A maximum DC current with low DC resistance. Qualified to automotive standard AEC-Q200 for reliability.

Compliance with JEDEC JS709B, REACH, and RoHS ensures safety and regulatory adherence. Suitable for switching regulators, DC/DC converters, and power applications. Wide operating temperature range from -40°C to 125°C for versatile use cases.

High self-resonant frequency supports high-frequency circuits up to 28 MHz.

This Wurth Elektronik inductors series is recommended for industrial, automotive, electronics manufacturing, telecommunications, and consumer electronics sectors. The product is made in China and delivered in Tape & Reel packaging to aid automated PCB assembly.
