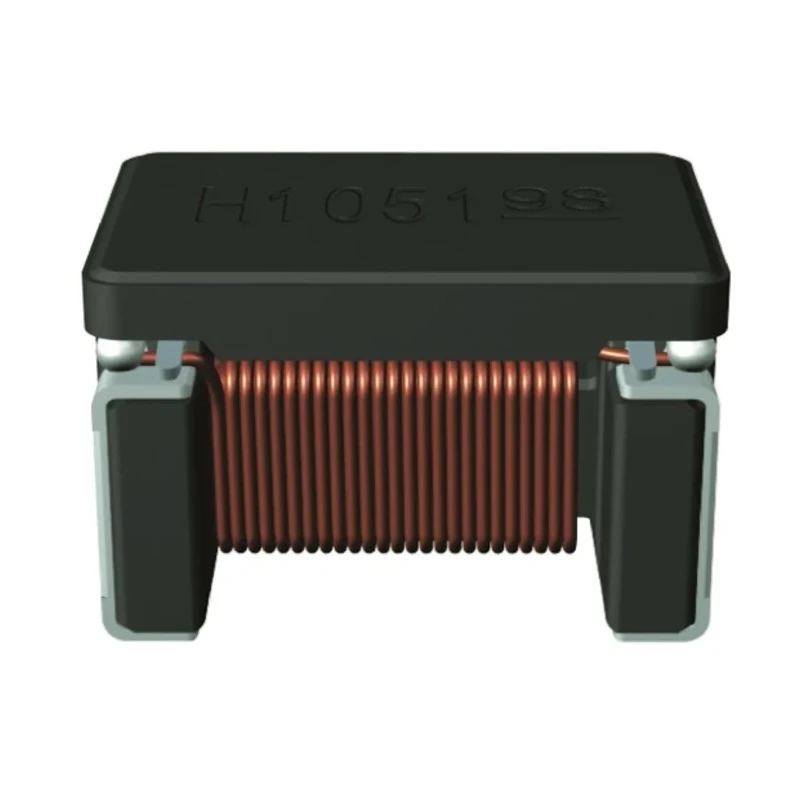

TDK 1812 Unshielded Surface Mount Common Mode Choke with Ferrite Core 51μH 200mA Max DC Current B82787C0513H002

TDK B82787C0513H002 is an unshielded surface mount common mode choke featuring a ferrite core and wirewound enamel copper wire construction. Designed primarily for automotive CAN bus system applications, this 1812 size component provides an inductance of 51μH with a maximum DC current capacity of 200mA and a tolerance of -30 to +50%. It operates reliably within the temperature range of -40°C to 150°C and offers a maximum DC resistance of 1Ω, making it suitable for demanding automotive and industrial environments.

The component's packaging is on a reel, facilitating efficient assembly and placement during production. It is qualified to the stringent AEC-Q200 automotive qualification standard, ensuring high durability and performance under automotive operating conditions. Its RoHS compliance confirms its environmentally friendly manufacturing process.

With a compact footprint measuring 4.5mm in length, 3.2mm in depth, and 2.8mm in height, this common mode choke is ideal for space-constrained PCB designs. Its surface mount termination style enables easy mounting using standard reflow soldering techniques without the need for shielding, suitable for high-volume automated manufacturing.

Manufactured in Germany, this choke meets high standards for quality and performance. Typical applications include data and signal line noise suppression in automotive electronics, communication modules, and industrial control systems, enhancing signal integrity and electromagnetic compatibility (EMC).

Key features include wirewound inductors on ferrite cores, automotive-grade qualifications, and adaptability for lead-free soldering processes. This component is a reliable choice for engineers designing automotive CAN bus systems or other electronic circuits requiring effective common mode noise filtering in a compact surface mount package.

Unshielded common mode choke with ferrite core construction. 51μH inductance with ±30 to +50% tolerance. Maximum DC current of 200mA and DC resistance of 1Ω. Compact 1812 size with length 4.5mm, depth 3.2mm, height 2.8mm.

Qualified to AEC-Q200 automotive standards and RoHS compliant. Suitable for lead-free reflow soldering. Manufactured in Germany with high quality and reliability standards. Explore our Electronics & Electricals category for more inductors and surface mount components suitable for automotive, industrial, and commercial applications.
