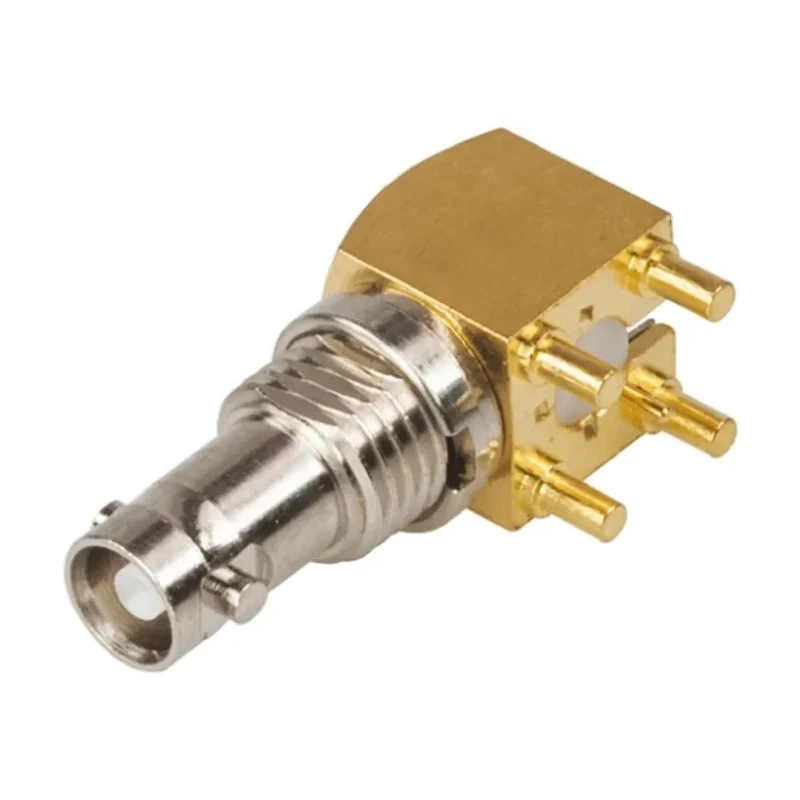

Amphenol RF Coaxial Connector Panel Mount Female HD BNC Connector 75 Ω Right Angle Body Through Hole 034-1030
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | Amphenol RF |
| Orientation | Right Angle |
| Model | 034-1030 |
| Mount Type | Panel Mount |
| Operating Frequency | 4.5GHz |
| Contact Material | Beryllium Copper |
| Series | HD-BNC |
| Termination Type | Through Hole |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | HD BNC Connector |
| Body Plating | Gold |
Key Features
- Features a compact HD BNC design ideal for space-saving mounting.
- Panel mount type with through hole termination ensures stable and secure installation.
- Operates at frequencies up to 4.5 GHz suitable for broadcast and digital video applications.
- Body and contact plating are gold for excellent corrosion resistance and conductivity.
- Constructed with beryllium copper contact material to provide durability and performance.
- Supports data rates of 3 Gbps or higher for high-speed signal transmission.
- Right angle orientation allows flexible routing in dense electronic assemblies.
- Designed for at least 500 mating cycles ensuring long-term operational reliability.
Product Description
Amphenol RF 034-1030 is a high-density panel mount coaxial connector featuring a female HD BNC design with 75 Ω impedance and right angle body through hole termination. It delivers compact, high-performance connectivity for demanding electronic and broadcast applications.
This connector operates effectively up to 4.5 GHz frequency, supporting digital video, HDTV, network routing, switching, and satellite headend systems. The gold-plated body and contacts provide excellent corrosion resistance and high signal integrity.
Constructed with beryllium copper contacts, the connector ensures durability and reliable conductivity. Its design supports a minimum of 500 mating cycles, making it suitable for repeated connections and disconnections without performance degradation.
The right angle orientation and panel mount installation enable convenient mounting within electronic assemblies where space-saving and signal integrity are critical. This product exceeds SMPTE 292M and 424M standards for broadcast video applications, ensuring compliance with industry specifications.
Compact HD BNC connector with 75 Ω impedance. Gold plated body and contacts enhance conductivity and corrosion resistance. Beryllium copper contacts provide durability and reliable performance. Supports frequency range up to 4.5 GHz and data rates of 3 Gbps or higher.
Right angle body with through hole panel mount termination for space-saving installations. Designed for a minimum of 500 mating cycles ensuring long-term reliability. Meets SMPTE 292M and 424M broadcast video standards. Ideal for use in broadcasting, digital video, network switching, and satellite headends.
Amphenol RF connectors are trusted in industrial, commercial, and laboratory environments requiring precision and durability. Explore more Coaxial Connector solutions and related products within the EnvMart electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively at frequencies up to 4.5 GHz, making it suitable for various broadcast and digital video applications.
It features a through hole termination type, ensuring stable and secure installation in panel mount applications.
The connector has a 75 Ω impedance, which is standard for many video and broadcast applications.
It is designed for at least 500 mating cycles, ensuring long-term operational reliability during repeated connections and disconnections.
The contacts are constructed from beryllium copper, providing durability and reliable performance.
This model features a right angle orientation, allowing for flexible routing in dense electronic assemblies.
It supports data rates of 3 Gbps or higher, facilitating high-speed signal transmission.
Yes, it exceeds SMPTE 292M and 424M standards for broadcast video applications, ensuring compliance with industry specifications.
This connector features a female connector gender, suitable for connecting to male counterparts in various applications.
The body and contacts are gold plated, enhancing conductivity and providing excellent corrosion resistance.
The Amphenol RF 034-1030 is manufactured in China.
It is suitable for use in broadcasting, digital video, network switching, and satellite headend systems.
