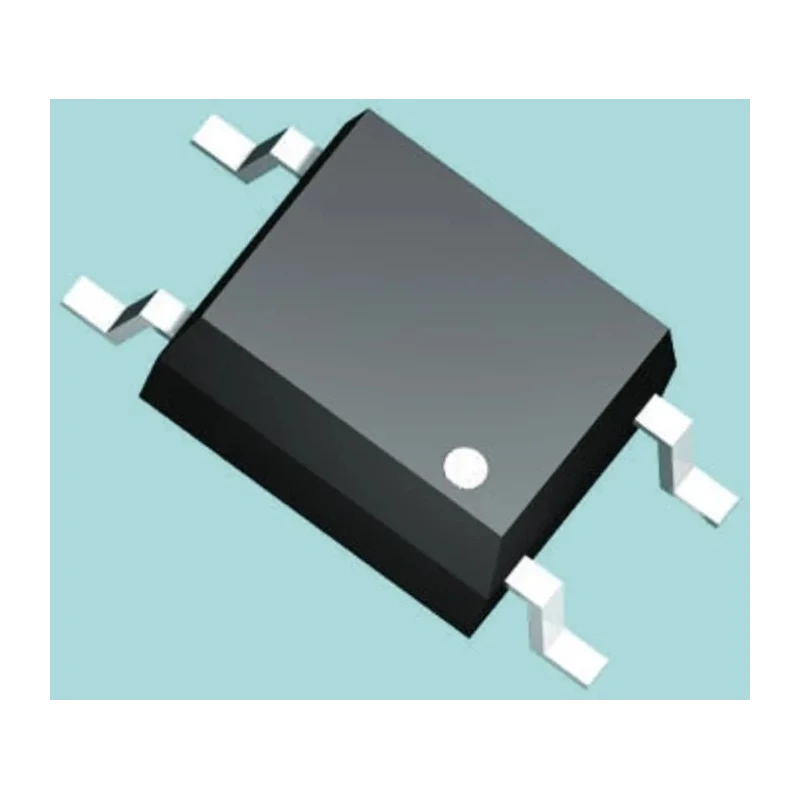

Vishay DC Input Optocoupler Surface Mount, 4-Pin SOP Package, Model VOM617A-3X001T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOM617A-3X001T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VOM |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, UL |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 7μs |
| Maximum Current Transfer Ratio | 200% |
| Typical Fall Time | 12μs |
| Minimum Current Transfer Ratio | 100% |
Key Features
- Features a maximum forward voltage of 1.6 volts to ensure efficient input operation.
- Designed with a maximum input current of 60 milliamps for robust functionality.
- Operates effectively in temperatures from -55 to 110 degrees Celsius.
- Offers isolation voltage rating up to 3750 Vrms for enhanced electrical safety.
- Includes a phototransistor output with a current transfer ratio ranging from 100% to 200%.
- Packaged in tape and reel format for streamlined manufacturing assembly processes.
- Typical rise and fall times are 7 and 12 microseconds, respectively, supporting fast switching.
- Conforms to EN and UL standards ensuring quality and reliability compliance.
Product Description
Vishay VOM617A-3X001T is a DC input optocoupler designed with a surface mount 4-pin SOP package tailored for electronic components requiring safe and efficient electrical isolation. This optocoupler integrates a phototransistor output suitable for protecting microprocessors and system users from electrical shocks and voltage spikes.
The device supports a maximum forward voltage of 1.6 volts and handles an input current up to 60 milliamps, making it ideal for applications demanding reliable current transfer. Operating within a temperature range of -55°C to 110°C, it ensures stable performance across diverse environmental conditions.
The VOM617A series offers a high isolation voltage of 3750 Vrms, providing superior protection in applications such as AC adapters, switch mode power supplies, programmable logic controllers, industrial controls, telecom systems, smart meters, office equipment, and solar power systems.
Typical rise and fall times of 7 microseconds and 12 microseconds allow for responsive switching, enhancing system efficiency. The product complies with EN and UL standards, affirming its quality and industrial applicability.
Maximum forward voltage of 1.6V ensures efficient input control. Maximum input current rated at 60mA provides robust operation. Operating temperature range from -55°C to 110°C supports harsh environments. Isolation voltage at 3750 Vrms protects users and devices.
Current transfer ratio from 100% to 200% ensures effective signal transmission. Tape and reel packaging facilitate automated assembly. Fast rise and fall times enable quick switching applications. Certified to EN and UL standards for safety and reliability.
Phototransistor output type suitable for sensitive electronic circuits.
This Vishay optocoupler is essential for electrical isolation in a broad range of electronic systems including industrial automation, commercial telecommunications, and renewable energy. Its compact SOP package simplifies PCB integration and manufacturing.
Explore Vishay products in the EnvMart Electronics Components category for reliable Optocouplers and other semiconductor devices optimized for industrial and commercial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.6 volts, ensuring efficient input operation.
It has a maximum input current rating of 60 milliamps, providing robust functionality for various applications.
This unit operates effectively in temperatures ranging from -55°C to 110°C, suitable for harsh environments.
The isolation voltage rating is up to 3750 Vrms, enhancing electrical safety in applications.
It offers a current transfer ratio ranging from 100% to 200%, ensuring effective signal transmission.
The typical rise time is 7 microseconds and the fall time is 12 microseconds, supporting fast switching applications.
This optocoupler is packaged in tape and reel format, facilitating streamlined manufacturing assembly processes.
It features a 4-pin configuration, designed for surface mount applications.
This model conforms to EN and UL standards, ensuring quality and reliability compliance.
The mount type for the VOM617A-3X001T is surface mount, suitable for compact PCB designs.
This optocoupler belongs to the VOM series, which is designed for efficient electrical isolation in various applications.
It includes a phototransistor output, making it suitable for sensitive electronic circuits requiring electrical isolation.
