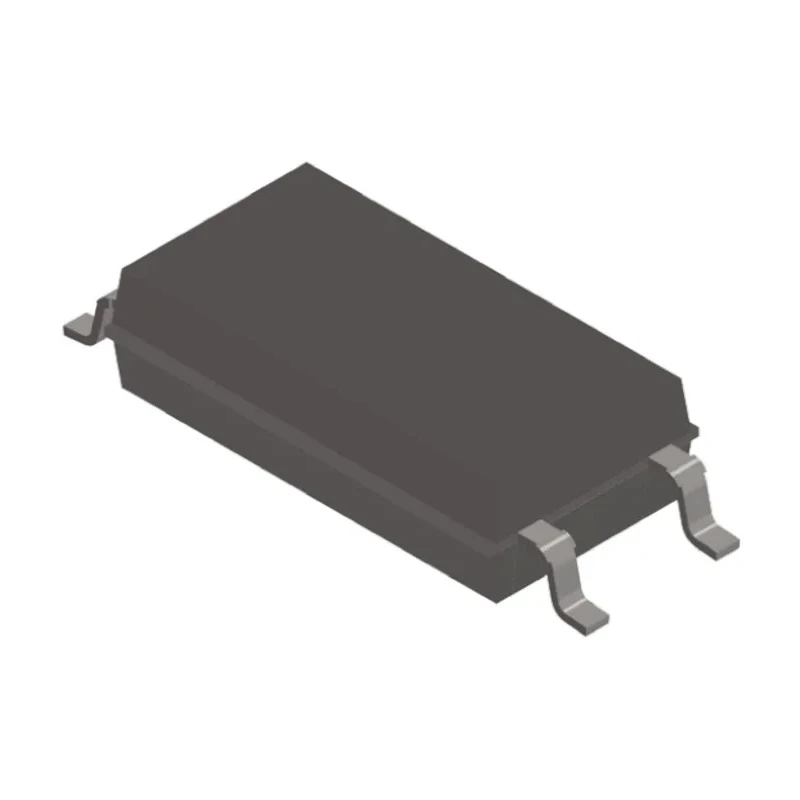

Vishay DC Input Optocoupler Surface Mount 4-Pin LSOP VOL617A-4X001T

Vishay VOL617A-4X001T DC Input Optocoupler is a high-performance isolation component featuring a phototransistor output and designed for surface mount applications in a 4-pin LSOP package. It enables electrical isolation up to 5000Vrms, safeguarding microprocessors and sensitive electronic circuits from voltage spikes and electrical shocks.

This optocoupler operates reliably within a broad temperature range of -55°C to 110°C, making it suitable for demanding industrial and commercial environments. Its fast response times, with a typical rise time of 3.5 microseconds and fall time of 5 microseconds, support efficient signal processing in control and communication systems.

Key characteristics include a maximum forward input voltage of 1.5 volts, a maximum input current of 60mA, and excellent current transfer ratios ranging from 160% minimum to 320% maximum, ensuring effective signal transmission. The LSOP package design allows for compact PCB assembly and automated manufacturing, with tape & reel packaging enhancing production efficiency.

Conforming to EN, CSA, and UL certifications, the VOL617A-4X001T is reliable for use in various applications such as AC adapters, switch mode power supplies, programmable logic controllers, industrial automation, telecom infrastructure, smart metering, office equipment, and renewable energy systems like solar power.

The device belongs to Vishay's VOL series and is built to maintain performance and safety in challenging operational conditions without automotive certification. The robust isolation and phototransistor output make it an essential component in protective and control circuits in industrial, laboratory, and commercial equipment.

Designed for high isolation voltage up to 5000Vrms to protect electronic systems. Features fast switching times with typical rise and fall times of 3.5μs and 5μs respectively. Operates over a wide temperature span from -55°C to 110°C for industrial reliability.

Compact 4-pin LSOP surface mount package supports dense PCB configurations. Maximum forward input voltage of 1.5V and input current rating up to 60mA. High current transfer ratio ranging from 160% to 320% for efficient signal control.

Meets EN, CSA, and UL standards for safety and quality assurance. Suitable for applications in AC adapters, power supplies, programmable controllers, telecom, and smart metering. Supplied in tape & reel packaging optimized for automated assembly lines.
