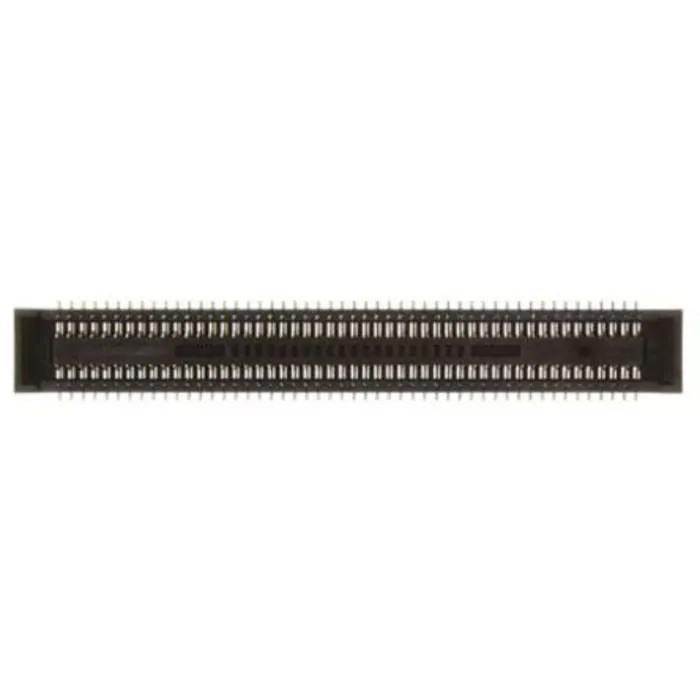

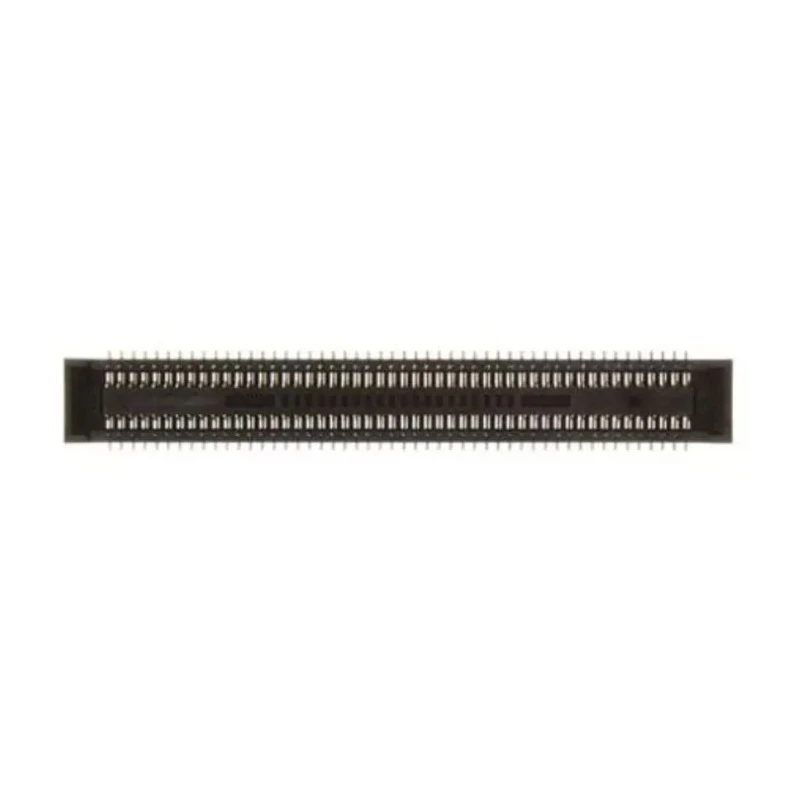

Hirose DF40 Series Straight Surface PCB Socket 100-Contact 2 Row 0.4mm Pitch Solder

Hirose DF40C-100DS-0.4V(58) PCB Socket is a premium quality board-to-board and board-to-FPC connector designed for high-density electronics applications. This PCB socket features a straight orientation with 100 female contacts arranged in two rows, designed with a fine 0.4 mm pitch for space-saving mounting on PCBs.

The connector housing is made from liquid crystal polymer, providing excellent mechanical and thermal stability. Contacts are copper with gold plating to ensure optimal electrical conductivity and long-term resistance to corrosion. Its solder termination type facilitates surface mount assembly, suitable for modern SMT production lines.

With a stacking height of 4 mm, this socket supports a wide range of design requirements. It safely handles voltages up to 30 V and current of 300 mA, making it appropriate for low power electronic devices. The operating temperature range is broad, spanning from minus 35 degrees Celsius to 85 degrees Celsius, enabling use in varied environmental conditions.

This DF40 series connector incorporates a tactile locking mechanism that emits a click sound upon proper mating, providing user confidence in secure connections. Guide ribs allow for automatic self-alignment during assembly, reducing installation errors. Shock absorbing ribs enhance durability against vibration and impact.

Applications for the Hirose DF40C-100DS-0.4V(58) include mobile phones, developer chipsets, LCD displays, notebook PCs, keyboards and other miniature electronic devices requiring reliable compact board connections.

High-density 100-contact connector for space-saving PCB layouts. Two rows and 0.4 mm pitch ensure precise fit in dense assemblies. Liquid crystal polymer housing offers mechanical and thermal resilience. Gold plated copper contacts guarantee low resistance and durability.

Surface mount solder termination suits SMT manufacturing processes. 4 mm stacking height accommodates versatile circuit designs. Board-to-board and board-to-FPC compatible connector system. Operates at 30 V, 300 mA with wide -35°C to 85°C temperature range.

Tactile locking mechanism prevents accidental unmating. Self-aligning guide ribs simplify assembly and enhance reliability.

This product is ideal for industrial, commercial, and electronic manufacturing sectors requiring compact, reliable PCB connectivity solutions. Explore related PCB Sockets and connectors for your specific application in the EnvMart electronics category.
