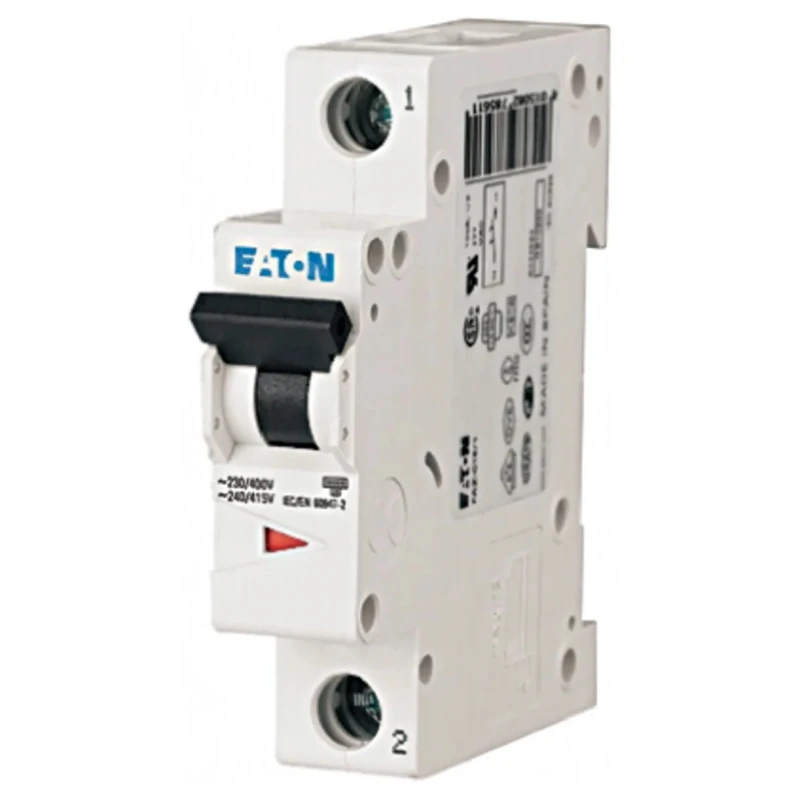

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 20A, Type D, 400V AC, 6 kA Breaking Capacity 168064 FAZ6-D20/1

Eaton 168064 FAZ6-D20/1 Miniature Circuit Breaker is a reliable and compact protective device designed for electrical systems requiring circuit interruption at 20 amperes. With a 1-pole configuration and Type D tripping characteristics, this breaker is particularly suited for circuits with moderate to high inrush currents, such as motors and inductive loads.

Operating at a rated AC voltage of 400V, the breaker supports an interrupting capacity of 6 kA, ensuring safe disconnection of electrical faults to protect wiring and connected equipment. The device is designed for DIN rail mounting, facilitating quick and secure installation within electrical panels and distribution boards.

The breaker features screw terminals that provide robust and reliable wire connections, enhancing electrical contact integrity. It meets industry standards including EN 60898 and IEC, confirming its compliance with stringent safety and performance criteria.

The instantaneous break time characteristic allows for rapid interruption of fault currents minimizing potential damage. A toggle switch actuator allows easy manual operation and resetting of the circuit breaker after trip events, enhancing user convenience and safety.

Additionally, the IP20 rating provides protection against solid objects larger than 12.5mm, suitable for typical indoor electrical environments. Eaton’s xEffect series represents the latest generation of miniature circuit breakers, incorporating improved design and certification to IEC / EN 60898 standards, formerly known under the Moeller brand.

Compact 1-pole construction suitable for circuit protection. Type D tripping characteristic ensures protection for circuits with high inrush currents. Designed to operate at rated AC voltage of 400V AC. Supports a breaking capacity of 6 kiloamperes for safe interruption of faults.

Mountable on DIN rail for easy panel installation. Screw terminal type provides secure electrical connections. Complies with EN 60898 and IEC standards. Instantaneous break time for rapid response. Toggle switch for manual reset operation.

IP20 rating ensures basic protection against solid objects.

This miniature circuit breaker is ideal for industrial, commercial, and residential electrical installations requiring dependable overcurrent protection. Eaton’s reputation for quality ensures long-term reliability in demanding environments.
