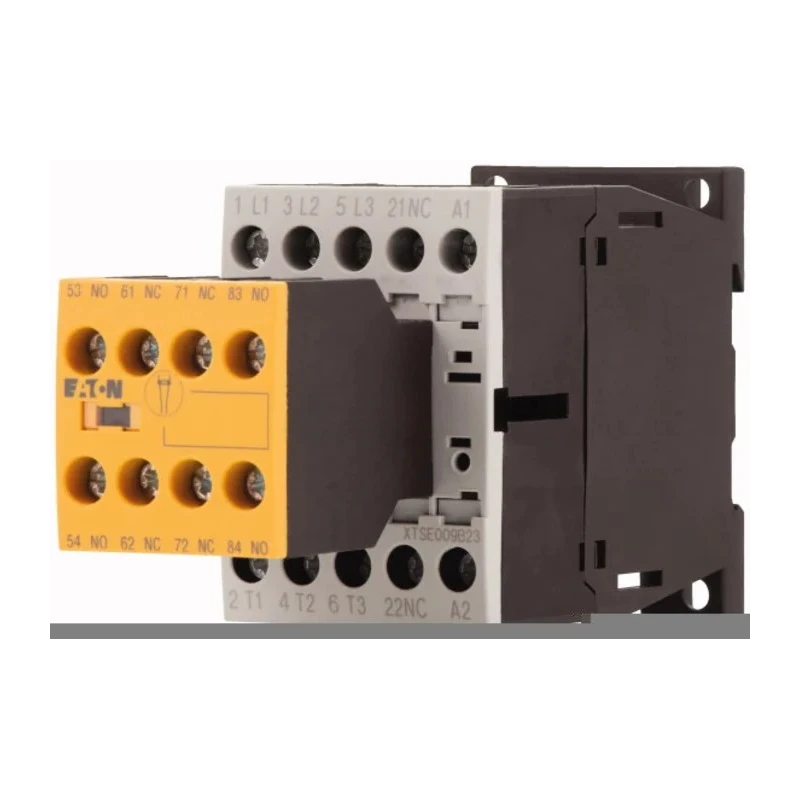

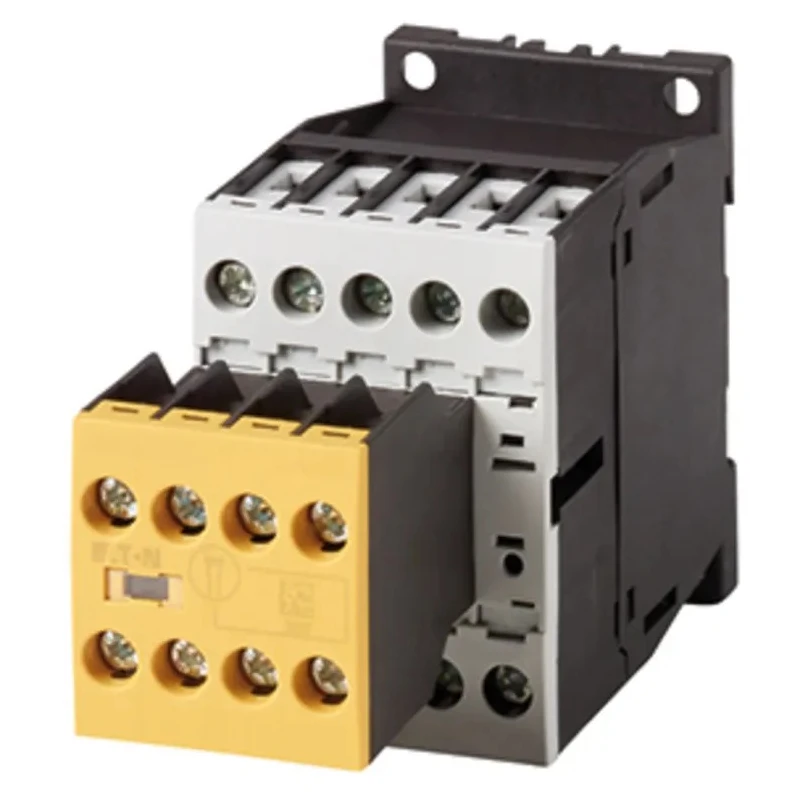

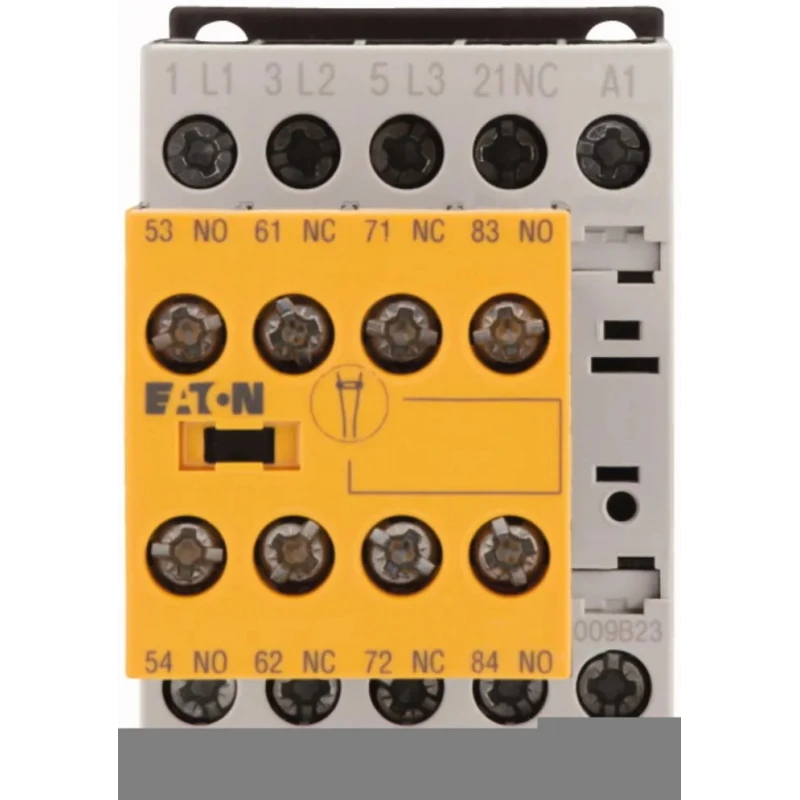

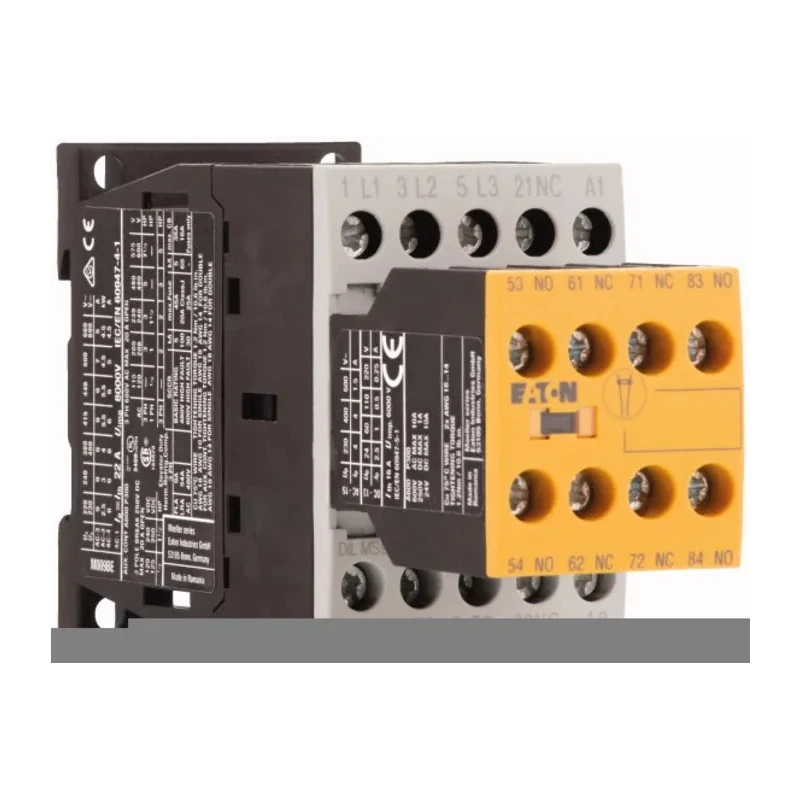

Eaton Safety 3-Pole Contactor 24V DC Coil 9 A 4 kW 3 NO 400V AC 191762 DILMS9-23(24VDC)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Safety |
| Length | 45mm |
| Model | 191762 DILMS9-23(24VDC) |
| Depth | 68mm |
| Width | 117mm |
| Mount Type | DIN Rail |
| Series | DILMS |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | UL, IEC, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 2 NO/3 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3 |
| Eaton DILM Contactor, 24 V Coil, 3-Pole, 9 A, 4.5 kW, 400 VBrand | Eaton |
Key Features
- This contactor operates with a 24V DC coil voltage and supports a contact current of 9A.
- It features a 3-pole design with a power rating of 4 kW and contact voltage of 400V AC.
- The device includes 5 auxiliary contacts configured as 2 normally open and 3 normally closed.
- It has screw clamp terminals for secure wiring and mounts easily onto DIN rails.
- Operating temperature ranges from -25°C to 60°C, suitable for harsh industrial environments.
- The compact dimensions of 45mm length, 117mm width and 68mm depth save panel space.
- A bright yellow housing and switch position indicator facilitate easy identification and status checking.
- The product complies with UL, IEC, and CSA standards ensuring safe and dependable operation.
Product Description
Eaton 191762 DILMS9-23(24VDC) 3-Pole Safety Contactor with 24V DC Coil is engineered for robust and safe industrial control applications, particularly where tamper-proof operation is essential.
This contactor supports a contact voltage rating of 400V AC and a contact current of 9A, with a power capacity of 4 kW, making it suitable for controlling induction motors and emergency stop circuits.
The device features five auxiliary contacts (2 normally open and 3 normally closed) and an interlocking auxiliary contact block to prevent manual tampering or accidental removal. Its bright yellow housing ensures easy identification within electrical panels.
Mounting is facilitated by DIN rail compatibility and rear fixing holes, while screw clamp terminals provide secure wiring connections.
The contactor operates reliably across a wide temperature range of -25°C to +60°C, suitable for industries including manufacturing, transportation, construction, and automation where harsh and variable environments are common.
Compact physical dimensions (45mm length x 117mm width x 68mm depth) optimize space utilization inside control panels. This product is certified to international standards UL, IEC, and CSA, guaranteeing safety and performance.
Manufactured in Romania, Eaton's DILMS series contactors are well-known for dependable switching and status monitoring, making them ideal for safety applications requiring stringent operational control.
This contactor operates with a 24V DC coil voltage and supports a contact current of 9A. It features a 3-pole design with a power rating of 4 kW and contact voltage of 400V AC. The device includes 5 auxiliary contacts configured as 2 normally open and 3 normally closed.
It has screw clamp terminals for secure wiring and mounts easily onto DIN rails. Operating temperature ranges from -25°C to 60°C, suitable for harsh industrial environments. The compact dimensions save panel space. A bright yellow housing and switch position indicator make operation status clear.
The product complies with UL, IEC, and CSA standards ensuring safe operation. Manufactured in Romania, designed for safety functions in industrial settings. Browse our extensive Automation & Control Gear category at EnvMart for more industrial-grade Contactors and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton 3-Pole Contactor has a power rating of 4 kW.
This model supports a contact current of 9A.
The coil voltage of this contactor is 24V DC.
The contact voltage rating for this contactor is 400V AC.
This unit includes five auxiliary contacts, configured as 2 normally open and 3 normally closed.
The dimensions of the contactor are 45mm in length, 117mm in width, and 68mm in depth.
The operating temperature range for this contactor is from -25°C to +60°C.
This model uses screw clamp terminals for secure wiring connections.
Yes, this contactor is compatible with DIN rail mounting, facilitating easy installation.
This contactor complies with UL, IEC, and CSA standards.
The function of this contactor is safety, particularly in controlling induction motors and emergency stop circuits.
The Eaton DILMS9-23(24VDC) is manufactured in Romania.
