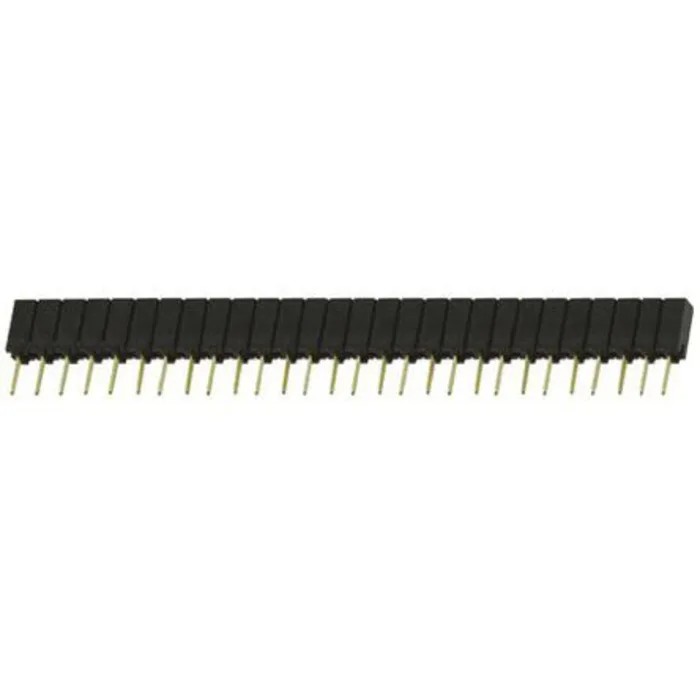

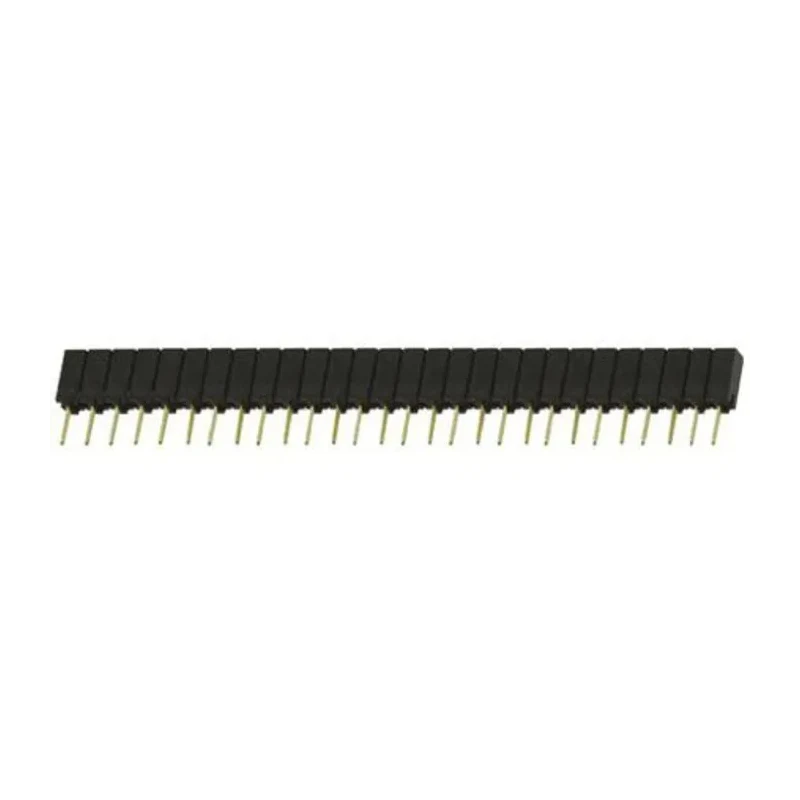

Samtec SSA Series Straight Through Hole PCB Socket 28-Contact 1 Row 2.54 mm Pitch Solder SSA-128-S-G

Samtec SSA-128-S-G is a straight through hole PCB socket designed for board-to-board connections, featuring 28 female contacts arranged in a single row with a 2.54 mm pitch. The socket uses high temperature black PET polyester housing rated UL 94 V-O, ensuring durability under industrial operating environments.

The phosphor bronze contacts plated with 0.25μm gold guarantee reliable electrical conduction and corrosion resistance, supporting current up to 12 A and voltage ratings up to 1 kV. Its through-hole mount type provides secure and stable mechanical connection to printed circuit boards.

The socket's operational temperature range spans from -55°C to 125°C, making it suitable for demanding industrial, electronic, and manufacturing applications where temperature resilience is critical. The straight orientation and single row design optimize space on the PCB while enabling efficient wire-to-board or board-to-board connections.

These SSA series socket strips also incorporate snap strips with standoffs, simplifying PCB assembly processes and enhancing production efficiency. Compatible mating with related series such as TS screw machine terminal strips and BBS/BBL machine board stacking strips allows versatile system integration.

This product is ideal for electronics manufacturing, industrial machinery, telecommunications, and other commercial applications requiring dependable PCB socketing solutions. It facilitates secure and high integrity electrical connections with great mechanical strength.

Constructed with a single row and 28 contacts for reliable connectivity. Features a 2.54 mm pitch and through-hole mount for sturdy PCB attachment. Housing is black PET polyester rated UL 94 V-O for high temperature resistance.

Contacts are phosphor bronze with 0.25μm gold plating ensuring durability and corrosion resistance. Supports an operating voltage up to 1 kV and current rating of 12 A. Operating temperature range is wide from -55°C to 125°C for versatile applications.

Designed as a female connector with straight orientation for board-to-board system configurations. Low cost and snap strip feature facilitate easy assembly and improved production efficiency. Complies with no specific approvals but built to robust standards for industrial use.
