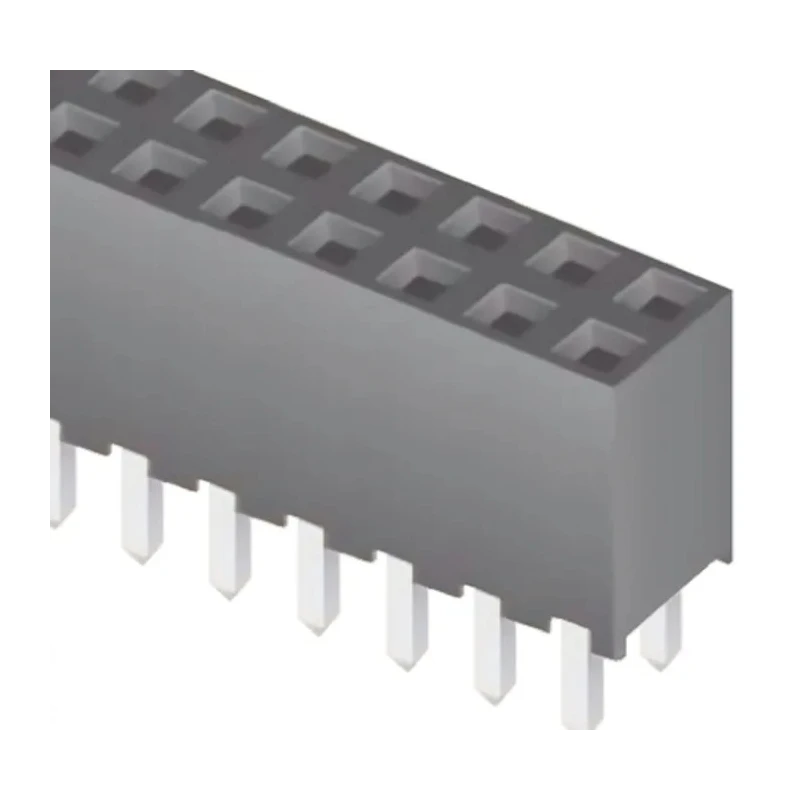

Samtec SQW Series Straight Through Hole PCB Socket, 80-Contact, 2 Row, 2 mm Pitch, 500V, 12A, Through Hole SQW-140-01-L-D

Samtec SQW-140-01-L-D is a high-quality SQW Series straight through hole PCB socket specifically designed with 80 contacts arranged in 2 rows at a 2 mm pitch. This board-to-board socket connector supports currents up to 12 amps and voltages up to 500 volts, making it an ideal solution for demanding electronic assemblies.

The socket features a solder termination type with a through hole mount that enhances mechanical stability when inserted into PCBs. Its housing is manufactured from black liquid crystal polymer (LCP), known for its excellent thermal resistance and durability, suitable for operating temperatures ranging from -55°C to 125°C.

Contacts are made of bronze with a fine 0.25 μm gold plating on the contact area and matte tin plating on the PCB tails, ensuring reliable electrical performance and longevity. The connector system is board-to-board with a female contact gender and a row pitch of 2 mm, supporting precise alignment and robust connection integrity.

This socket is widely applicable for industrial, electronic manufacturing, laboratory instrumentation, telecommunications, and other commercial PCB assembly uses where high reliability and performance are essential.

Rated current: 12A. Voltage rating: 500V. Number of contacts: 80. Pitch: 2 mm. Mount type: Through hole. Housing material: Liquid Crystal Polymer (LCP). Contact plating: Gold on contact area. Operating temperature: -55°C to 125°C.

Set contains: One Samtec SQW Series Straight Through Hole PCB Socket SQW-140-01-L-D with 80 contacts in 2 rows. Explore more high-quality PCB Sockets and connectors at EnvMart to enhance your electronic designs and manufacturing projects.
