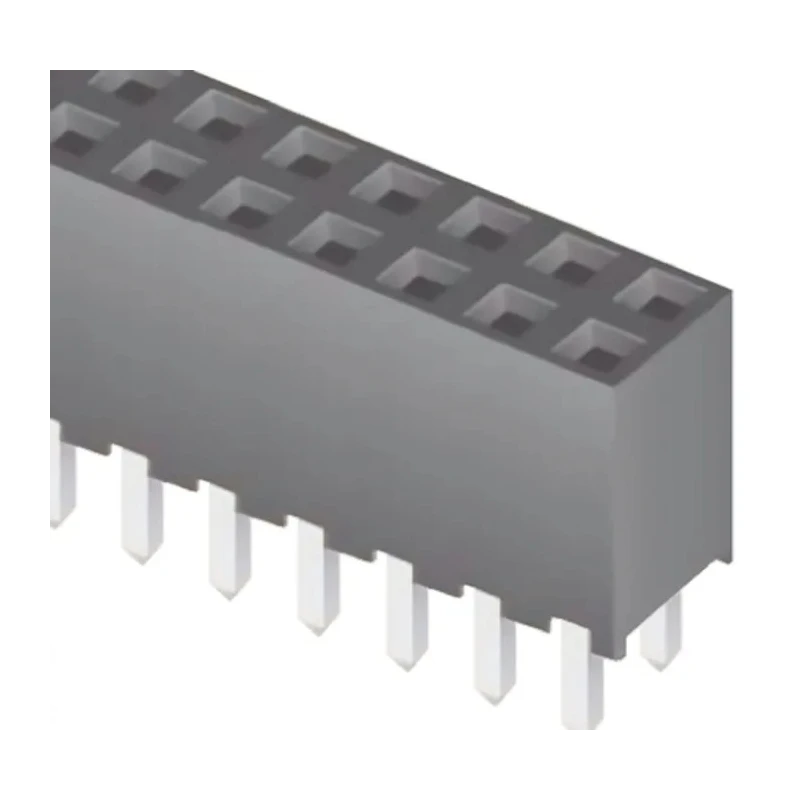

Samtec SQW Series Straight Through Hole PCB Socket 8-Contact 2 Row 2 mm Pitch Solder SQW-104-01-L-D

Samtec SQW-104-01-L-D is a Straight Through Hole PCB Socket from the SQW Series designed for rugged board-to-board connections with 8 female contacts arranged in 2 rows. The 2 mm pitch solder termination system ensures precise PCB mounting and connectivity stability.

Constructed with a black liquid crystal polymer housing, this through-hole mounted socket is engineered to withstand harsh industrial environments. It supports a maximum current of 12A and can operate safely within a wide temperature range from -55°C to 125°C. The bronze contacts are gold-plated to provide excellent conductivity and resistance against corrosion, enhancing long-term reliability.

Operating at voltages up to 500V, this connector is suitable for a multitude of electronics, manufacturing, and industrial applications requiring secure and durable PCB interconnections. The straight orientation and robust build quality enable its use in demanding conditions including industrial controls, testing equipment, communications hardware, and power electronics assemblies.

This product complies with no specific standards or approvals but is ideal for professional electronics manufacturing and prototyping environments. Its design facilitates improved assembly efficiency and product life span.

Constructed with liquid crystal polymer housing for durability and thermal resistance. Features 8 female bronze contacts with 0.25 μm gold plating for optimal conductivity. Supports 12A current capacity with 2 mm pitch between connector rows.

Temperature rated from -55°C to 125°C ensuring operational reliability. Through-hole mount type with straight orientation for secure PCB installation. 500V maximum voltage rating suited for diverse industrial applications.

Black LCP insulator material provides mechanical strength and heat stability. Contact tails plated with matte tin to enhance solderability on PCB. Compatible with mating TMM SMT and through-hole headers for versatile use.

Ideal for electronic manufacturing, laboratory instrumentation, industrial controls, communications, and power supply modules, the Samtec SQW-104-01-L-D PCB Socket offers durable and precise connectivity. Explore the wide range of related PCB Sockets and connectors in our Electronics & Electricals catalog for complete assembly solutions.
