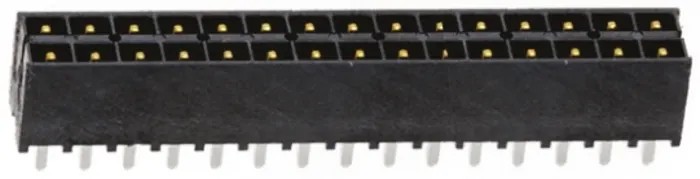

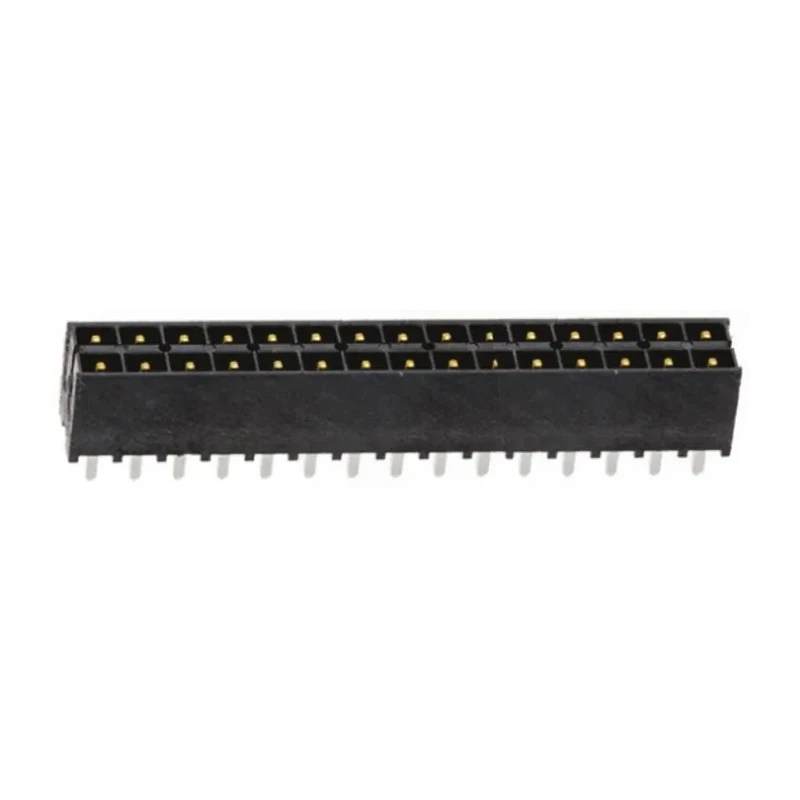

Samtec IPT1 Series Straight Through Hole Shrouded PCB Header 30 Contacts 2 Row 2.54 mm Pitch

Samtec IPT1-115-01-L-D is a series IPT1 shrouded straight through hole PCB header designed for power applications requiring high reliability and ruggedness. This PCB header features 30 gold-plated phosphor bronze contacts arranged in two rows with a standard 2.54 mm pitch, housed within a durable Liquid Crystal Polymer insulator.

The connector supports a current rating of 9A at ambient 20°C and a voltage rating of 777V. It can operate across a broad temperature range from -55°C to 125°C, making it suitable for industrial, electronic manufacturing, and power distribution use cases.

The termination type is solder, and the connector gender is male. The connector system is board-to-board, enabling reliable mating with compatible power sockets such as the Samtec IPS1 series.

The shrouded design protects the contacts, increasing durability and electrical isolation for applications prone to mechanical stress or environmental challenges. Constructed from Liquid Crystal Polymer for high heat resistance and mechanical strength.

Features 30 individual shrouded contacts plated with 0.25μm gold on phosphor bronze for excellent conductivity and corrosion resistance. Rated for carrying up to 9A current and 777V voltage, supporting demanding power applications.

Wide operating temperature range from -55°C to 125°C for use in diverse environments. Designed for through-hole mounting on PCBs with a 2-row, 2.54 mm pitch layout for standard compatibility.

This Samtec IPT1 series PCB Header is ideal for electronic assemblies requiring secure, high-current board interconnections in industrial, manufacturing, communication, and power systems.
