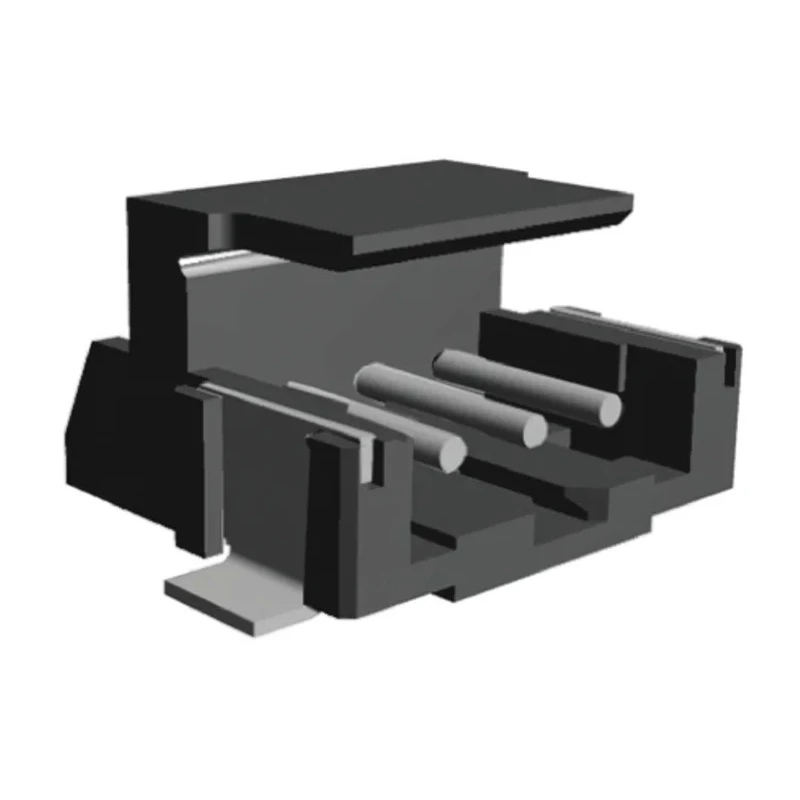

TE Connectivity AMP CT Series Right Angle Surface PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded 292173-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 2A |
| Model | 292173-3 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMP CT |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-9908PBrand: TE ConnectivityManufacturers Part No.: 292173-3 |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a fully shrouded nylon housing for contact protection.
- Includes 3 brass contacts plated with tin ensuring secure electrical connectivity.
- Designed with a right angle orientation and surface mount type for PCB assembly.
- Supports a maximum current of 2A and voltage rating of 125V.
- Operates reliably within temperature range from -30°C to 105°C.
- Incorporates polarization and mating retention for accurate connection.
- Solder tabs on either side provide mechanical stability to the PCB.
- Compact design suitable for sensitive electronic and industrial applications.
Product Description
TE Connectivity 292173-3 AMP CT Series Right Angle Surface PCB Header offers a durable and compact solution for wire-to-board connections with 3 contacts at 2 mm pitch and 1 row configuration. The shrouded design in nylon housing protects the contacts from damage during mating and unmating processes.
This PCB Header is constructed with brass contact material and tin plating, supporting a current capacity of 2A and voltage of 125V. It features solder tabs for a secure mechanical and electrical bond to the PCB, with PCB locating bosses available for precise alignment.
The right angle orientation and surface mount type make this header ideal for compact PCB layouts across various industrial and commercial applications. It operates efficiently within a wide temperature range of -30°C to 105°C, ensuring reliability under diverse environmental conditions.
Key benefits include a miniature design, fully shrouded housing for enhanced protection, and polarization for correct connector mating, making it suitable for business equipment, industrial machines, computers, printers, CCTV systems, audio equipment, and air conditioning units.
Fully shrouded nylon housing protects contacts from scooping. Brass contacts with tin plating for optimal conductivity and reliability. Right angle, surface mount configuration for space-saving PCB designs. Polarization and mating retention ensure secure and accurate connections.
Solder tabs enhance mechanical stability on PCB. Robust temperature rating from -30°C to 105°C. Designed for industrial, commercial, and electronic equipment applications. Includes PCB locating bosses for precise header placement.
TE Connectivity’s AMP CT 2 mm connectors are proven in wire harness applications, providing a reliable and secure interface in various electronic and electrical systems. Discover more about PCB connectors and headers suitable for your manufacturing or repair needs through EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 2A and a voltage rating of 125V.
It operates reliably within a temperature range from -30°C to 105°C.
The housing is made of nylon, while the contacts are constructed from brass and plated with tin.
This model features 3 contacts arranged in a single row configuration.
It uses solder termination for securing connections to the PCB.
The pitch size of this header is 2 mm.
This model is designed with a right angle orientation, suitable for compact layouts.
Yes, it incorporates polarization and mating retention for secure and accurate connections, along with solder tabs for mechanical stability.
It is suitable for various applications including business equipment, industrial machines, computers, printers, CCTV systems, audio equipment, and air conditioning units.
It features a fully shrouded nylon housing that protects the contacts from damage during mating and unmating processes.
The country of origin for this product is India.
This model is designed as a wire-to-board connector system.
