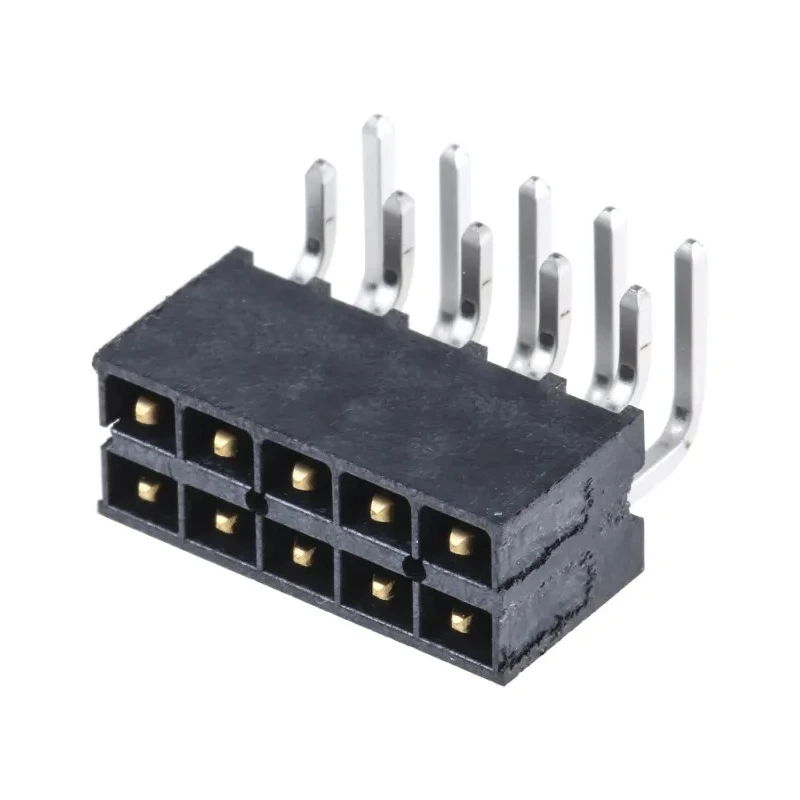

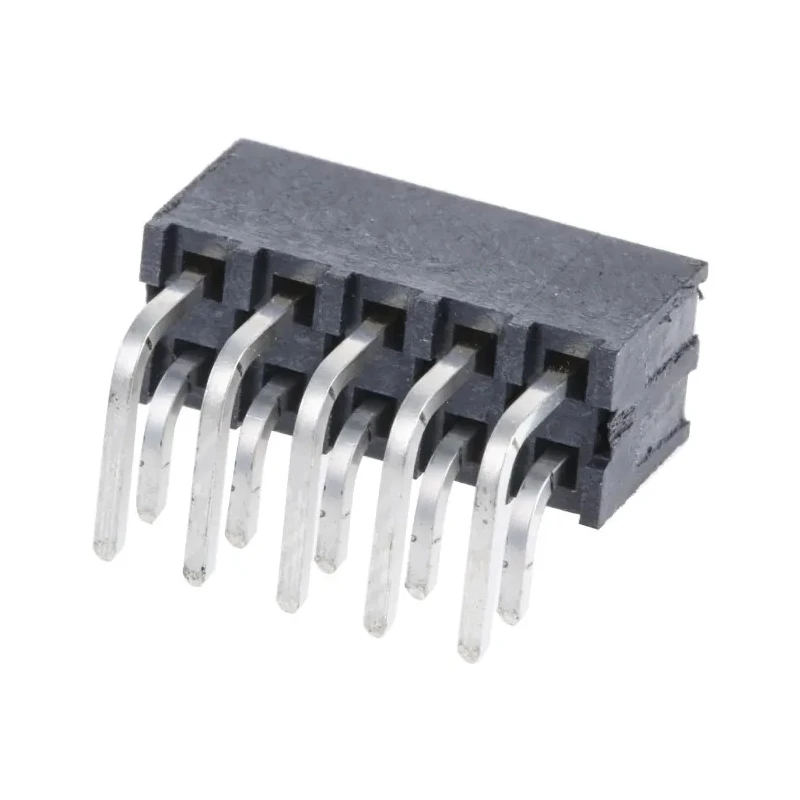

Samtec IPT1 Series Right Angle Through Hole PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 777V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 9A |
| Model | IPT1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPT1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The connector features a shrouded design for secured connections.
- It has a double row with 10 male phosphor bronze contacts plated with 0.25μm gold.
- Designed for through hole mounting with a right angle orientation.
- Supports a maximum current of 9A at 20°C ambient temperature.
- Operates within a temperature range of -55°C to 125°C.
- Housing is constructed of durable liquid crystal polymer ensuring stability.
- Offers a high voltage rating of 777V suitable for power applications.
- Termination is by solder for reliable electrical and mechanical connection.
Product Description
Samtec IPT1 IPT1-105-01-L-D-RA is a right angle through hole PCB header designed for demanding power connector applications requiring a 2.54 mm pitch and two rows of 10 contacts. This shrouded male connector features robust phosphor bronze contacts plated with 0.25μm gold to ensure excellent electrical conductivity and resistance against corrosion. The housing is molded using liquid crystal polymer (LCP), providing high mechanical strength and thermal stability within the operating range of -55°C to 125°C.
This PCB header supports a maximum current rating of 9A at an ambient 20°C and is rated for 777 volts, making it suitable for high power and industrial PCB interconnections. The right angle orientation and through hole mount style facilitate easy PCB integration and alignments with matching IPT1 series sockets. Termination is accomplished via solder, offering secure electrical connection and mechanical durability for long-term use.
Ideal for industrial, electrical, and electronic manufacturing environments, this connector is used for board-to-board power transmission in equipment that demands reliability and compact design. The shrouded design helps protect contacts during handling and installation while ensuring precise mating with its counterpart connectors for enhanced signal integrity.
The connector is designed to mate with IPT1 series shrouded PCB power sockets for modular assembly. Its rugged contact plating coupled with LCP housing withstands mechanical stresses and severe temperature variations. The product is compliant with industrial standards although no formal certifications are listed.
Typical applications include power electronics, industrial automation, HVAC controls, and other specialized electrical assemblies. End users benefit from streamlined assembly processes and improved production efficiency with this ready-for-insertion connector.
Browse more options in the Power Connectors > PCB Header category at EnvMart to find complementary products matching your technical and commercial requirements.
