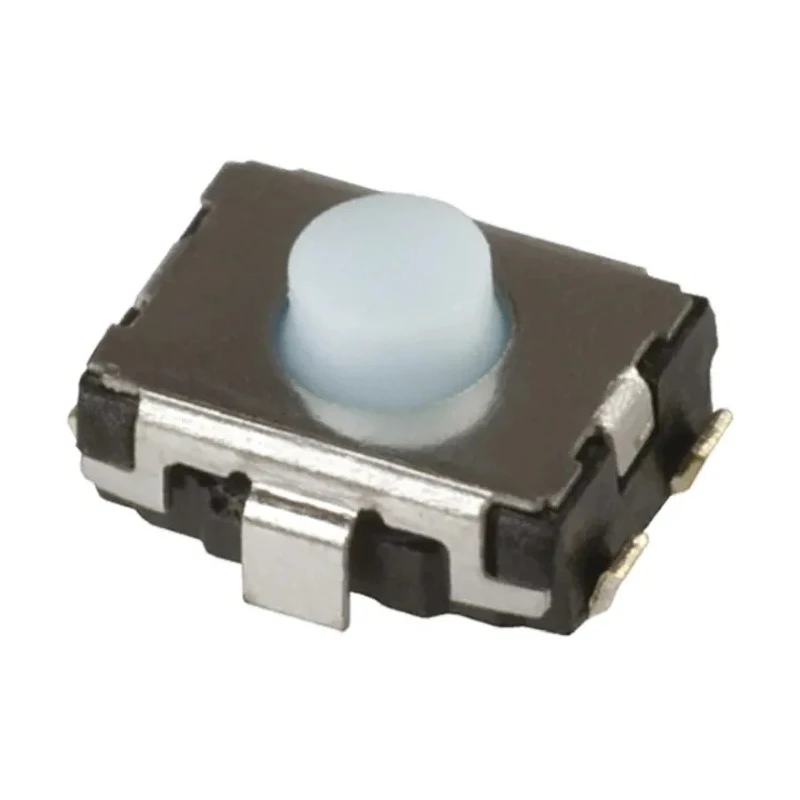

Panasonic Blue Tactile Switch Push Plate 2.5 mm SPST 20mA 15 V dc Surface Mount EVQP2H02B
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.5mm |
| Length | 4.7mm |
| Model | EVQP2H02B |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | EVQP2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Actuator Length | 2.5mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 20mA |
| Operating Force | 2.5N |
| Mechanical Life | 1000000Cycles |
Key Features
- This switch features a blue push plate actuator with a length of 2.5 mm and dimensions of 4.7 mm by 3.5 mm.
- It is designed with surface mount terminals for easy PCB integration.
- The switch operates with an operating force of 2.5 N to provide a sharp, distinct clicking feedback.
- It has a mechanical life rating of 1,000,000 cycles ensuring long-lasting reliability.
- Operating temperature range extends from -40°C to 85°C, suitable for varied industrial environments.
- The compact height of 2.5 mm supports space-saving designs in electrical and automation applications.
- This tactile switch complies with RoHS standards and is made in Japan to stringent quality standards.
Product Description
Panasonic EVQP2H02B Blue Tactile Switch Push Plate 2.5 mm is a high-quality momentary tactile switch designed for electronic and electrical applications requiring low current switching. It features a single-pole single-throw (SPST) contact configuration optimized for 20 mA at 15 V dc, suitable for signal and control circuits.
The blue push plate actuator, measuring 2.5 mm in length, provides a tactile and audible 'click' to confirm operation, while its compact dimensions of 4.7 mm by 3.5 mm enable integration into compact PCB layouts. The surface mount terminal design facilitates automated assembly and durable connections on printed circuit boards.
Engineered to operate reliably over a mechanical lifespan of one million cycles, this tactile switch supports demanding industrial, electrical, automation, and consumer electronic applications. Its operating temperature range from minus 40°C to 85°C allows use in harsh environments, making it suitable for industrial automation, instrumentation, laboratory equipment, and electronic control panels.
The operating force of 2.5 newtons offers a balance between ease of operation and intentional actuation, minimizing accidental presses. The switch also complies with industry standards including RoHS, ensuring environmental compliance.
Manufactured in Japan, the Panasonic EVQP2H02B exemplifies robust build quality and precision engineering. It forms part of the EVQP2 series known for reliability and consistent tactile feedback.
This switch features a blue push plate actuator with a length of 2.5 mm and dimensions of 4.7 mm by 3.5 mm. Surface mount terminal design for PCB integration. Mechanical life of 1,000,000 cycles. Operating temperature range -40°C to 85°C.
Rated for 20mA current at 15 V dc contact voltage. Operating force of 2.5 N for sharp tactile feedback. Compliant with RoHS environmental standards. Manufactured in Japan ensuring high-quality standards.
Ideal for use in industrial automation, electrical equipment, consumer electronics, and instrumentation. Explore more in the Tactile Switch category at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole single-throw (SPST) contact configuration, suitable for low current switching applications.
The operating temperature range extends from -40°C to 85°C, allowing it to function in harsh environments.
It has a mechanical life rating of 1,000,000 cycles, ensuring long-lasting reliability in various applications.
The switch has dimensions of 4.7 mm in length, 3.5 mm in width, and a height of 2.5 mm.
It is rated for a contact current of 20 mA at a contact voltage of 15 V dc, making it suitable for signal and control circuits.
The operating force is 2.5 N, providing a sharp tactile feedback that helps minimize accidental presses during operation.
It features surface mount terminals, which facilitate easy integration into printed circuit boards.
Yes, it complies with RoHS environmental standards, ensuring it meets specific environmental regulations.
This model is ideal for use in industrial automation, electrical equipment, consumer electronics, and instrumentation.
The actuator style is a push plate with a blue color, designed for momentary operation with tactile feedback.
It is part of the EVQP2 series, known for its reliability and consistent tactile feedback in various applications.
This switch is manufactured in Japan, adhering to stringent quality standards.
