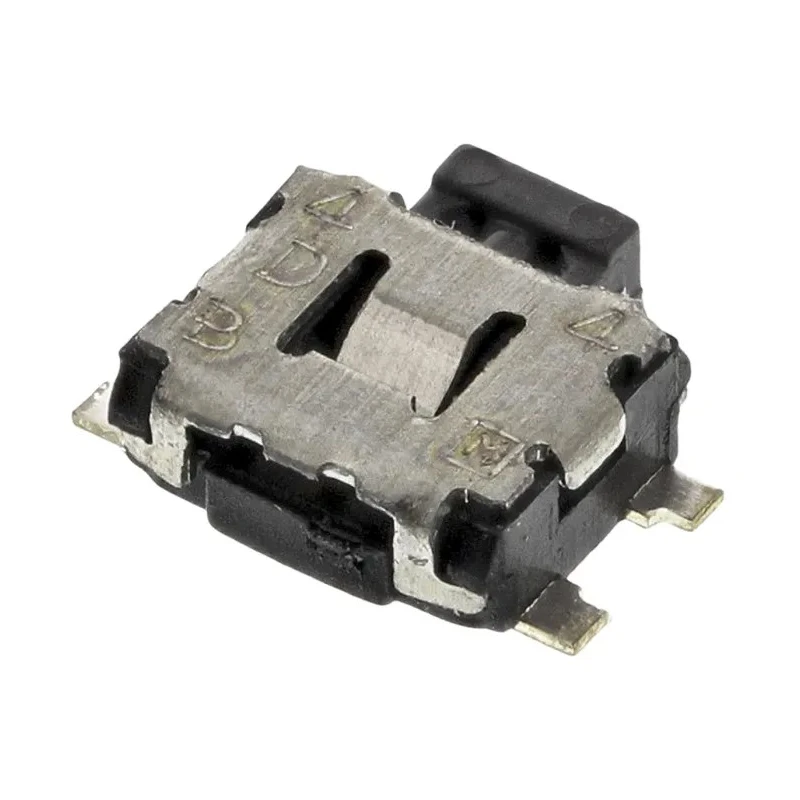

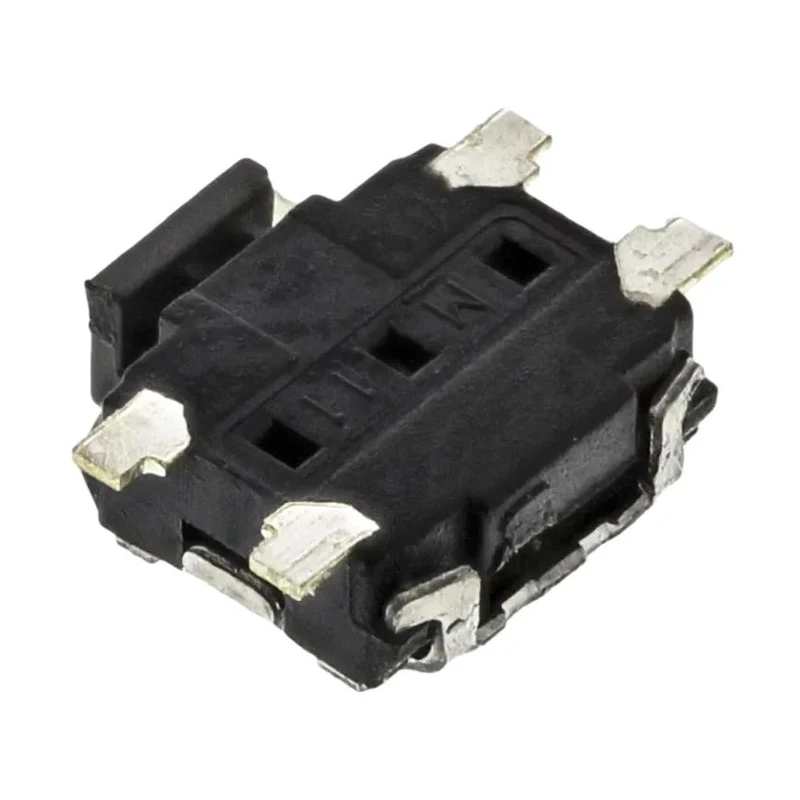

Panasonic Black Tactile Switch Push Plate 1.35 mm SPST 50mA 12 V dc Surface EVQP7A01K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 1.35mm |
| Length | 3.5mm |
| Model | EVQP7A01K |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | EVQP7 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 1.35mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 50mA |
| Operating Force | 2.2N |
| Mechanical Life | 100000Cycles |
Key Features
- The switch offers a momentary operation with a tactile push plate actuator.
- Surface mount terminal type and surface mount mount type for versatile application.
- Black actuator color provides discreet appearance for electronic devices.
- Operating temperature range from -20°C to 70°C for reliable performance.
- Mechanical life rating of 100000 cycles ensures durability and longevity.
- Operating force is 2.2 N for a sharp and clear tactile feedback.
- The switch is RoHS compliant, supporting environmentally friendly applications.
- Suitable for use in electrical, automation, and electronic assemblies requiring momentary tactile feedback.
Product Description
Panasonic EVQP7A01K black tactile switch push plate is a surface mount momentary switch designed for low current applications requiring precise tactile feedback. With an actuator length of 1.35 mm and a contact configuration of SPST, this switch supports electric ratings of 50mA at 12 V dc. It is widely applied in electrical automation, industrial control panels, consumer electronics, and other electronic assemblies demanding reliable momentary switch operation.
The switch offers a robust mechanical life of 100000 cycles and operates reliably within a temperature range of -20°C to 70°C. The 2.2 N operating force ensures a sharp and tactile click feel during actuation. The compact dimensions (3.5 x 2.9 x 1.35 mm) allow installation in space-constrained electronic circuit boards.
This Panasonic SMT tactile switch line, EVQP7 series, features a black push plate actuator color with a surface mount terminal style and mount type. The switch is RoHS compliant, meeting environmental and quality standards.
Industrial applications include electronic devices assembly requiring momentary tactile switches, such as keyboards, instrumentation, and control devices in industrial automation. The surface mount technology supports modern automated manufacturing processes.
The switch provides momentary, SPST type tactile contact suitable for low-current circuits. Black push plate actuator designed for clear tactile feedback and operator assurance. Compact size and surface mount terminal type optimize PCB real estate and assembly.
Wide operating temperature range accommodates harsh industrial environments. High mechanical durability minimizes maintenance due to long lifecycle. Compliance with RoHS supports environmentally responsible manufacturing and disposal.
Refer to Panasonic and EnvMart catalogs for full range of Tactile Switch options and specifications. This product supports efficient manufacturing and reliable machine operation in industrial, electrical, and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range is from -20°C to 70°C, allowing reliable performance in various environments.
This model has a mechanical life rating of 100,000 cycles, ensuring durability and longevity in use.
The switch features a Single Pole Single Throw (SPST) contact configuration, suitable for momentary applications.
The operating force is 2.2 N, providing a sharp and clear tactile feedback during operation.
The dimensions of this model are 3.5 mm in length, 2.9 mm in width, and 1.35 mm in height, making it compact for installation.
The maximum contact current is 50 mA, suitable for low current applications.
It uses a surface mount type, allowing for easy integration into circuit boards.
Yes, the switch is RoHS compliant, supporting environmentally friendly applications.
The actuator style is a push plate, designed for momentary operation with tactile feedback.
It is suitable for electrical automation, industrial control panels, and consumer electronics requiring momentary tactile feedback.
The actuator color is black, providing a discreet appearance for electronic devices.
The minimum operating temperature is -20°C, allowing it to function in cooler environments.
