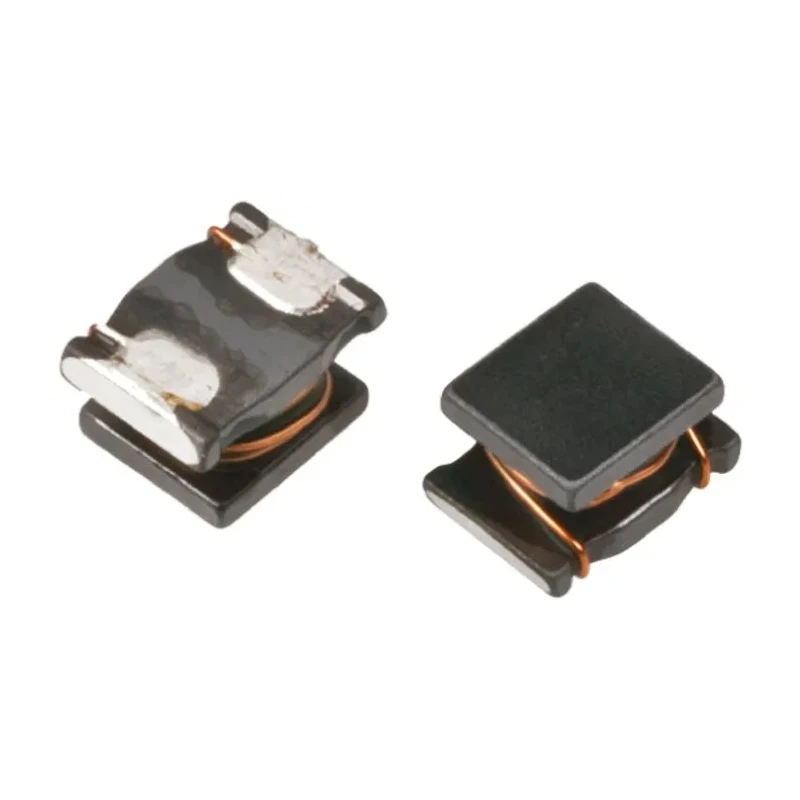

Murata Unshielded Wirewound Surface Mount Inductor 1.5 mH ±5% 40 mA 1812 Ferrite Core LQH43MN152J03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43MN152J03L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1.5mH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 40mA |
| Maximum DC Resistance | 37Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1.6MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- The inductor has a maximum DC current rating of 40 mA.
- It is designed in a compact 1812 package size with dimensions Length 4.5 mm, Height 2.6 mm, and Depth 3.2 mm.
- The core material is ferrite, providing excellent magnetic properties.
- The inductor construction uses wirewound technology for high quality and low DC resistance.
- Operates reliably from -40°C to 85°C, suitable for various industrial and commercial applications.
- Features a maximum self-resonant frequency of 1.6 MHz and a minimum quality factor (Q) of 40.
- Termination style is solder, compatible with standard PCB assembly processes.
- The product is RoHS compliant and moulded for durability.
Product Description
Murata LQH43MN152J03L is an unshielded wirewound surface mount inductor with a ferrite core offering an inductance of 1.5 mH ±5% tolerance. It supports a maximum DC current of 40 mA, making it suitable for precision filtering and energy storage in electronic circuits.
The 1812 package size with dimensions 4.5 mm length, 2.6 mm height, and 3.2 mm depth ensures compact PCB footprint, while the ferrite core material enhances magnetic performance. Wirewound construction delivers low DC resistance of 37 Ω, aiding efficient power handling and minimal losses.
This inductor is designed for industrial and commercial applications requiring reliable operation from -40°C up to 85°C. Its maximum self-resonant frequency of 1.6 MHz and minimum quality factor of 40 ensure suitability in high-frequency circuits such as power supplies, signal processing, and telecommunications equipment.
The component features solder termination style enabling simple mounting on printed circuit boards using standard surface mount technology. Being RoHS compliant and moulded offers durability and adherence to environmental standards.
Originating from Japan, this Murata inductor guarantees robust manufacturing quality. It is ideal for use in consumer electronics, industrial controls, and other precision electronic assemblies.
The inductor supports a maximum DC current of 40 mA. Compact 1812 surface mount package with ferrite core material. Wirewound construction ensures low DC resistance and high quality. Wide operating temperature range from -40°C to 85°C.
High self-resonant frequency of 1.6 MHz and quality factor of 40 for effective filtering. Solder termination style for easy PCB assembly. RoHS compliant and moulded for enhanced durability. Manufactured in Japan with strict quality control.
Explore more high-quality Surface Mount Inductors and electronic components from Murata and other renowned brands on EnvMart to meet your industrial, laboratory, and commercial electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1.5 mH with a tolerance of ±5%.
The maximum DC current rating for this inductor is 40 mA.
The dimensions of the 1812 package are 4.5 mm in length, 2.6 mm in height, and 3.2 mm in depth.
It has a maximum self-resonant frequency of 1.6 MHz.
The minimum quality factor (Q) for this inductor is 40.
This inductor operates reliably within a temperature range of -40°C to 85°C.
The termination style for this model is solder, which is compatible with standard PCB assembly processes.
The core material of this inductor is ferrite, which enhances its magnetic properties.
It uses wirewound construction technology, which provides low DC resistance and high quality.
Yes, this inductor is RoHS compliant, adhering to environmental standards.
This model is manufactured in Japan, ensuring robust manufacturing quality.
It is suitable for various industrial and commercial applications, particularly in precision filtering and energy storage in electronic circuits.
