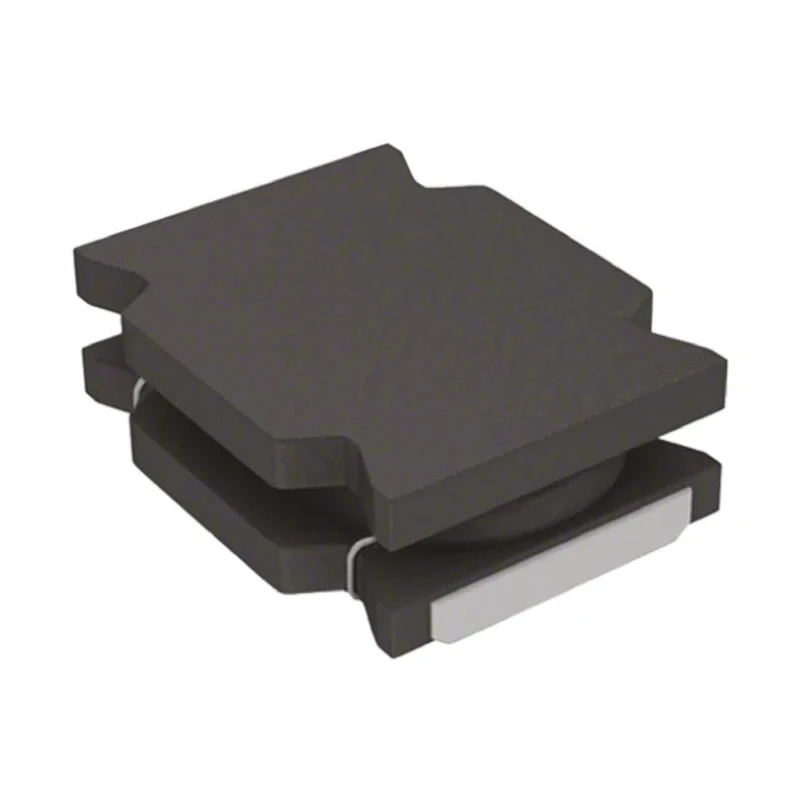

Murata Unshielded Wirewound Surface Mount Inductor 22 μH ±20 % 130 mA Idc 0806 Package LQH2MCN220M52L

Free Delivery in India | Lowest Global Shipping Charges

Murata Unshielded Wirewound Surface Mount Inductor 22 μH ±20 % 130 mA Idc 0806 Package LQH2MCN220M52L

Name: Murata Unshielded Wirewound Surface Mount Inductor 22 μH ±20 % 130 mA Idc 0806 Package LQH2MCN220M52L
Brand: Murata
SKU: 370286
Price: 0.15 USD
Availability: InStock



Category Surface Mount Inductors Brand Murata Condition New

Specifications

Country of Origin	India
Size	2.0x1.6mm (0806)
Brand	Murata
Height	0.65mm
Length	2mm
Model	LQH2MCN220M52L
Depth	1.6mm
Packaging	Embossed Tape
Series	LQH
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	22μH
Standards/Approvals	RoHS
Package/Case	0806
Maximum DC Current	130mA
Pin Count	2
Maximum DC Resistance	7.15Ω
Inductance Tolerance	±20 %
Termination Style	Solder
Maximum Self Resonant Frequency	30MHz
Inductor Construction	Wirewound

Key Features

Designed with a ferrite core for enhanced magnetic performance.
Compact 0806 package size measuring 2.0 x 1.6 mm with a height of 0.65 mm.
Maximum operating temperature of 85°C suitable for various electronic applications.
Embossed tape packaging ensures ease of surface-mount assembly.
Low maximum DC resistance of 7.15 Ω to improve efficiency.
Constructed with wirewound inductor technology for stability.
Termination style is solder for reliable mounting.
RoHS compliant ensuring environmental safety.

Product Description

Murata LQH2MCN220M52L is a high-quality unshielded wirewound surface mount inductor featuring a ferrite core. This 0806 package SMT component measures 2.0 x 1.6 mm with a maximum height of 0.65 mm, designed for reliable use in various industrial and electronic assemblies where compact and efficient inductors are required.

It provides an inductance of 22 μH with a tolerance of ±20 %, supporting a maximum DC current of 130 mA. The low maximum DC resistance of 7.15 Ω ensures efficient power management in circuits.

Performance is maintained up to a maximum operating temperature of 85°C, making it suitable for a broad range of commercial and industrial applications including power regulation, signal filtering, and noise suppression in electronic devices.

The component is supplied in embossed tape packaging, facilitating automated surface mount placement and assembly processes. Its solder termination style ensures excellent solderability and mechanical stability on PCBs.

Murata guarantees compliance with RoHS environmental standards, confirming its eco-friendly manufacturing and usage. Ferrite core construction for stable inductance. Compact 0806 size optimizes PCB space. Wirewound construction enhances reliability and precision.

Suitable for industrial, commercial, and consumer electronics applications. Efficient power handling with low resistance and inductance tolerance. Embossed tape packaging supports automated manufacturing. RoHS compliant ensuring environmentally safe usage.

This wirewound surface mount inductor is ideal for your industrial component needs, providing reliable inductance performance in a small form factor. Explore similar components and trusted Murata products within the Electronics & Electricals section on EnvMart.
