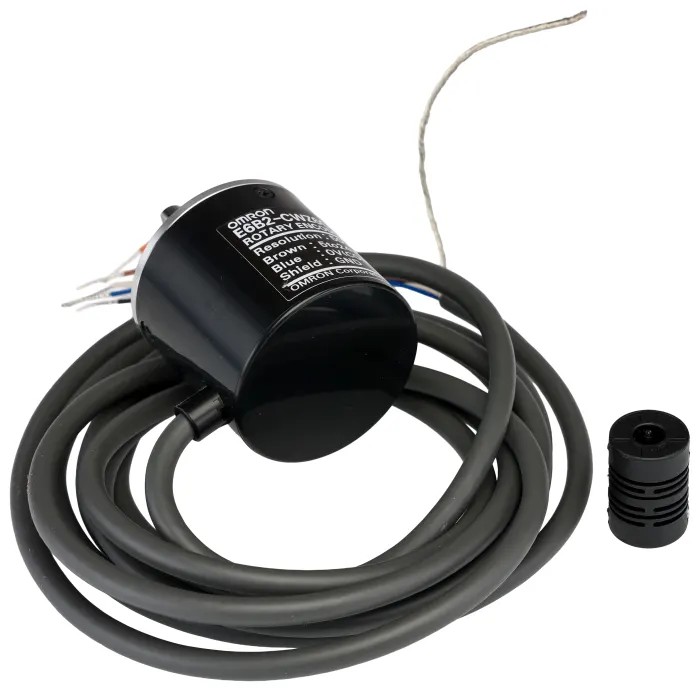

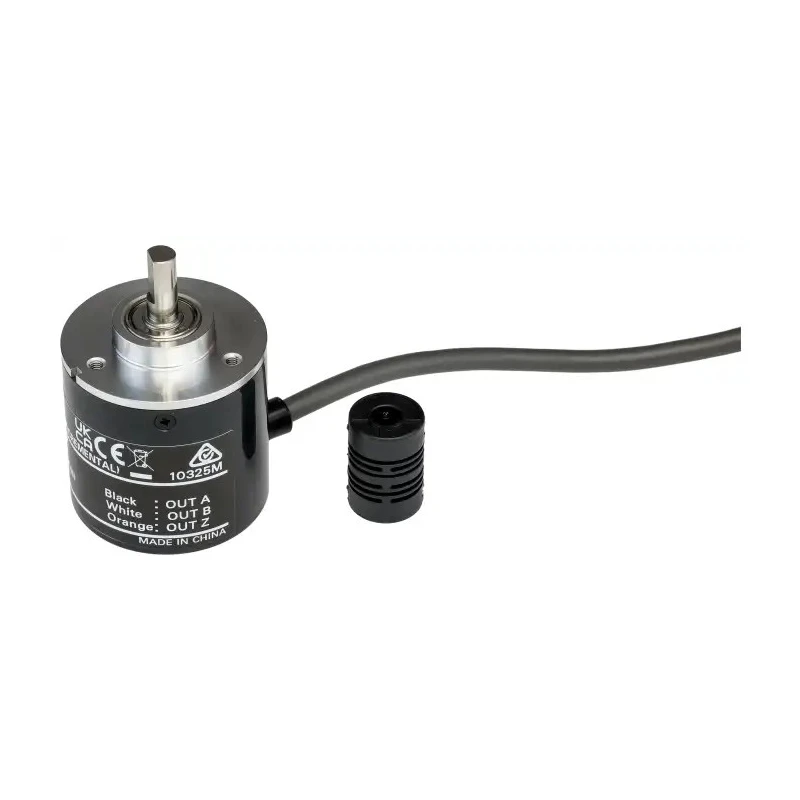

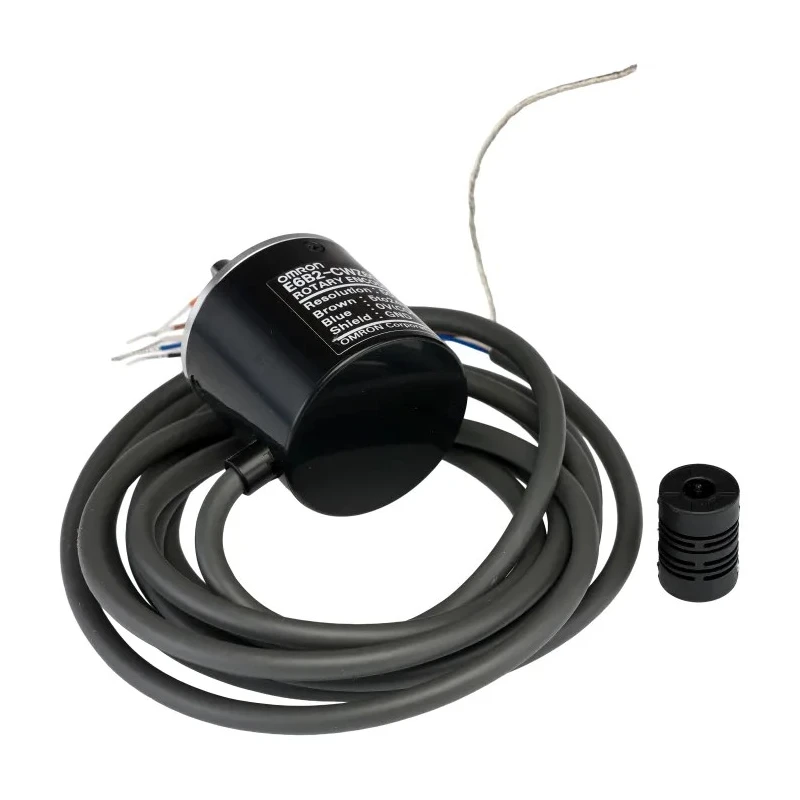

Omron E6B2 Series Incremental Encoder 24V DC 500 Pulses Per Revolution NPN Open Collector Signal Solid E6B2-CWZ6C 500P/R 2M
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | E6B2-CWZ6C 500P/R 2M |
| IP Rating | IP50 |
| Mount Type | Chassis |
| Series | E6B2 |
| Overall Width | 59mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Shaft Diameter | 6mm |
| Overall height | 59mm |
| Switching Frequency | 100kHz |
| Shaft Type | Solid |
| Terminal type | Cable |
| Pulses per Revolution | 500ppr |
| Standards/Approvals | IEC |
| Maximum Supply Voltage | 24V dc |
| Overall Depth | 40mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | NPN Open Collector |
Key Features
- This encoder uses an NPN Open Collector output signal for broad control system compatibility.
- The solid shaft measures 6mm in diameter, suitable for various industrial mounts.
- Supports a maximum rotational speed of 6000 rpm ensuring high-speed operation.
- Operates reliably in temperatures ranging from -10°C to 70°C for demanding environments.
- The device has an IP50 protection rating to limit dust ingress while enabling easy installation.

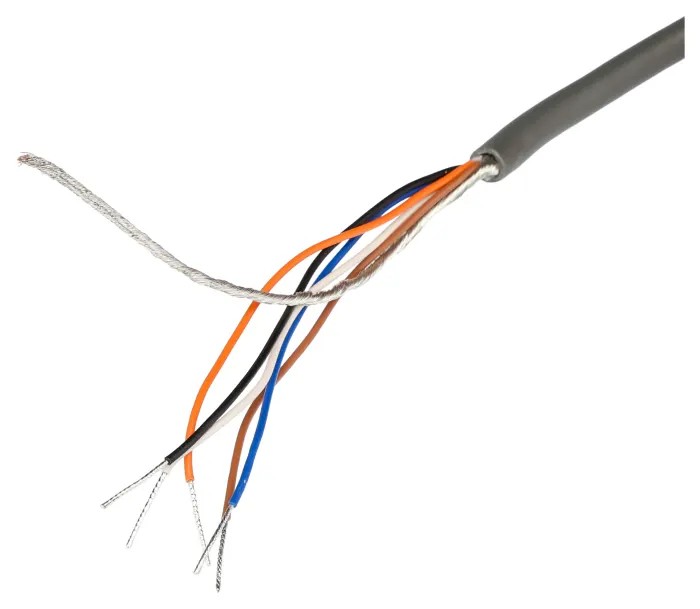

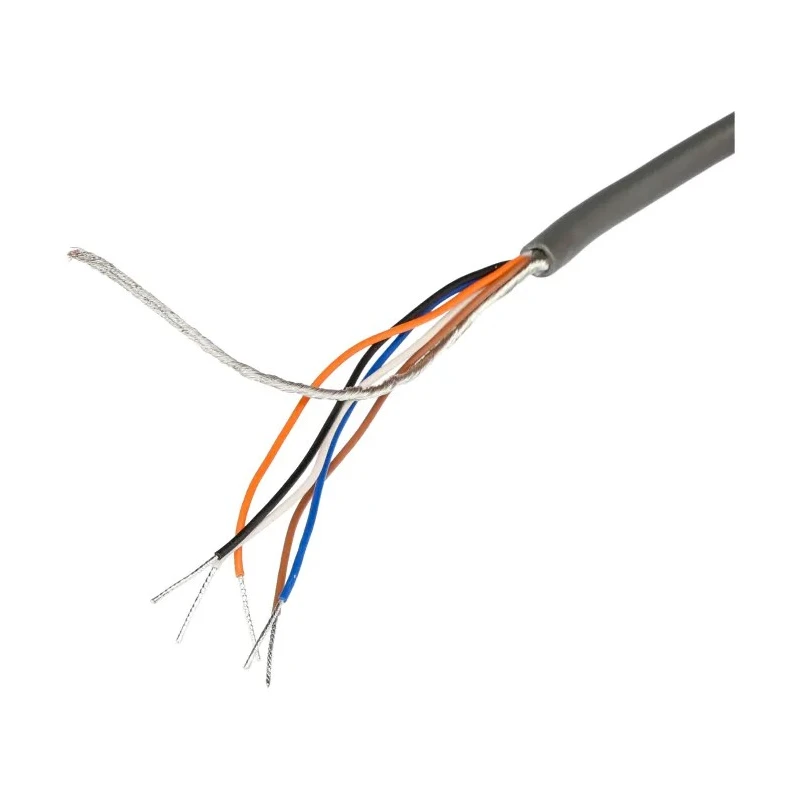

- Features chassis mounting with a cable terminal type for straightforward electrical connections.
- Includes built-in protection circuits against load short-circuit and reverse polarity for enhanced durability.
- Ideal for robotics, conveyor systems, and CNC machinery requiring accurate rotational feedback.
Product Description
Omron E6B2-CWZ6C 500P/R 2M is a high-precision Incremental Encoder designed for industrial automation and motion control applications. Operating with a supply voltage of 24V DC, this encoder delivers 500 pulses per revolution (PPR), providing accurate speed and position feedback essential for robotics, CNC machinery, and conveyor systems.
The encoder features a durable solid shaft with a 6mm diameter and supports rotational speeds up to 6000 rpm. Its chassis mounting and cable terminal make installation straightforward, while the IP50 rating offers moderate protection against dust ingress in industrial environments.
This device incorporates an NPN open collector output signal type, ensuring compatibility with a broad range of control systems. Enhanced with load short-circuit and reverse polarity protection circuits, it guarantees operational reliability under harsh conditions.
The encoder's operating temperature range from -10°C to +70°C enables stable performance across diverse climatic and industrial settings. Users benefit from an easy-to-adjust zero index setting accompanied by an origin indicating function, simplifying the alignment and calibration process during installation and maintenance.
Applications include precise movement control in robotics, reliable position feedback on conveyor systems, and accurate tracking in CNC machinery. The metal disk construction also provides improved shock resistance, enhancing overall device longevity.
This encoder supports a wide supply voltage range from 5 to 24 V DC. High-resolution measurements with 500 pulses per revolution are achieved. The product can withstand radial loads of up to 30N and thrust loads of 20N. It includes protection circuits for load short-circuit and reverse connection.
The operating temperature span of -10°C to 70°C suits various industrial terrains. Easy zero index adjustment with origin indication enhances usability. Solid shaft of 6mm diameter ensures mechanical stability. Chassis mounting type with cable terminal simplifies integration.
IP50 rated protection against dust ingress supports industrial use. Explore our comprehensive range of industrial sensors and encoders on EnvMart to find solutions tailored for your precise automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum rotational speed of 6000 rpm, allowing for high-speed operation in various applications.
It features an NPN Open Collector output signal type, ensuring compatibility with a broad range of control systems.
The encoder operates reliably in temperatures ranging from -10°C to 70°C, suitable for diverse industrial environments.
It has a solid shaft with a diameter of 6mm, which is compatible with various industrial mounts.
This encoder has an IP50 protection rating, which limits dust ingress and supports its use in industrial settings.
The E6B2-CWZ6C delivers 500 pulses per revolution (PPR), providing accurate speed and position feedback.
It features a chassis mounting type with a cable terminal, simplifying installation and electrical connections.
This encoder operates with a maximum supply voltage of 24V DC, making it suitable for various control systems.
The switching frequency of the E6B2-CWZ6C is 100 kHz, allowing for rapid signal processing in applications.
It can withstand radial loads of up to 30N and thrust loads of 20N, ensuring stability during operation.
This model is compliant with IEC standards, ensuring its suitability for industrial applications.
Yes, it includes built-in protection circuits against load short-circuit and reverse polarity for enhanced operational reliability.
