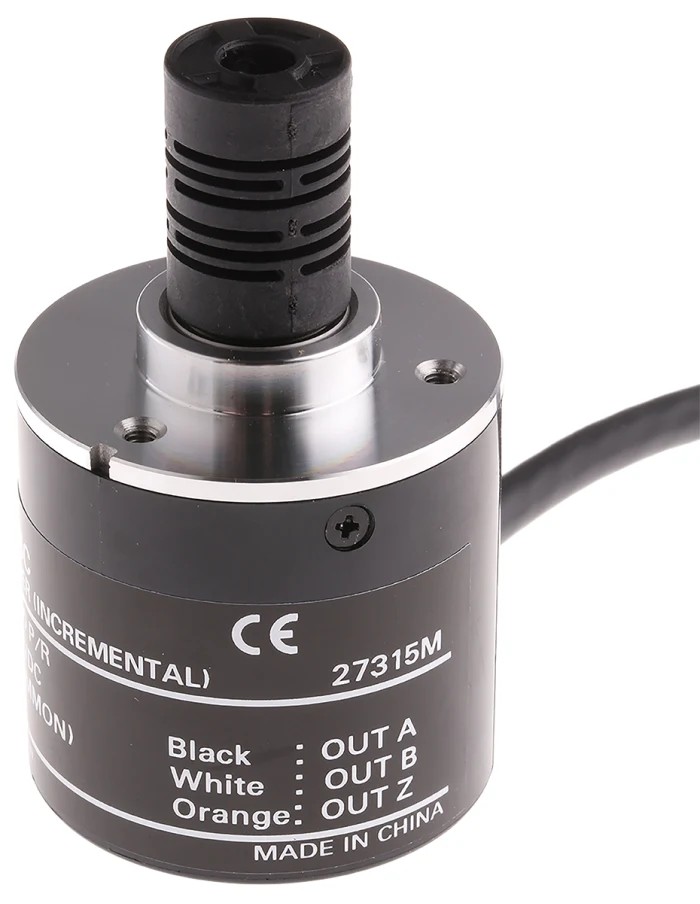

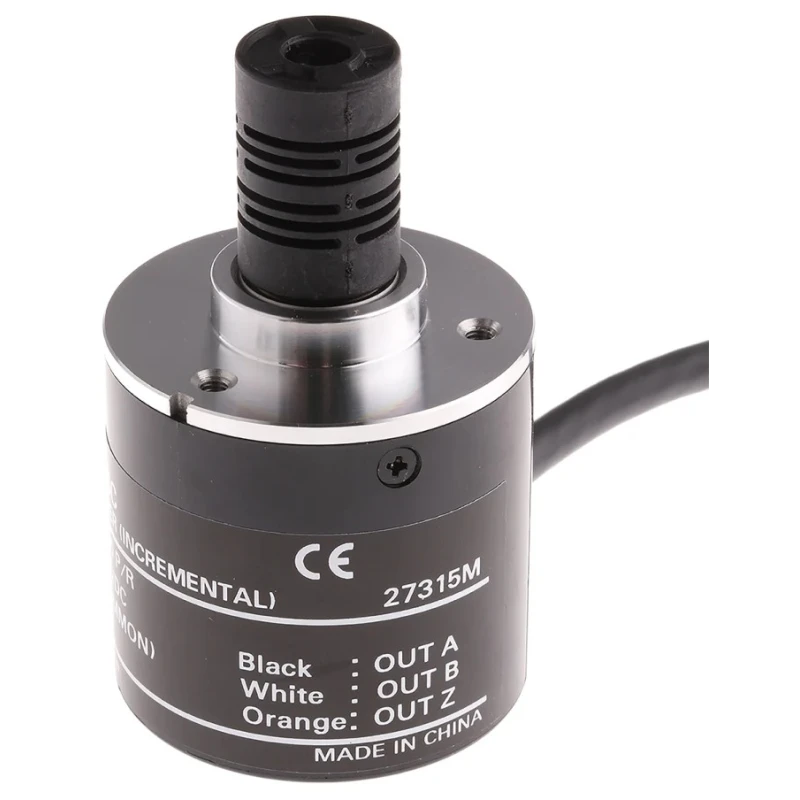

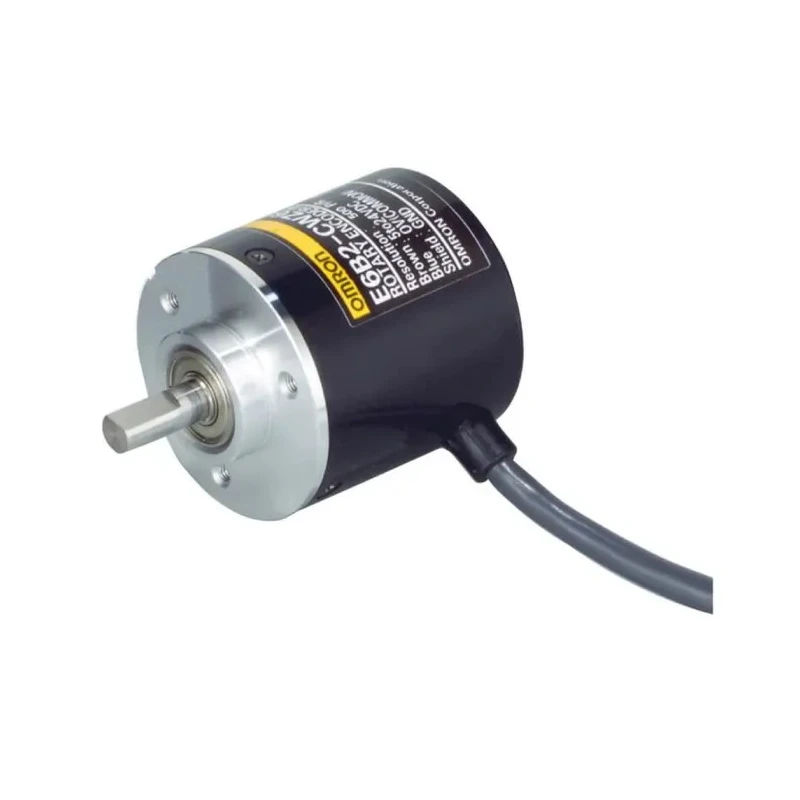

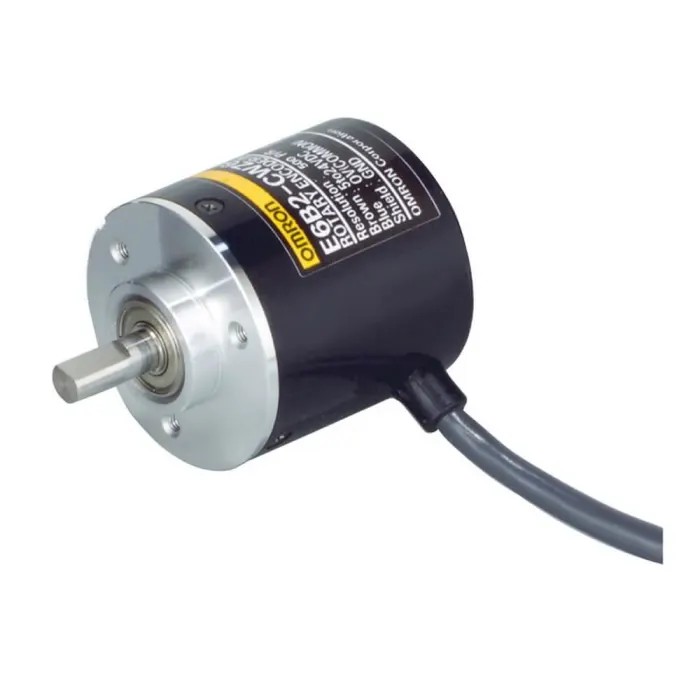

Omron E6B2 Series Incremental Encoder 24V DC, 360 Pulses Per Revolution, NPN Open Collector Output E6B2-CWZ6C 360P/R 2M

Omron E6B2-CWZ6C 360P/R 2M incremental encoder provides accurate and reliable rotary position sensing with 360 pulses per revolution. Operating at 24V DC, this encoder features a robust solid shaft of 6 mm diameter, offering compatibility with various industrial machinery and automation systems.

Its maximum speed rating of 6000 rpm ensures high-performance operation for demanding applications. The output signal is of NPN open collector type, facilitating easy integration with a wide range of control equipment.

The device is rated IP50, providing protection against dust ingress, making it ideal for indoor industrial environments. With a switching frequency of 100kHz, it supports rapid and precise signal processing essential for modern motion control.

This encoder can handle substantial mechanical loads, with a radial load capacity of 30N and axial thrust capacity of 20N, granting versatility in mounting and operational conditions. An adjustable zero index allows for straightforward calibration, improving setup efficiency.

Compact dimensions of 40 mm depth, 59 mm height, and 40 mm width enable fitting into constrained spaces. This encoder is well-suited for use in CNC machinery for precise positioning, robotics requiring accurate motion feedback, conveyor speed monitoring, and other automated manufacturing processes demanding reliable encoder performance.

Operates at 24V DC for stable voltage supply. 360 pulses per revolution delivers fine resolution encoding. NPN open collector output compatible with various controllers. Maximum rotational speed of 6000 rpm supports high-speed applications.

IP50 rating offers dust protection for indoor environments. Supports switching frequency up to 100kHz for efficient signal handling. Capable of withstanding radial load of 30N and thrust load of 20N. Zero index adjustment simplifies calibration and system setup.

Compact size dimensions optimize space usage in installations.

This Omron Incremental Encoder is a vital component in industrial automation, motion control, water treatment plants, manufacturing lines, and laboratory equipment where precise rotational measurement is critical. Its robust build and technical capabilities make it a dependable choice for professionals seeking efficiency and accuracy.
