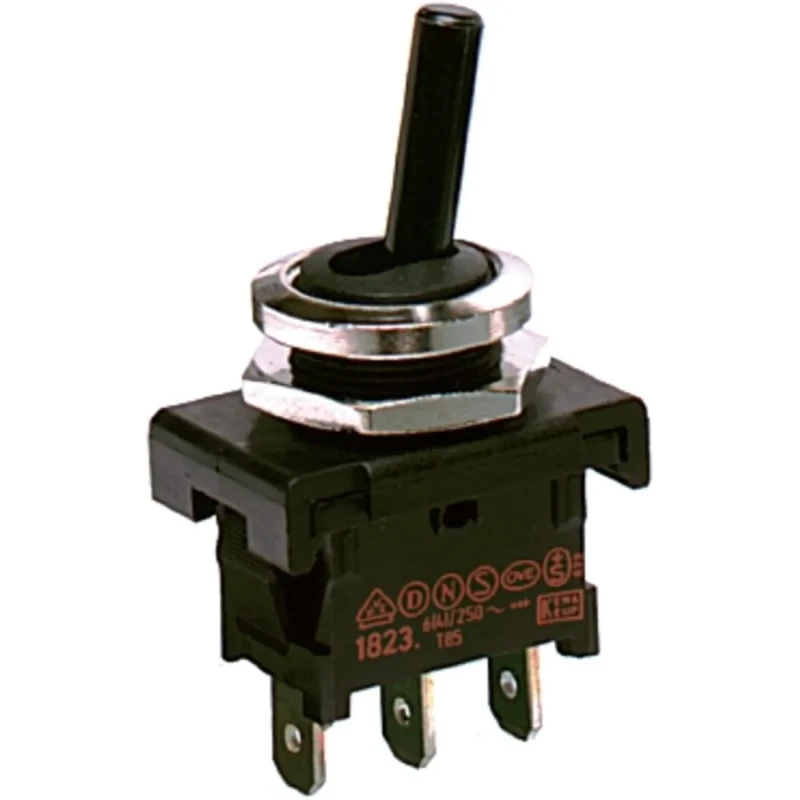

Marquardt Toggle Switch Panel Mount On-On SPDT Tab Terminal 12 V dc 250 V ac 1823.1101

Marquardt 1823.1101 Toggle Switch is a precision-engineered panel mount toggle switch designed for robust On-On SPDT switching applications. This switch supports a contact current of 6 A and is rated for 12 V dc and 250 V ac, making it suitable for various electrical and automation systems. The actuator is made from durable polyamide with a length of 14 mm, providing ergonomic operation and reliable tactile feedback.

Built to withstand industrial environments, the switch features an IP40 rating offering protection against ingress of solid foreign objects larger than 1 mm. It is intended for panel mounting with convenient tab terminal connections facilitating easy wiring and installation in control panels.

The compact dimensions of 44.4 mm height, 23.9 mm length, and 16.6 mm width allow integration into space-constrained applications. Operable across a temperature range from -20°C to 55°C, this switch suit a variety of environments including industrial automation, electrical controls, and machinery interfaces.

Designed for longevity, the 1823.1101 model provides a mechanical life of 50,000 cycles, ensuring dependable performance in demanding settings. It complies with international standards including CSA, EN, ENEC, RoHS, UL, and VDE, reflecting high safety and quality benchmarks.

Applications include control panels, machine interfaces, automation systems, and other scenarios where a reliable, compact On-On SPDT Toggle Switch is required. The switch’s robust construction combined with standardized specifications make it ideal for industrial and commercial electrical use.

Provides SPDT contact configuration for versatile switching. Switch operation type is On-On useful for changeover functions. Supports 6 A contact current rating for reliable electrical load handling. Polyamide actuator material with a 14 mm length ensures durability and ease of use.

Panel mount design simplifies installation in control panels. Rated IP40 for solid particle protection in industrial environments. Operating temperature range from -20°C to 55°C suits diverse environments. Compact dimensions facilitate integration in tight spaces.

Mechanical life rated at 50,000 cycles for long operational reliability. Conforms to CSA, EN, ENEC, RoHS, UL, and VDE standards for safety and quality. Explore more electrical switches and automation components in the Electronics & Electricals category at EnvMart for compatible and supplementary products.
