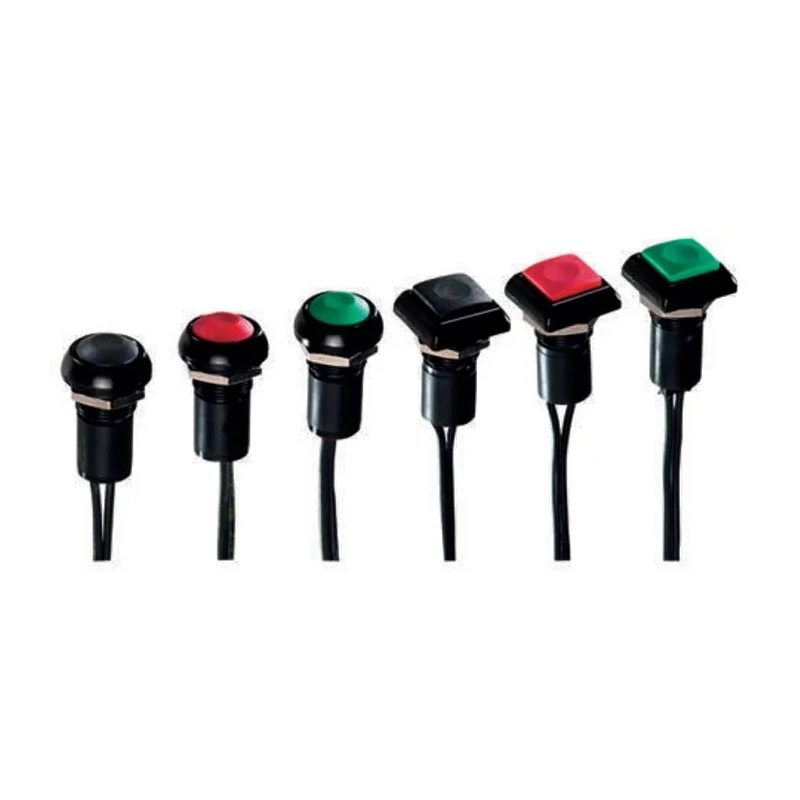

APEM IP Series Momentary Push Button Switch Panel Mount 13.6 mm Cutout SPST IP67 IPR3FAD-9
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | IPR3FAD-9 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Orange |
| Actuator Style | Dome |
| Switch Contact Current | 5A |
| Very robust | IK06 |
Key Features
- This push button switch features a 13.6 mm panel cutout diameter for standard installation.
- The contact configuration is SPST providing single pole single throw switching.
- It is a sealed switch rated IP67, offering protection against dust and water ingress for harsh environments.
- The actuator color is orange with a dome style, designed for efficient tactile feedback.
- The terminals use through hole mounting for robust and reliable connections.
- This switch can withstand operating temperatures ranging from -40°C up to 85°C.
- It is very robust with IK06 impact resistance, suitable for industrial use.
- Nominal switch contact current is 5 amperes AC for general control applications.
Product Description
APEM IPR3FAD-9 is a sealed momentary push button switch designed for panel mounting applications requiring high ingress protection and durability. This device features a 13.6 mm diameter cutout for panel fitting and offers a single pole single throw (SPST) contact configuration. Its orange dome-shaped actuator provides excellent tactile feedback and is suitable for use in industrial and harsh environmental conditions.
The switch holds an IP67 rating, ensuring total protection against dust and water, making it ideal for applications requiring robust environmental sealing. Its rugged design meets IK06 impact standards providing resistance to mechanical shocks. The through hole terminal type facilitates secure electrical connections and mounting.
This push button is suitable for operations in a wide temperature range from -40°C to 85°C. It carries a switch contact current rating of 5 amperes AC, making it appropriate for a variety of control circuit requirements. Additionally, the switch complies with RoHS directives, ensuring environmental and safety standards, and is manufactured in France.
Typical uses include electrical panel installations, automation systems, manufacturing controls, and equipment where reliable momentary switching with environmental protection is essential.
This push button switch features a 13.6 mm panel cutout diameter for standard installation. The contact configuration is SPST providing single pole single throw switching. It is a sealed switch rated IP67, offering protection against dust and water ingress for harsh environments.
The actuator color is orange with a dome style, designed for efficient tactile feedback. The terminals use through hole mounting for robust and reliable connections. This switch can withstand operating temperatures ranging from -40°C up to 85°C.
It is very robust with IK06 impact resistance, suitable for industrial use. Nominal switch contact current is 5 amperes AC for general control applications. The product is RoHS compliant and manufactured in France ensuring quality standards.
Browse the wide selection of Push Button Switches and components at EnvMart for industrial and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The required panel cutout size for the APEM IPR3FAD-9 switch is 13.6 mm.
This model features a single pole single throw (SPST) contact configuration.
The switch has an IP67 rating, providing protection against dust and water ingress.
It can operate in temperatures ranging from -40°C to 85°C.
The nominal switch contact current is rated at 5 amperes AC.
The actuator is dome-shaped and colored orange, designed to provide efficient tactile feedback.
The switch utilizes through hole mounting for its terminals, ensuring robust connections.
This switch has an IK06 impact resistance rating, making it suitable for industrial use.
Yes, it complies with RoHS directives, ensuring it meets environmental and safety standards.
This switch is manufactured in France.
Typical applications include electrical panel installations, automation systems, and manufacturing controls.
This switch belongs to the IP series of APEM products.
