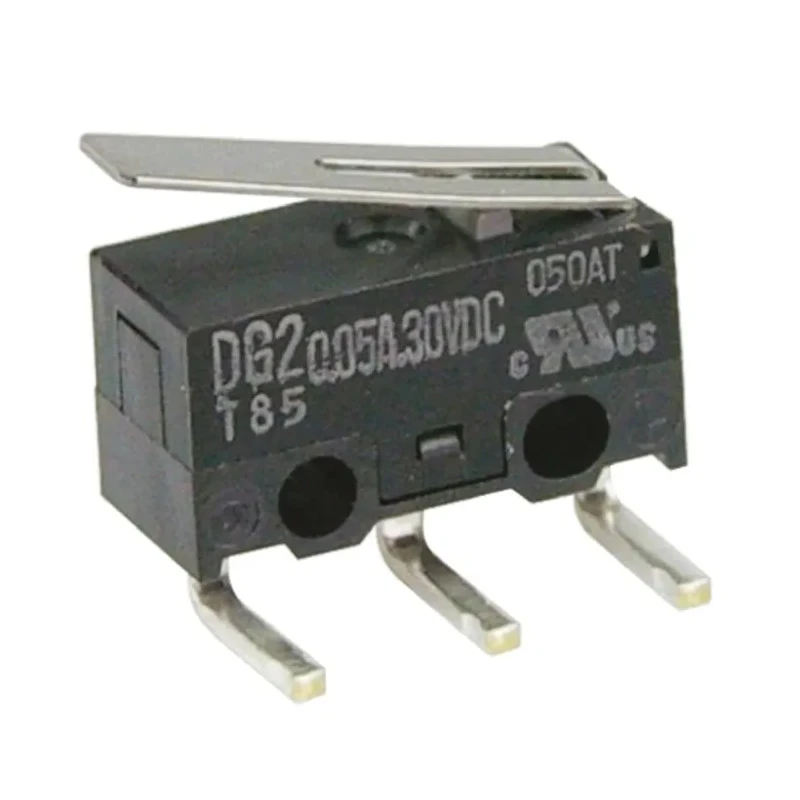

ZF Hinge Lever Micro Switch, Right Angle PCB Terminal, 50mA Current, 125V AC, SPDT Contact Configuration, IP40 DG23-B2LA

ZF DG23-B2LA Hinge Lever Micro Switch is a durable precision switch designed with a right angle PCB terminal and a SPDT (Single Pole Double Throw) contact configuration for versatile electrical control applications. This sub-miniature microswitch is engineered with a polyphenylene sulphide housing, providing excellent strength and electrical insulation properties.

The switch is rated for a contact current of 50mA and an AC voltage of 125V, suitable for low power circuit operations. Its hinge lever actuator ensures dependable mechanical action with an operating force of 0.44N, facilitating responsive switching.

Operating reliably across a broad temperature range from -25°C to +85°C, the device maintains performance in diverse industrial and commercial environments. Its IP40 protection rating shields against solid particles greater than 1mm, safeguarding internal components.

The DG23-B2LA model delivers a mechanical lifecycle of one million operations, underpinning its robust quality and efficiency for extended use in automation and electrical safety circuits. It meets RoHS standards, ensuring compliance with environmental and safety regulations.

Commonly utilized in industrial automation, electronic devices, construction equipment, and electrical control panels, this micro switch provides precise control and safety functionalities. The switch is designed for surface mounting on PCBs via right angle terminals, optimizing space in compact electronic assemblies.

The micro switch supports a maximum switching current of 50mA for electrical circuits. It operates at an AC voltage rating of 125V, providing adequate power handling. Equipped with a hinge lever actuator offering reliable mechanical operation.

Constructed from polyphenylene sulphide housing material ensuring durability and compliance. Has an IP40 rating for protection against solid objects larger than 1mm. Designed to operate within a temperature range of -25°C to +85°C for varied environments.

Features silver-plated wiping contacts in a SPDT configuration for stable switching performance. Mechanical life expectancy of up to 1,000,000 operations delivers long-term reliability. Certified RoHS compliant and manufactured as part of the DG Sub-miniature series.
