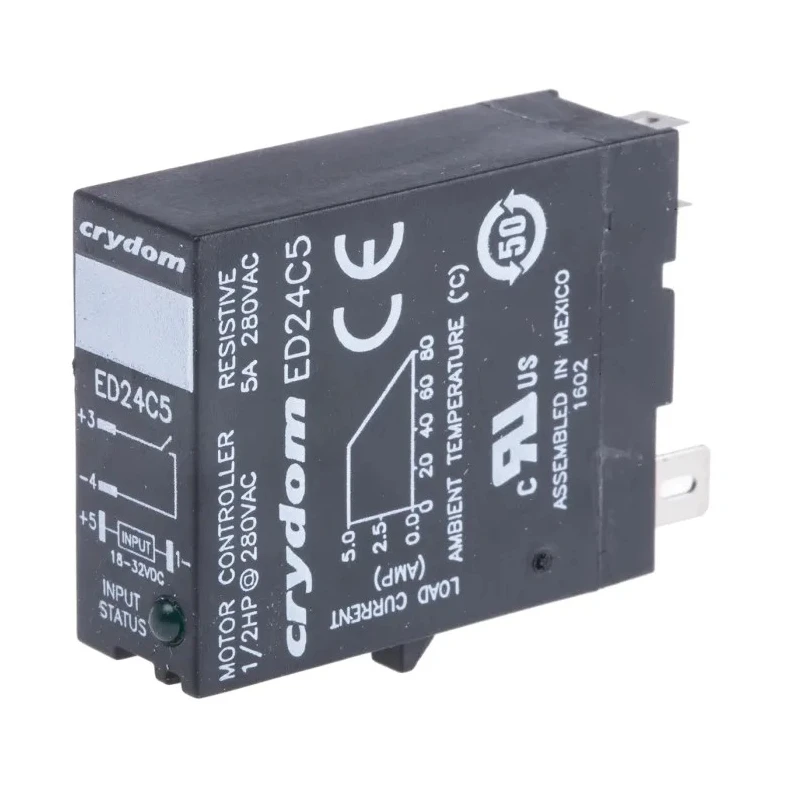

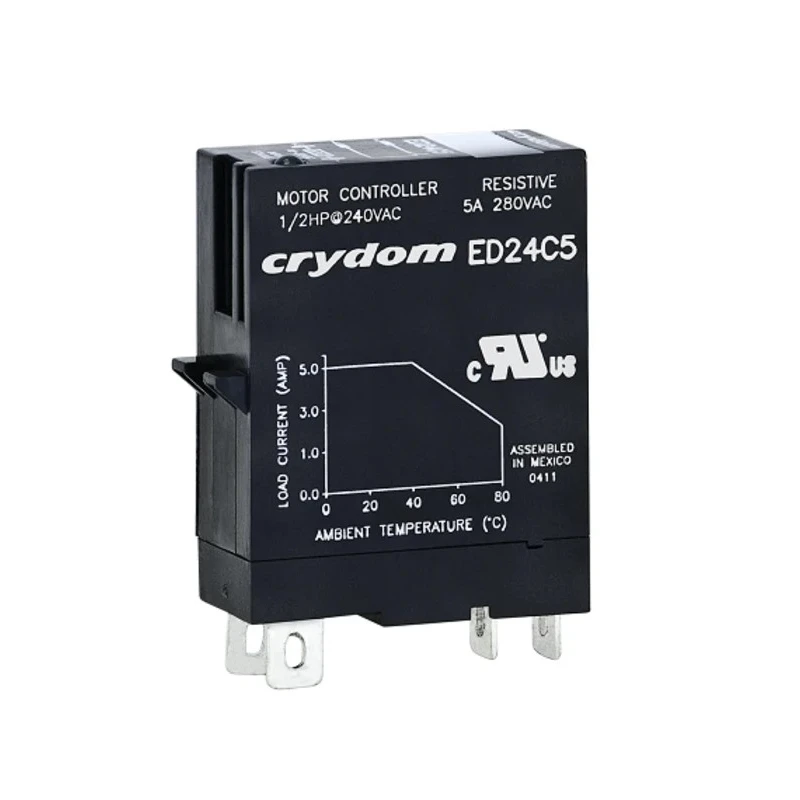

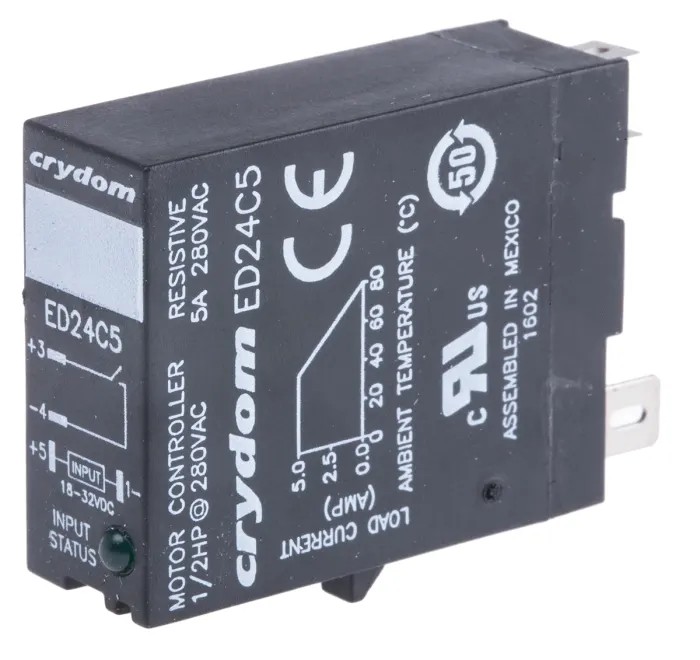

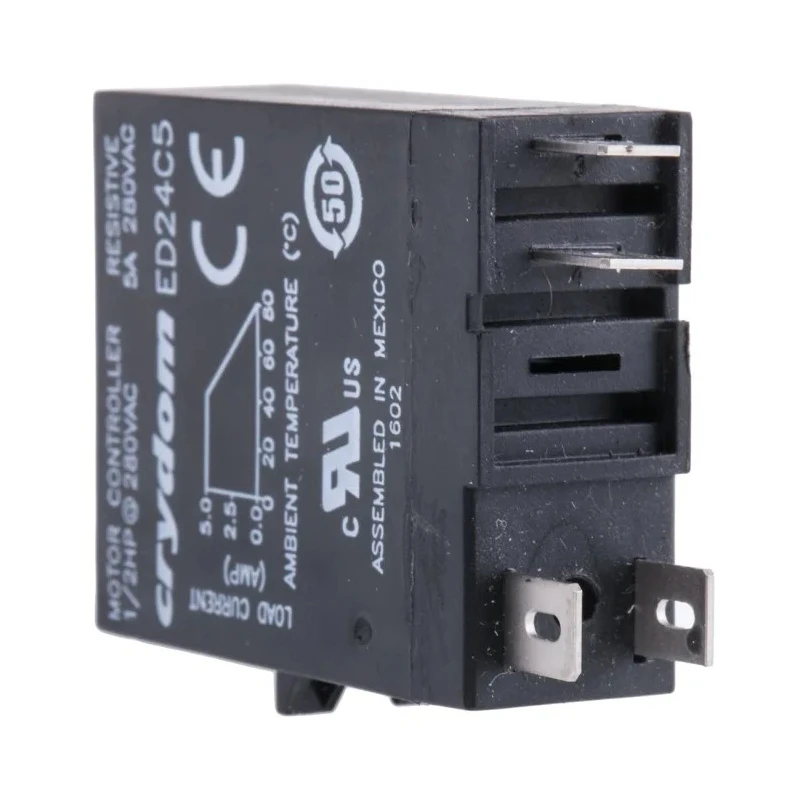

Crydom ED Series Solid State Relay, 5 A Load Current, 280 Vrms Load Voltage, 18 to 32 V DC Control Voltage, DIN Rail ED24C5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 37.4mm |
| Length | 29mm |
| Model | ED24C5 |
| Width | 12.7mm |
| Mount Type | DIN Rail |
| Output type | AC |
| Series | ED |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 5A |
| Standards/Approvals | CE, cUL, IEC Rated, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-1343Brand: CrydomManufacturers Part No.: ED24C5Distrelec Article No.: 13744556 |
| Minimum Control Voltage | 18V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.1mArms |
Key Features
- Rated maximum load current of 5 amperes ensures dependable switching performance.
- Supports maximum load voltage up to 280 Vrms for AC loads.
- Designed for control voltage range from 18V to 32V DC with LED status indicator.
- Compact dimensions of 29mm length, 12.7mm width, and 37.4mm height for space-efficient installation.
- Equipped with through-hole terminals and single-pole single-throw contact configuration.
- Zero-cross switching function reduces electrical noise and protects equipment.
- Operates reliably in a wide temperature range from -30°C to +80°C, suitable for harsh environments.
- Meets CE, cUL, IEC standards and RoHS compliance for industrial applications.
Product Description
The Crydom ED24C5 Solid State Relay offers a robust and compact solution for industrial automation and control applications requiring reliable AC load switching. Designed for DIN rail mounting and featuring a through-hole terminal construction, this relay supports a maximum load current of 5A and a maximum load voltage up to 280 Vrms. It operates with a DC control voltage range of 18V to 32V and utilizes zero-cross switching, which helps minimize electrical interference and prolongs equipment life.
The compact form factor with dimensions 29mm (L) x 12.7mm (W) x 37.4mm (H) enables easy integration into control panels and electrical automation systems with limited space. Its wide ambient operating temperature range from -30°C to +80°C makes it suitable for demanding industrial environments including manufacturing, HVAC systems, and automated machinery.
Equipped with an LED status indicator, monitoring and troubleshooting becomes straightforward, enhancing user experience and reducing downtime. The relay is compliant with CE, cUL, IEC standards, and RoHS directives, ensuring quality and environmental safety for industrial usage.
Rated for industrial automation, manufacturing, and HVAC applications. LED status indicator for easy operation monitoring. Durable design with no moving parts ensures long operational life. Compact footprint fits tightly in electrical enclosures.
Ideal for switching AC loads with minimal electromagnetic noise. Compliance with multiple international standards guarantees reliability.
Choose the Crydom ED24C5 Solid State Relay for efficient, silent, and reliable AC load control in industrial and commercial automation systems. Explore more Solid State Relay options in the Electronics & Electricals section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 5 amperes.
It supports a maximum load voltage of up to 280 Vrms for AC loads.
This unit operates with a control voltage range from 18V to 32V DC.
The dimensions are 29mm in length, 12.7mm in width, and 37.4mm in height.
It is designed for DIN rail mounting, making it suitable for compact installations.
The operating temperature range is from -30°C to +80°C.
This model features a single-pole single-throw (SPST) contact configuration.
It utilizes zero-cross switching, which helps minimize electrical noise.
It is equipped with through-hole terminals for easy connections.
This relay meets CE, cUL, IEC standards and is RoHS compliant.
It is suitable for industrial automation, manufacturing, and HVAC applications.
The off state leakage current is 0.1mArms.
