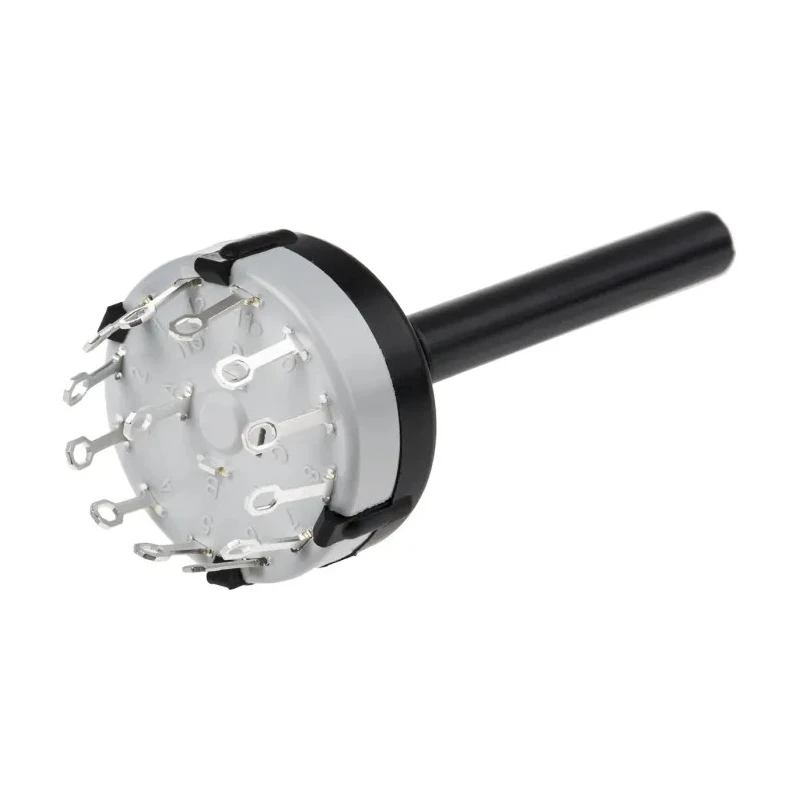

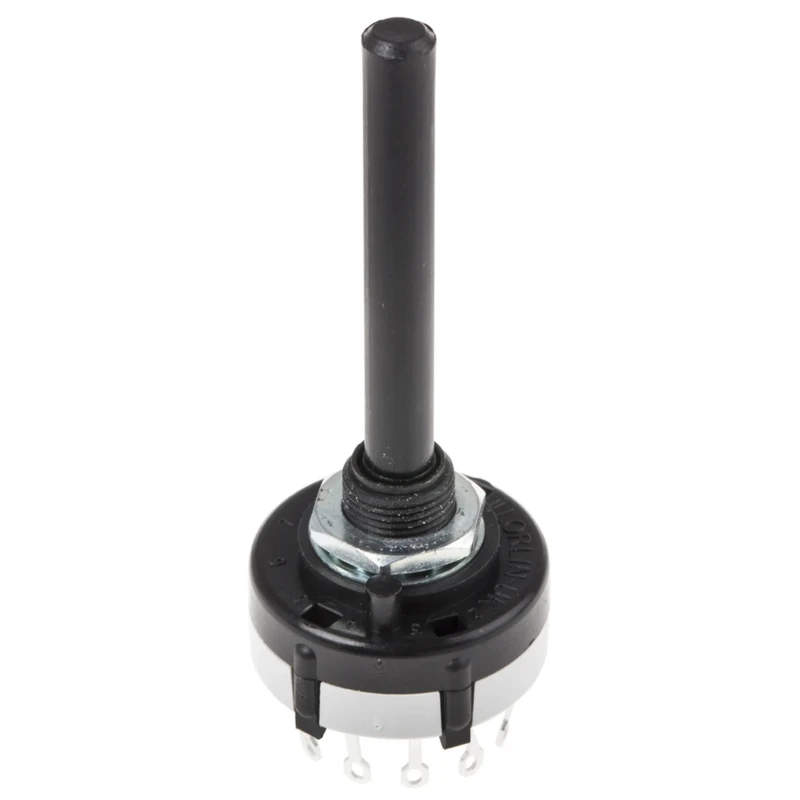

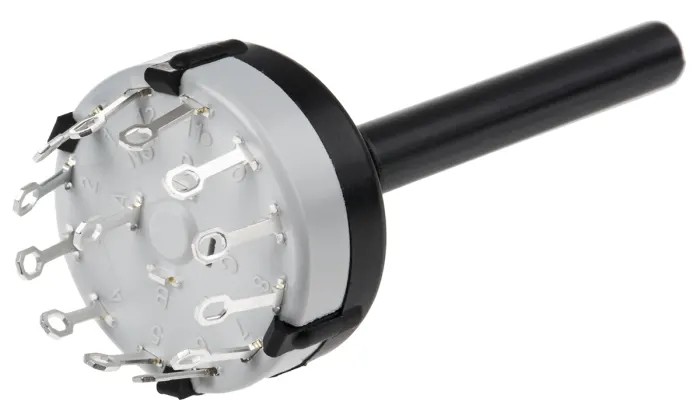

Lorlin CK 12 Position SP12T Rotary Switch 150mA Solder Tab SP12T
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 26.2mm |
| Brand | Lorlin |
| Dimensions | 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread |
| Height | 68.1mm |
| Model | SP12T |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Fibreglass Reinforced Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SP12T |
| Number of Positions | 12 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 13 |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 739-2930Brand: LorlinManufacturers Part No.: CK1028RSDistrelec Article No.: 30422898 |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
Key Features
- Single-pole 12-position rotary switch designed for panel mounting.
- Contacts rated for 150mA at 250V AC/DC for reliable operation.
- Fibreglass reinforced polyamide housing ensures durability and high insulation.
- Supports operating temperatures from -30°C to 85°C for versatile environments.
- Mechanical lifespan of 10,000 cycles provides long-term use.
- Features silver-colored actuator with a 6mm spindle diameter for easy knob mounting.
- Solder tab terminal type enables secure electrical connections.
- Complies with RoHS standards, ensuring environmental safety.
Product Description
Lorlin SP12T is a precision 12-position rotary switch from the CK series, designed for electrical and automation applications requiring reliable switching with a current capacity of 150mA at up to 250V AC or 24V DC. Its single-pole 12-position configuration makes it ideal for panel mounting in compact control systems.
The switch housing is made from fibreglass reinforced polyamide, providing robust mechanical strength and excellent insulation properties. With dimensions of 27.5mm by 27.5mm width and depth, 68.1mm height, and a 26.2mm diameter body, it fits suitably in constrained spaces.
Designed to operate reliably across a temperature range of -30°C to 85°C, this rotary switch withstands various environmental conditions. Its mechanical life of 10,000 cycles ensures longevity in industrial use cases such as electrical automation, instrumentation, and control panels.
The actuator is silver-colored and extends from a 6mm diameter spindle designed for knob mounting, supported by an 8mm long bush with M10x0.75mm thread for secure installation. The solder tab terminals offer straightforward electrical connection.
This rotary switch features a 90° angle of throw and complies with RoHS environmental directives. It includes options for shorting MBB (make-before-break) or BBM (break-before-make) contacts, accommodating different circuit requirements.
Single-pole 12-position rotary switch. 150mA contact current rating at 250V AC/DC. Robust fibreglass reinforced polyamide housing. Compact size with 27.5mm width and depth. Operating temperature from -30°C to 85°C. Mechanical life of 10,000 cycles.
Silver actuator with 6mm spindle diameter. Solder tab terminal type for secure connections. RoHS compliant for environmental safety. Precise 90° angle of throw for control applications. This product is ideal for use in electrical, industrial automation, instrumentation, control panels, and related commercial applications.
Explore more products in the Rotary Switch category at EnvMart to find complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This rotary switch has a contact current rating of 150mA at a maximum voltage of 250V AC or 24V DC.
It operates reliably across a temperature range of -30°C to 85°C.
The switch measures 27.5mm in width and depth, and 68.1mm in height, with a diameter of 26.2mm for the body.
It features solder tab terminals, which enable secure electrical connections.
This model has 12 positions, allowing for versatile control in various applications.
The mechanical lifespan of this rotary switch is rated at 10,000 cycles.
The housing is constructed from fibreglass reinforced polyamide, providing robust mechanical strength and insulation.
Yes, it complies with RoHS standards, ensuring environmental safety.
The SP12T rotary switch features a 90° angle of throw, suitable for precise control applications.
This model is designed for panel mounting, making it suitable for compact control systems.
The actuator has a spindle diameter of 6mm, designed for easy knob mounting.
The country of origin for this rotary switch is the United Kingdom.
