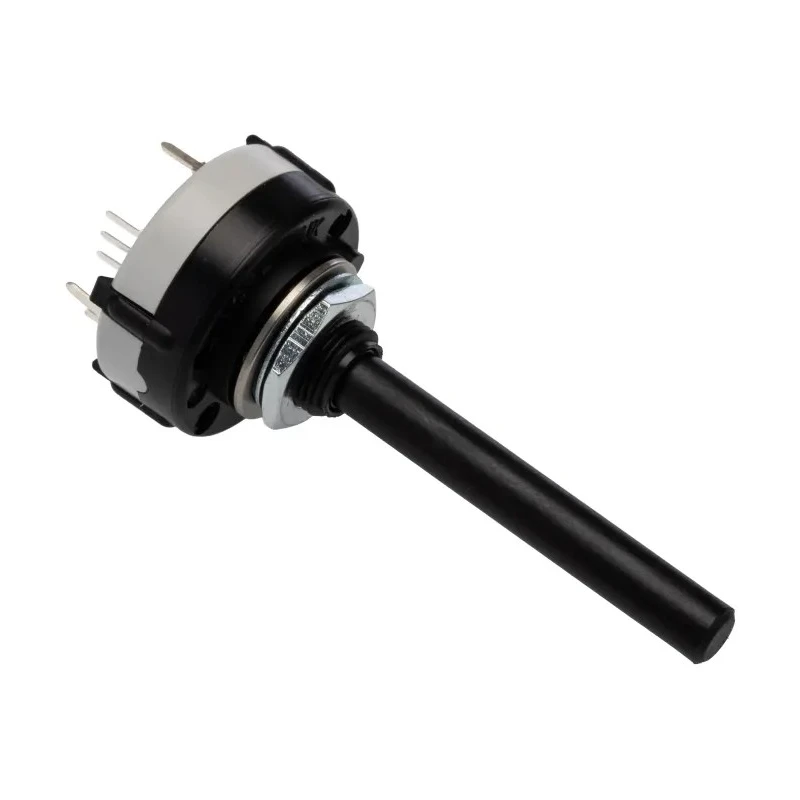

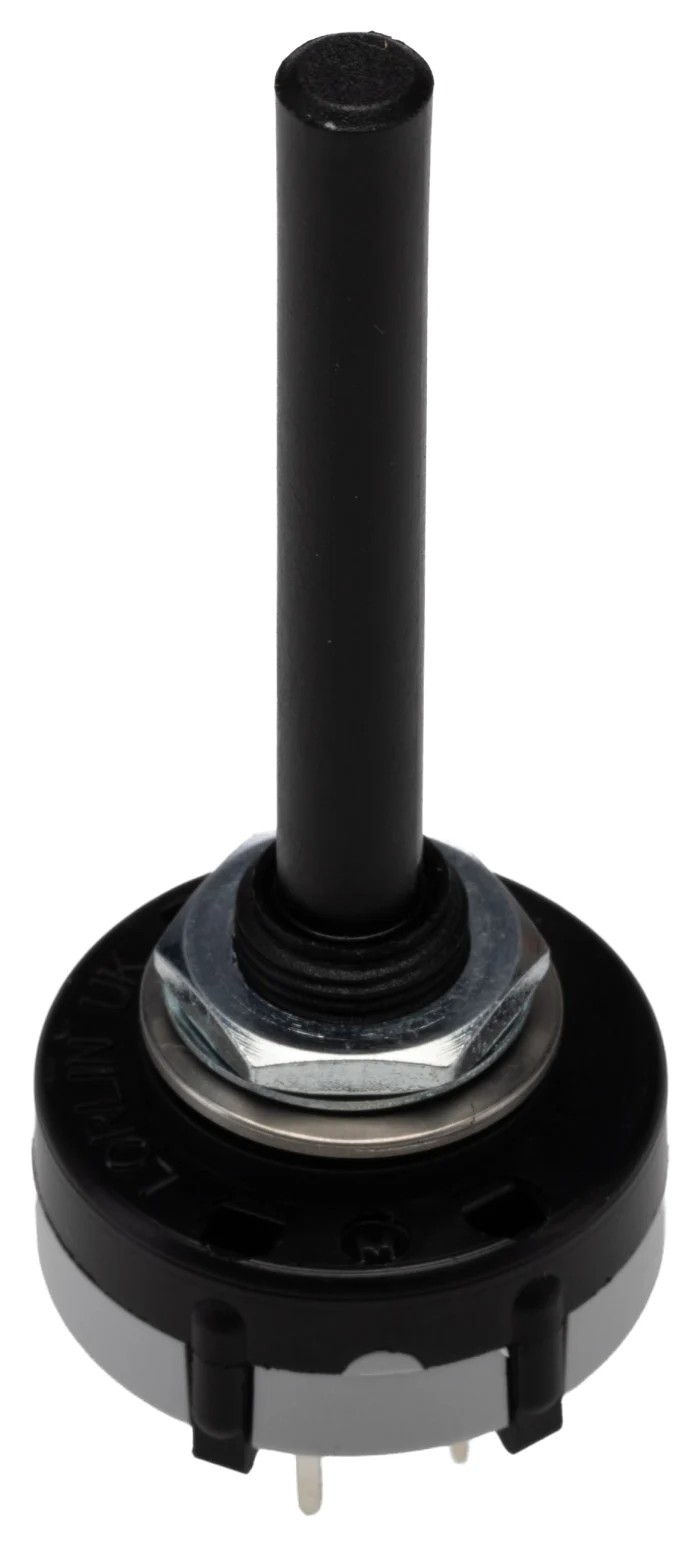

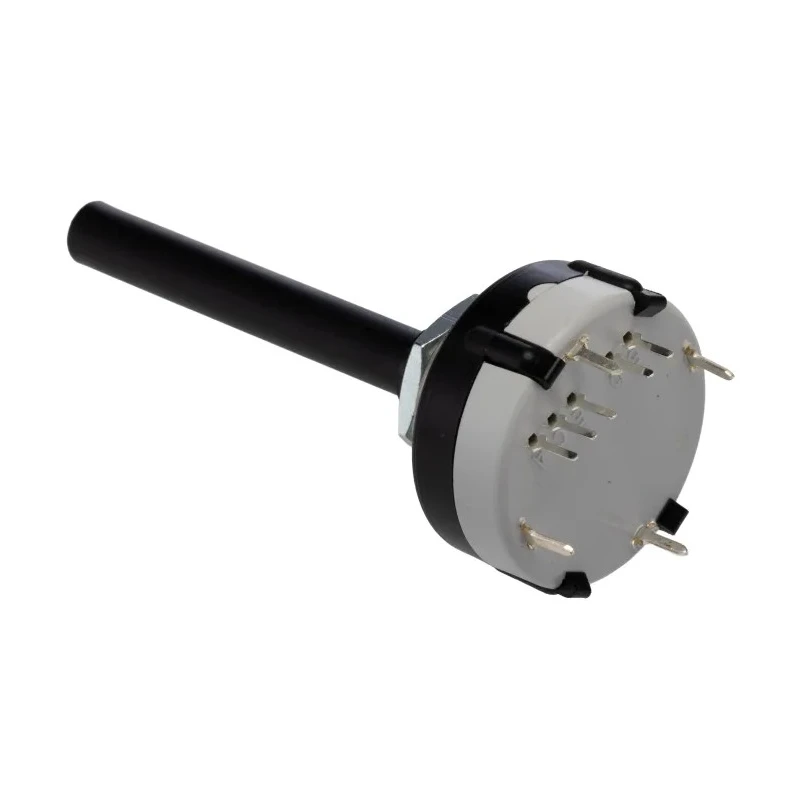

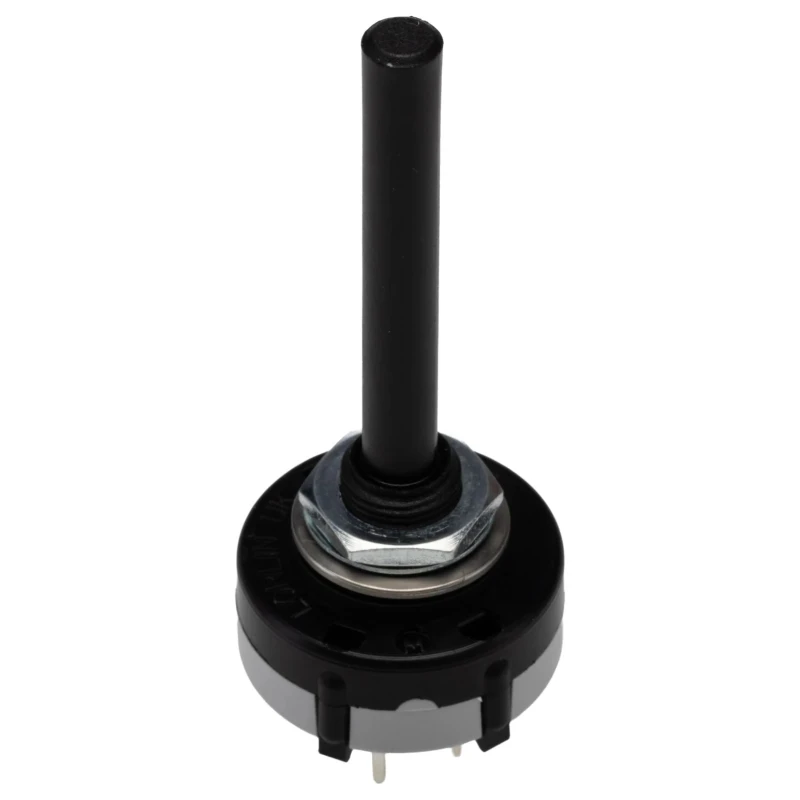

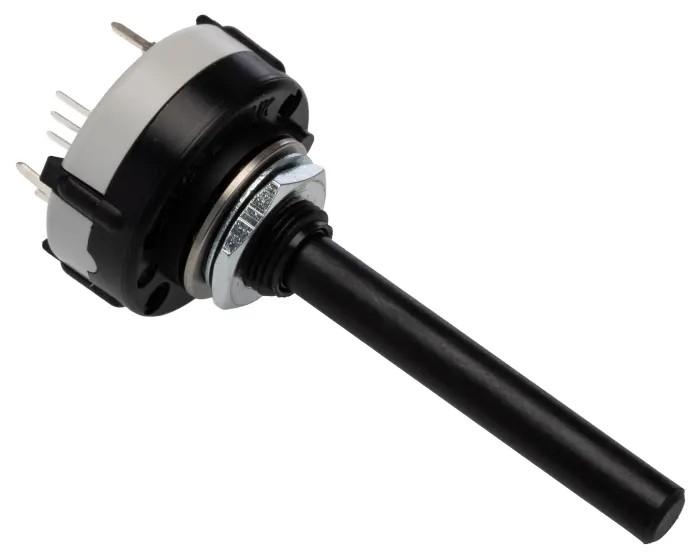

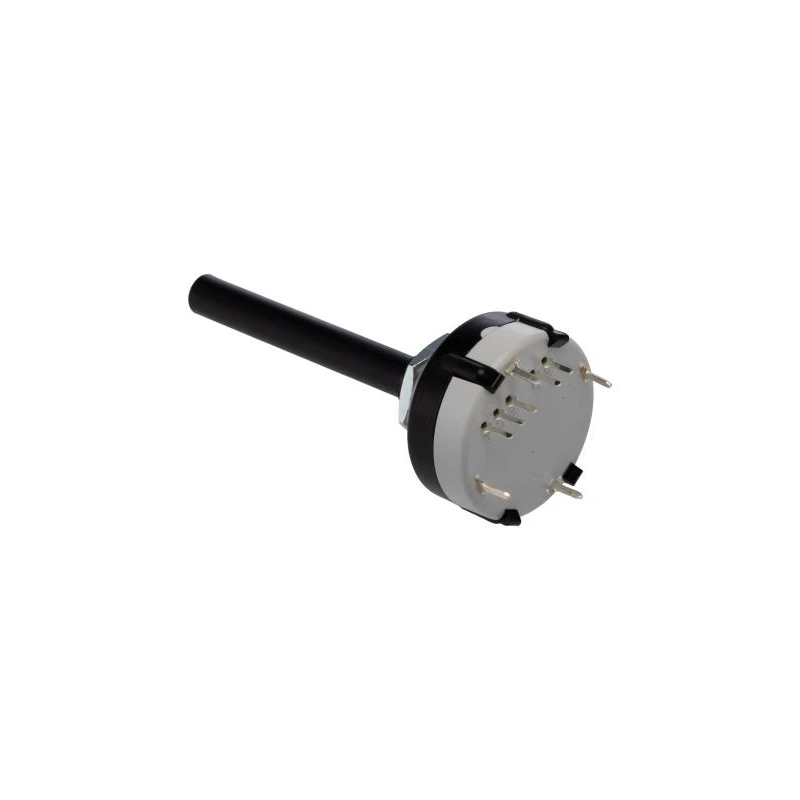

Lorlin CK 16 Position Binary Coded Rotary Switch 150mA 250V AC 24V DC IP65 Panel Mount BCKS1001RS

Lorlin BCKS1001RS is a highly durable 16 Position Binary Coded Rotary Switch designed for industrial and automation applications. It is panel mounted and features solder terminal types, making it easy to integrate into electrical control systems requiring precise position selection and binary coding.

This rotary switch supports a contact current rating of 150mA and can handle maximum AC voltages up to 250V and DC voltages up to 24V, suitable for low power control circuits. Its housing is made from fibreglass reinforced polyamide, offering excellent mechanical strength and long-term reliability in demanding environments.

The switch is sealed to an IP65 rating, providing protection against dust ingress and water jets, ideal for industrial, manufacturing, and automation settings where contamination can affect device performance. With a mechanical life of 10,000 cycles, it ensures sustained operation with minimal maintenance.

The actuator is silver colored and the switch features a 90-degree angle of throw, with a diameter of 26.2mm and overall dimensions approximately 68.1mm in height, 27.5mm width, and 27.5mm depth. It offers binary coded hexadecimal switching with 2.5º indexing, beneficial for digital control applications.

16 selectable positions with binary coded output for accurate signal interpretation. Panel mount type with robust fibreglass reinforced polyamide housing. Silver plated contacts ensuring high conductivity and corrosion resistance.

Adjustable stop or continuous rotation options for customization of positional limits. IP65 rating offers dust tight and water resistant protection. Operating temperature range from -30°C to 85°C suited for harsh conditions.

90° angle of throw for efficient switching action. Mechanical life of 10,000 cycles guarantees durability. Suitable for electrical automation, control panels, and signal switching applications.

This product is ideal for use in industrial automation, control panels, manufacturing processes, and other electronics & electrical sectors requiring reliable position switching with precise coding.
