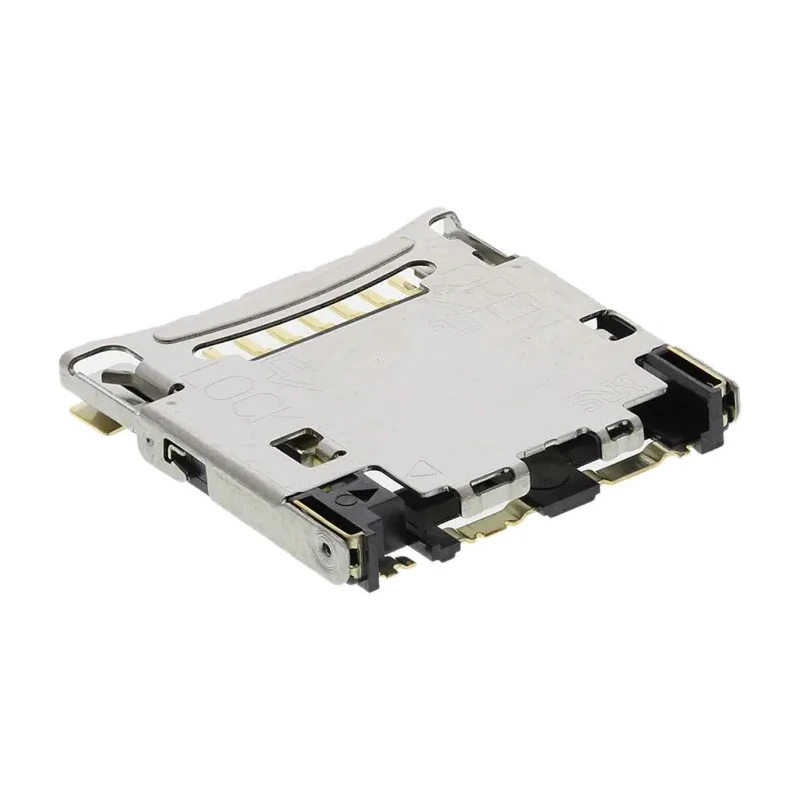

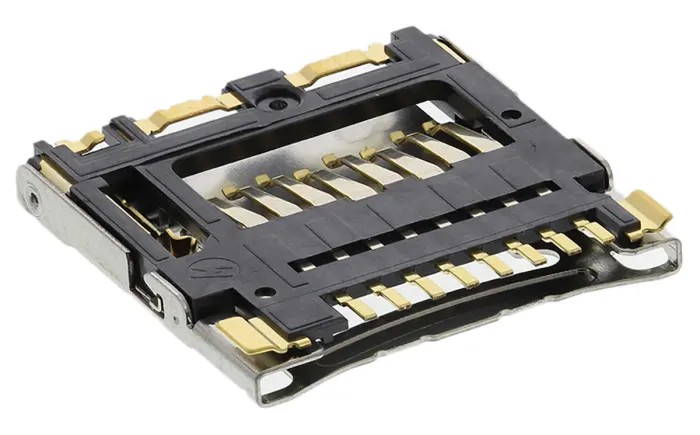

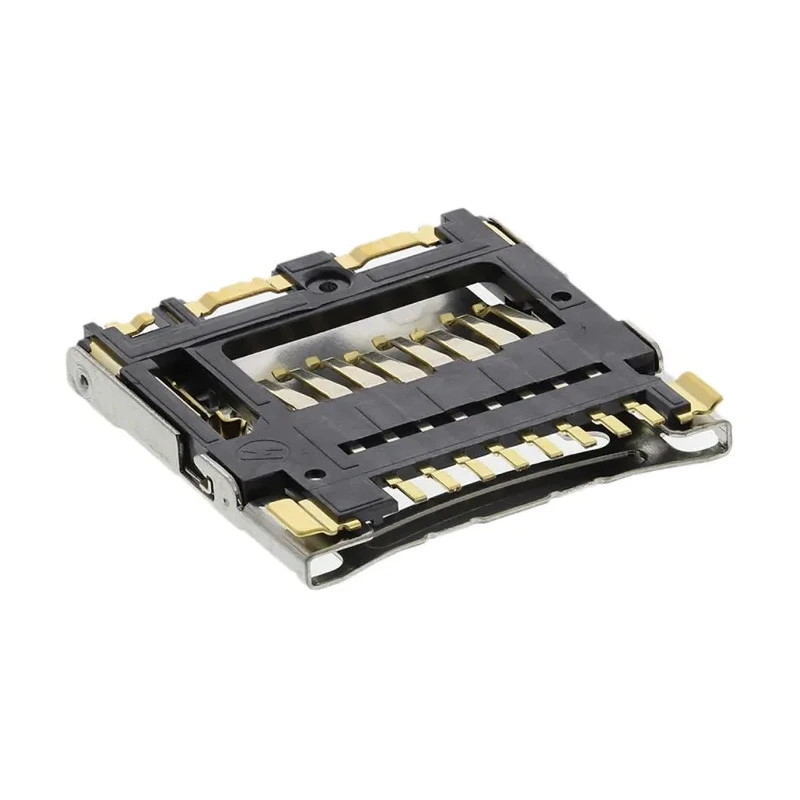

Hirose DM3 8 Way Right Angle Hinged MicroSD Memory Card Connector, Surface Mount, Gold Plated Contacts DM3C-SF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Right Angle |
| Model | DM3C-SF |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | DM3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1.1mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-8805 Brand: [Hirose](https://in.rsdelivers.com/brands/hirose)Manufacturers Part No.: DM3C-SF |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Card Type | MicroSD |
| Insertion/Removal Method | Hinged |
Key Features
- Compact design with 1.1mm pitch suitable for SMT mounting.
- Gold plated copper alloy contacts ensure reliable electrical connections.
- Hinged insertion/removal method provides secure card handling.
- Supports operating temperature range from -25°C to 85°C.
- Liquid Crystal Polymer housing with UL94V-0 rating for flame resistance.
- Reverse card insertion protection reduces risk of damage.
- Four grounding points on metal cover enhance EMI shielding.
- Normally Open card detection switch included for status monitoring.
Product Description
Hirose DM3C-SF is an 8-way right angle hinged female microSD memory card connector designed for surface mount technology (SMT) applications. It incorporates a gold-plated copper alloy contact material providing excellent conductivity and durability. This connector is part of the DM3 series, known for its compact external dimensions and rigid construction that meets demanding industrial and commercial electronic requirements.
The connector's hinged insertion and removal method allows safe and easy card handling, while the right angle orientation facilitates PCB layout optimization. The connector is housed in black Liquid Crystal Polymer (LCP), which is flame retardant to UL94V-0 standards and supports operation in temperatures ranging from -25°C to 85°C, suitable for a wide range of industrial, consumer electronics, and embedded systems applications.
Additional features include reverse card insertion protection to prevent damage from incorrect card insertion. Four contact points between the metal cover and PCB provide a secure ground connection, enhancing electromagnetic interference (EMI) protection, crucial for high performance electronic equipment. A normally open card detection switch is integrated, enabling system-level detection and status monitoring of card presence.
The connector is manufactured in Japan, adhering to strict quality controls and standards to ensure reliability in demanding environments. Compact 8-contact design with 1 row and 1.1mm pitch. High performance gold plated copper alloy contacts for long life.
Surface mount type with right angle orientation for efficient PCB space usage. Robust and flame-resistant LCP housing ensures durability. Wide operating temperature range from -25°C to 85°C enhances versatility. Built-in card detection switch supports monitoring functionalities.
Reverse insertion protection safeguards connector and card integrity. Strong EMI shielding via grounded metal cover enhances signal integrity.
This Hirose DM3C-SF connector suits electronic design engineers developing consumer electronics, embedded devices, industrial controllers, and communication equipment requiring reliable microSD card interface. Explore the Memory Card Connector category for related components and accessories at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features gold-plated copper alloy contacts, which provide excellent conductivity and durability.
This model supports an operating temperature range from -25°C to 85°C, making it suitable for various applications.
It utilizes a hinged insertion and removal method, allowing for safe and easy handling of the microSD card.
The DM3C-SF is designed for surface mount technology (SMT) applications.
This connector features a compact design with 8 contacts arranged in a single row.
The pitch size of this model is 1.1mm, which is suitable for compact PCB layouts.
The housing is made from Liquid Crystal Polymer (LCP), which is flame resistant and meets UL94V-0 standards.
It is designed to support microSD cards, making it suitable for various electronic applications.
The connector has four grounding points on the metal cover, which enhance electromagnetic interference (EMI) shielding.
Yes, it includes a normally open card detection switch for monitoring the presence of the card.
This connector is manufactured in Japan, adhering to strict quality controls and standards.
