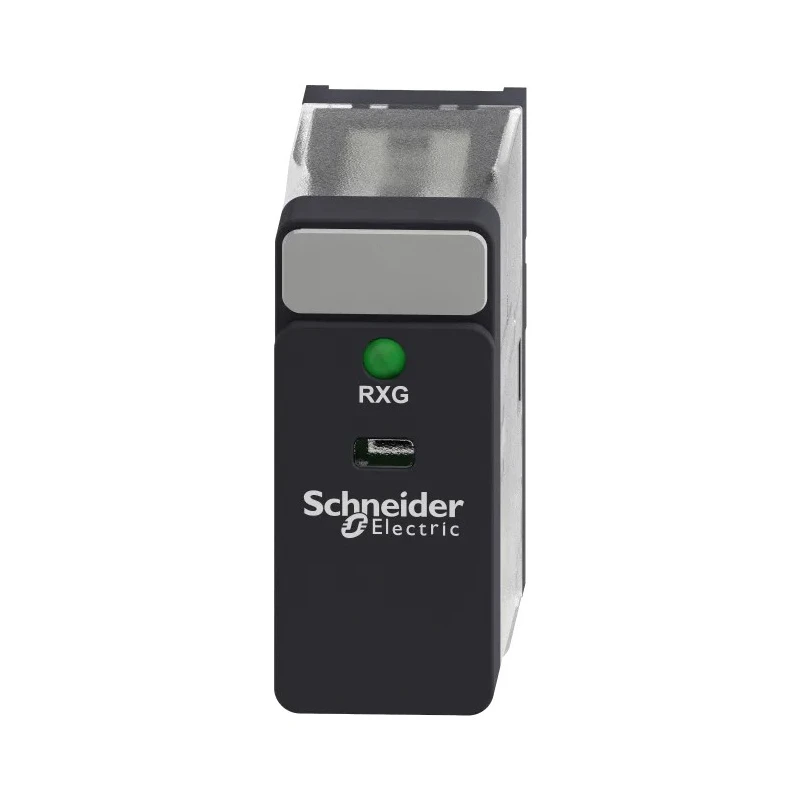

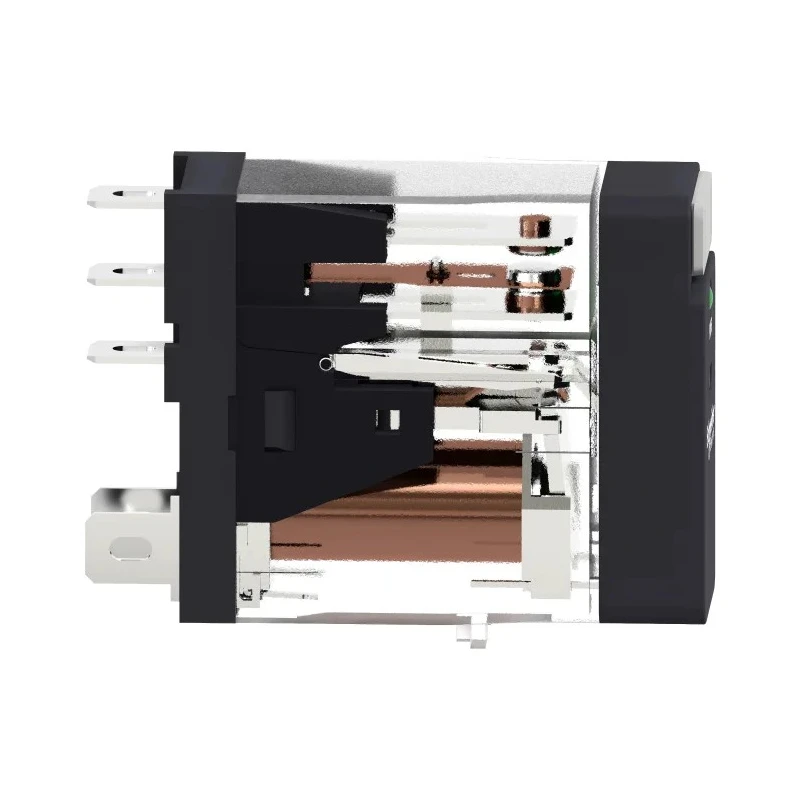

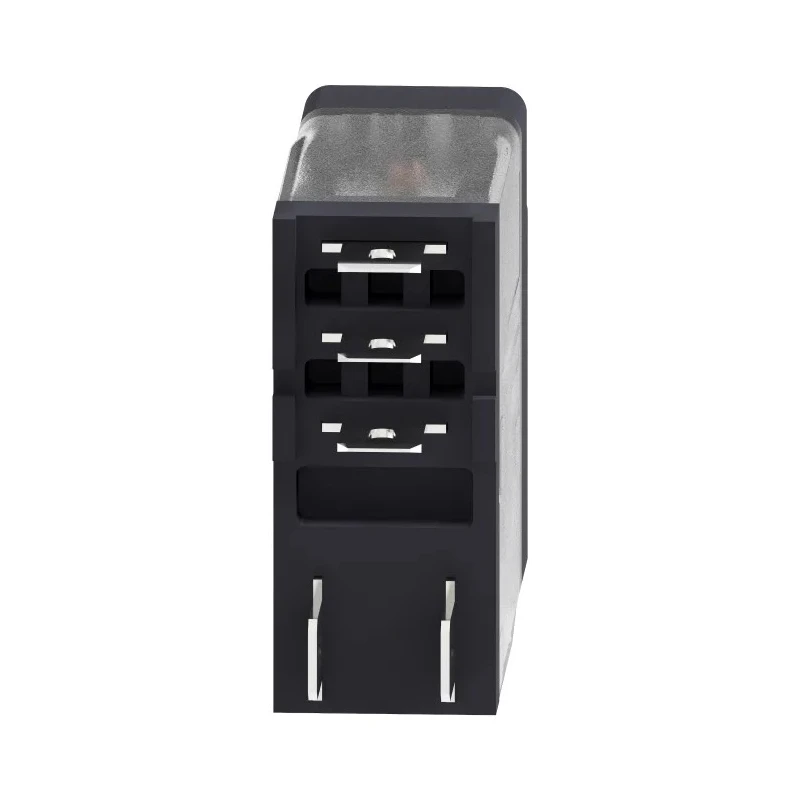

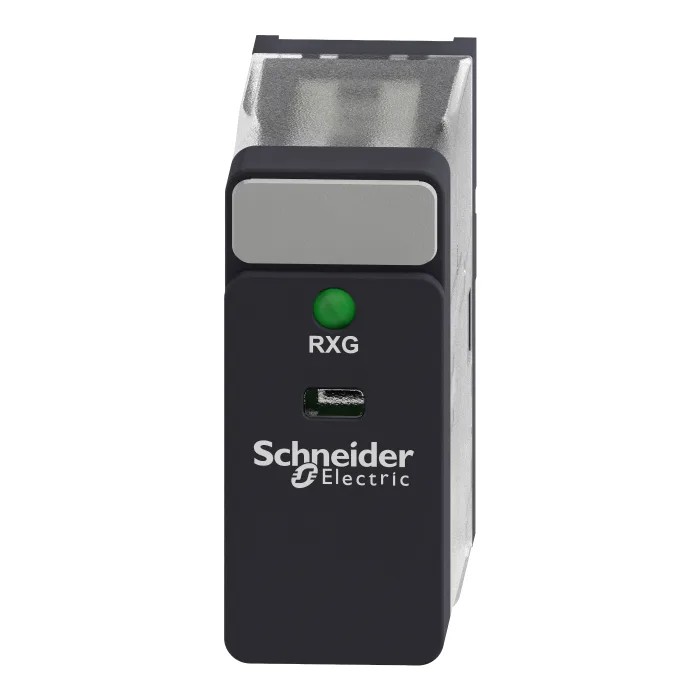

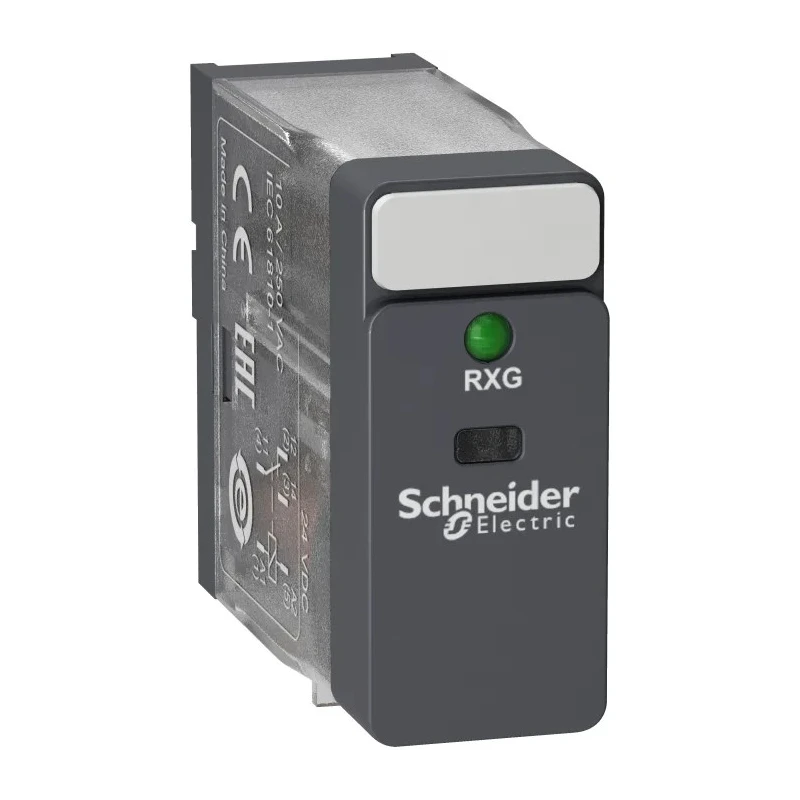

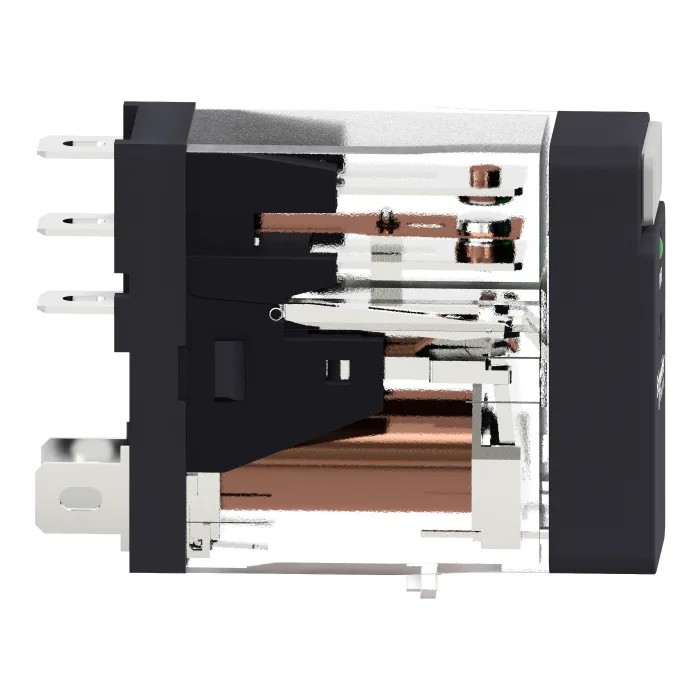

Schneider Electric Power Relay 24V dc Coil 10A Switching Current SPDT RXG13BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 37.1mm |
| Length | 13mm |
| Model | RXG13BD |
| Width | 30.6mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Features a plug-in terminal for easy installation.
- Operating temperature range from -40°C to 70°C ensures performance in harsh environments.
- Compact size of 13mm length, 37.1mm height, and 30.6mm width for dense PCB mounting.
- Mechanical durability rated at 10 million cycles for long product life.
- Switching voltage supports up to 250V AC and 30V DC applications.
- Low coil power consumption of 530mW for energy efficiency.
- Silver alloy contact material to ensure reliable conductivity.
- Designed with a green indicator to display operating status clearly.
Product Description
Schneider Electric RXG13BD power relay is engineered for industrial and commercial electrical switching, featuring a 24V DC coil and a switching current of 10A. Designed as a Single Pole Double Throw (SPDT) relay, it provides precise control for automated systems and PLCs. The plug-in terminal design facilitates quick installation and replacement on printed circuit boards.
This relay operates reliably across a wide temperature range from -40°C to 70°C, making it suitable for demanding environments such as automated assembly lines, medical imaging equipment, automatic doors, and transportation industry systems. Its compact dimensions (13 mm length, 37.1 mm height, 30.6 mm width) help conserve PCB space in densely packed configurations.
With a mechanical endurance of 10 million cycles, the RXG13BD series offers long-term durability, complemented by low coil power consumption of 530mW. The switching power supports up to 250V AC and 30V DC voltages, making it versatile for various industrial electrical applications. Silver alloy contacts provide excellent conductivity and a contact resistance of 100 milliohms ensures low signal loss.
Plug-in terminal facilitates easy installation and maintenance. Compact sizing optimizes space on PCBs. Wide operating temperature ensures suitability in diverse environments. High mechanical durability extends service life.
Energy-efficient coil power of 530 milliwatts. Green indicator displays relay operational status clearly. Silver alloy contact material enhances electrical performance. Compliance with CSA and CE ensures product quality and safety.
Lightweight design reduces installation strain.
This Schneider Electric power relay is ideal for industrial automation, control systems, and other applications demanding reliable switching performance. With its robust features and approvals, it fits applications ranging from factory automation to transportation. For further details and additional product options visit EnvMart’s wide selection of Power Relays and control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXG13BD power relay has a switching current rating of 10A.
This model operates with a coil voltage of 24V DC.
The dimensions are 13mm in length, 37.1mm in height, and 30.6mm in width.
It supports a maximum switching voltage of 250V AC and 30V DC.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range is from -40°C to 70°C.
It has a mechanical durability rating of 10 million cycles.
The RXG13BD is designed with a plug-in terminal for easy installation.
The coil power consumption is 530mW, which contributes to its energy efficiency.
The contacts are made of silver alloy, ensuring reliable conductivity.
This relay complies with CSA and CE standards, ensuring product quality and safety.
It is suitable for industrial automation, control systems, and various applications requiring reliable electrical switching.
